3 Layers Co-Extrusion CPE TPE Film Cast Embossed Film Extrusion Machine

=== Base Info ===

=== Description ===

Basic Info.

Model NO. HT-1500 Assembly Structure Separate Type Extruder Screw Multi-Screw Engagement System Non-Intermeshing Screw Channel Structure Non Deep Screw Exhaust Don′t Exhaust Automation Non-Automatic Computerized Computerized Color Customized Brand Customized Transport Package Wooden Case, Stretch Film Wrapped Specification 9.0*3.5*2.5 Trademark Hengtuo Origin Ruian Zhejiang China HS Code 84778000 Production Capacity 50

Product Description

HT-1000/1500 stretch film extrusion line,
                       cast film making machine,
                      cling film making machine
What is the details of our Stretch Film Extruding Machine

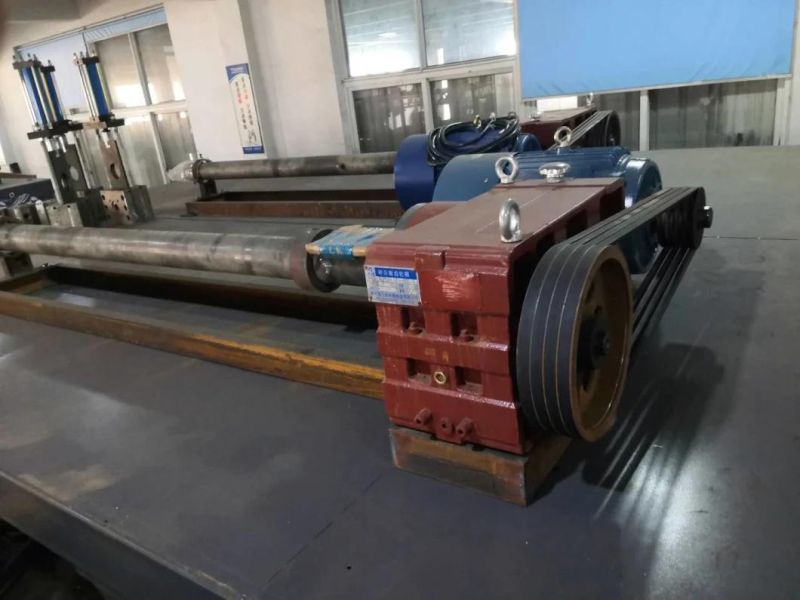

1. To ensure good plasticization and high quality and high output, special mixing refining design is adopted in the machine's alloy screw which consists of import static state mixer.
2. The bi-directional loop design and helix runner inside cooling steel roller are adopted to stable the temperature on the surface of the roller.
3. The machine is easy to test and adjust the thickness of film, the Slitter could be changed without stopping the machine.
4. The winding system applys air knife online device, which can automatically cut the film in different width quickly.
Main Technical Variables

Item/Model	1000mm	1500mm
Screw diameter(mm)	55/70	70/90
L/D ratio of screw (L/D)	30:1	30:1
width of die head (mm)	1250	1850
Width of finished products(mm)	1000(500*2roll)	1500(750*2roll)
Thickness of finished products (mm)	0.01-0.03	0.01-0.03
Structure of film layers	A/B	--
Max output (kg/h)	100	180
Linear speed of machinery (m/min)	50-100	50-100
Total power (KW)	120	160
Overall dimensions (L*W*H)m	10*4*3	11*4.5*3
Weight (T)(About)	6	12



 Company Information

RUIAN HENGTUO MACHINERY CO.,LTD. located in Ruian City, Zhejiang Province,China.is an innovative enterprise which integrates packaging machinery with professional scientific research and development, design and manufacturer, sales and after-sales service.

Main products: Three layer co extrusion stretch film making machine, Double extruder stretch film making machine, single extruder stretch film making machine, bubble film making machine, compound bubble film making machine, film blowing machine, printing machine, bag making machine etc.






Packaging & Shipping
As export standard pallet, the material of pallet is stainless steel pipe the surface of each part of machinery covered film together with one set of packing list in English wooden crate: under fumigation treatment. Together with one set of packing list in English partial shipment allowed container shipment allowed before delivery, we will send the dimension & weight of machinery to customer to help them choose


 1. Within 45-60 workding days after receipt of deposit.
  2. Stretch film packing, easy damage part put in wooden box.
  3. By sea

Our Services
1.Installation Services
   Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.

2.Clients Traning Services
    We can train your staff to use your film blowing equipment systems properly. It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
