11cm Narrow LDPE Plastic Film Extruding Machine

=== Base Info ===

=== Description ===

Basic Info.

Model NO. FB-B Automation Automatic Computerized Computerized Machine Weight 4T Certification CE, ISO9001:2008 Screw 1set Embossing Roller Yes Traction Section 2 Sets Take up Lift Type Heating Ring Cast Aluminum Winder Double Stations Winding Roller Air Shaft Roller Corona Treater Optional Transport Package Wooden Cases Specification CE, ISO9001 certificate Trademark HOIN Origin Ruian, Zhejiang, China HS Code 8477309000 Production Capacity 30 Set/Month

Product Description

A: Description
The cylinders and the screw stems of the extruder are made of high quality
alloy steel with optimum hardness and strong corrosion resistance after nitrogen treatment and precision finishing. The auxiliary machine has a plat from working table for making operation easy and is equipped with bubble stabilizing ring.
Double-rolling and double-cutting coiling unit adopts torque motor to motor to
keep proper tension and make even and roll-changing easy.
USAGE:
It is used for blowing the various plastic film of low density polyethylene
(LDPE), high density polyethylene (HDPE) and linear low density polyethylene
(LLDPE) etc, which are widely used for packing liquid, industrial products,
Garments and textile, Eat. And printing lamination.
B: Technology Parameter

Model	FB-A-800	FB-A-1000	FB-A-1200
Screw Diameter	55mm	60mm	65mm
Screw Ratio	L/D28:1	L/D28:1	L/D28:1
Screw Speed	10-100r/min	10-100r/min	10-100r/min
Max. Extrude Output	50kg /h	65kg /h	70kg /h
Power of Main Motor	15KW	18.5KW	22KW
Specification of Die Head	φ80/φ160mm	φ120-φ220mm	φ130-φ250mm
Rotational Mode of Die Head	Continuous Rotation	Continuous Rotation	Continuous Rotation
Single-side Thickness of Film	0.01 -0.10mm	0.01 -0.10mm	0.01 -0.10mm
Max. Folding Width of Film	800mm	1000mm	1200mm
Total Power	26Kw	30Kw	42Kw
Weight of Machine	3600kg	4200kg	5000kg
Overall Dimension(L×W×H)	6000×2200× 4000mm	6500×2400× 4500mm	6800×2600× 4800mm

C: Details Information

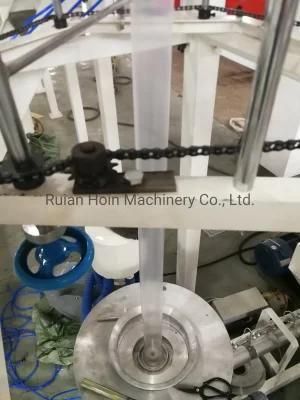

1. Extruder Unit
Die Head Material: Cr40 Mould Steel
Die Head Heating: 2 Zones
Rotary Die Head: Optional
Screw and Barrel Material: 38CrMoALA
Screw and Barrel Heating:3Zones*3Sets
Heating Ring Material: Cast Aluminum
Screen Changer: Manual Type
Gear Box: Hard Tooth Surface Gear Box

2. Take Up Section
'A' Shape Film Forming Plate: Wooden Bar Type
Film Bubble Setting Ring: Wooden Bar Type
Take Up Motor:Three-Phase Asynchronous Motor with Worm Gear Reducer
Take Up Rollers Grasp: Air Cylinder
3. Winder Unit
Second Take Up Unit: Air Cylinder
Rewinding Station: Double Stations
Rewinding Motor: Torque Motor
Pinch Roller: Air Shaft Roller

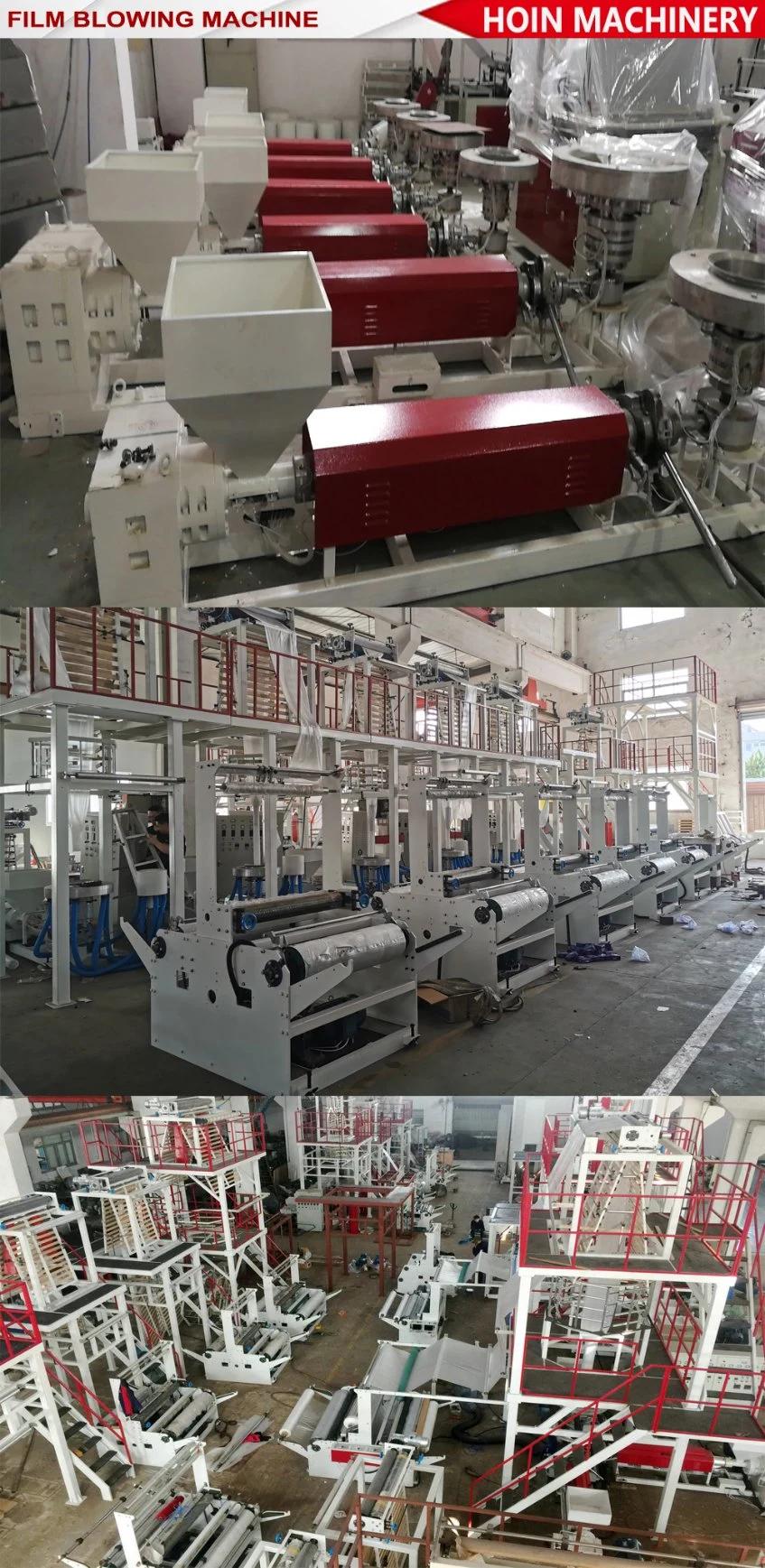

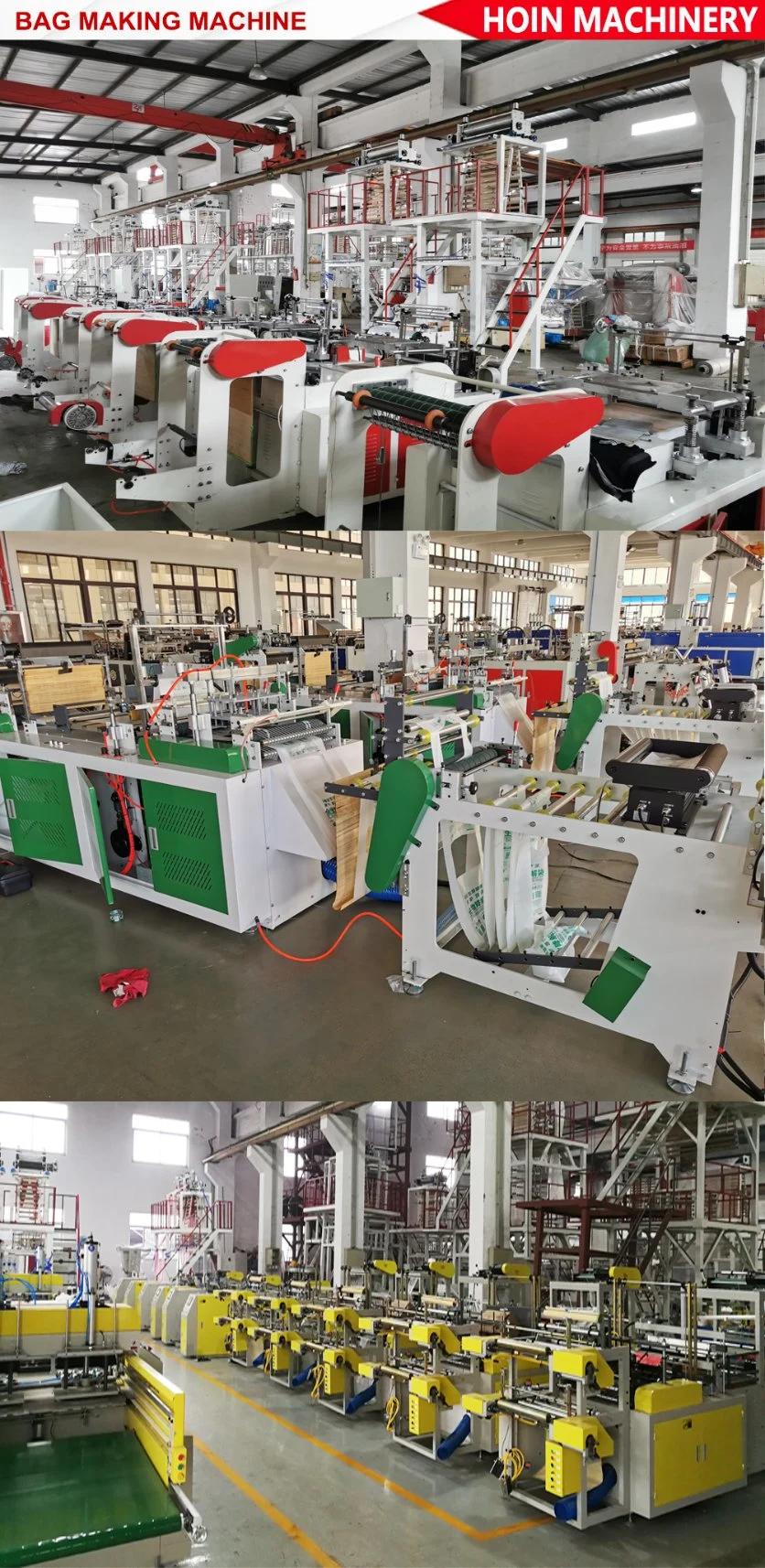

Workshop of HOIN

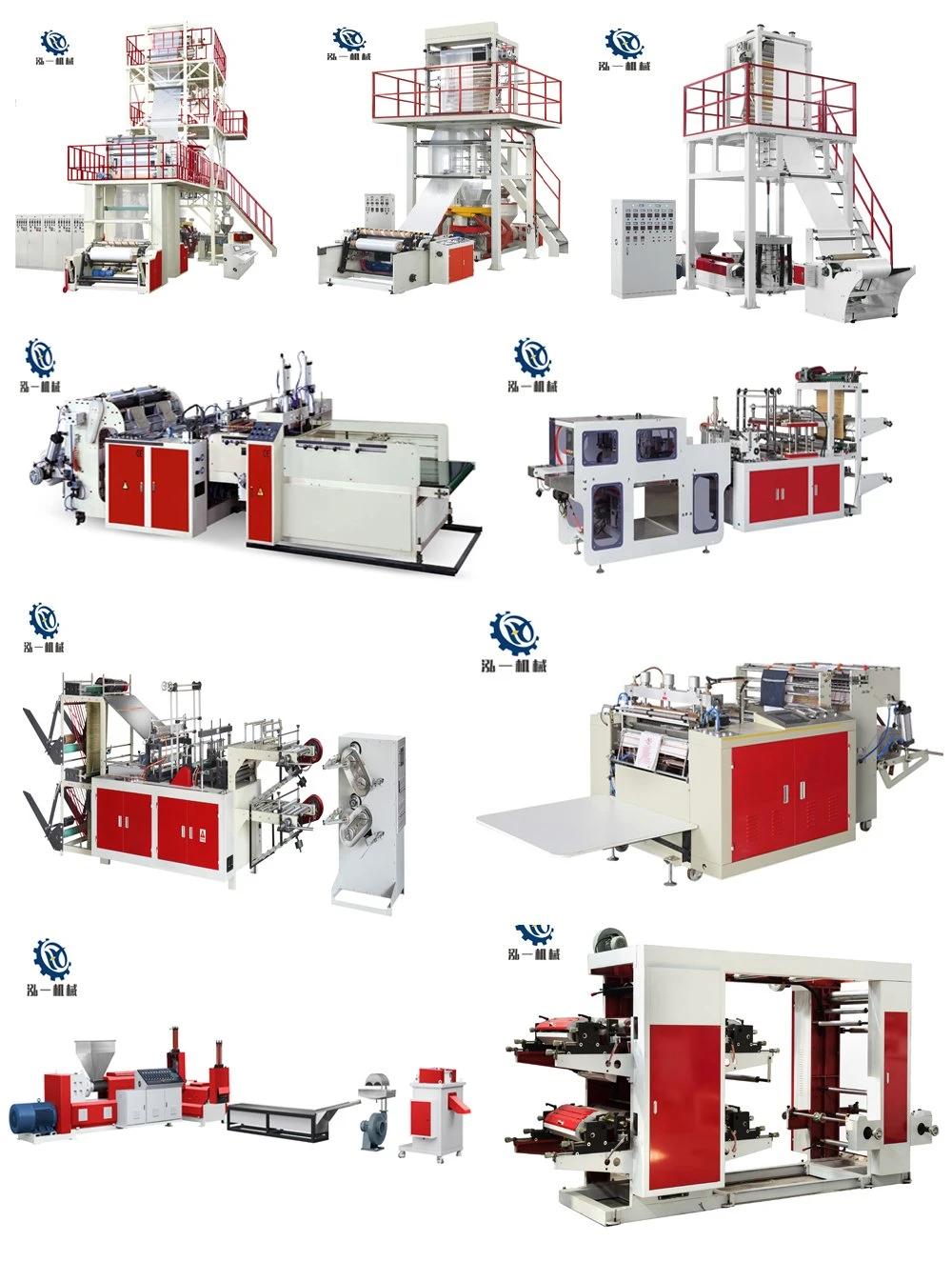

More Products Optional:
After service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We will still offer you our best after service, and need you to afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
