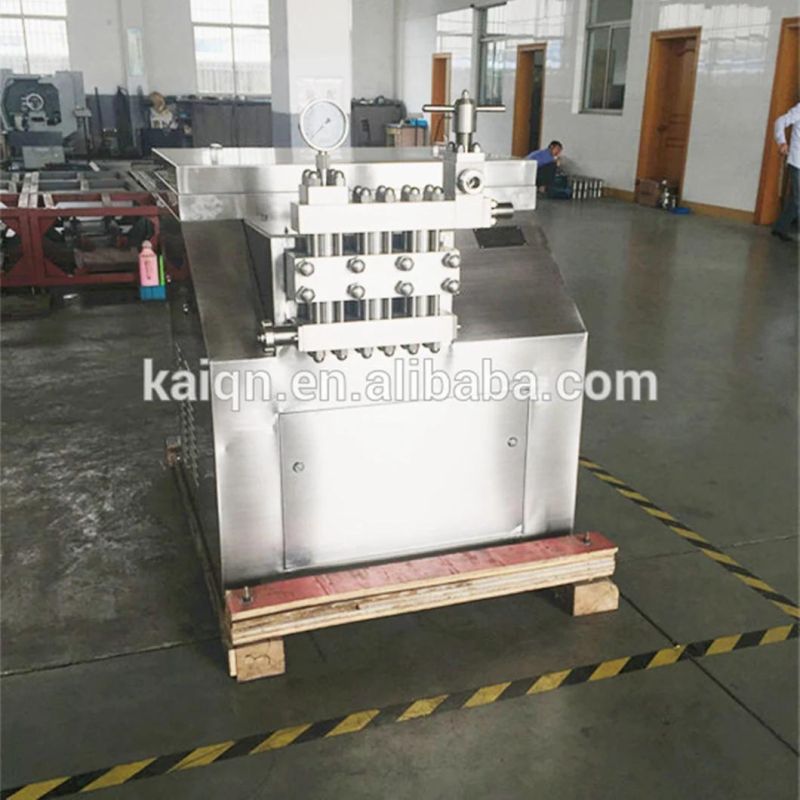

1000L Stainless Steel Yogurt Fruit Juice Ice Cream Homogenizer Factory

• After-sales Service：Online Service
• Warranty：One Year
• Process：Mild Processing
• Power Source：Electric
• Certification：CE, ISO9001
• Automatic Grade：Automatic

=== Base Info ===

• Model NO.：GJB Series
• Application：Milk, Dairy, Milk, Juice, Beverage
• Customized：Accept
• Name：1000L Stainless Steel Yogurt Fruit Juice Ice Cream
• Product Material：Stainless Steel 304,316
• Capacity：500L,H--10000L,H
• Pressure：250bar to 700bar
• Motor Brand：Siemens ,ABB,China Brand
• Certificate：CE Certificate
• Homogenizer Appication：Milk, Juice, Beverage, Butter, Honey, Cream
• High Pressure Homogenizer：Customized Electricity Motor
• Homogenizer Pressure：Two Stage
• Delivery：10 Days
• Packing：Wooden Box
• Sapre Parts：Avaiable
• OEM：Yes
• Motor：Siemens ,ABB,China Brand
• Sparts：Available
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

=== Description ===

Basic Info.

Model NO. GJB Series Application Milk, Dairy, Milk, Juice, Beverage Customized Accept Name 1000L Stainless Steel Yogurt Fruit Juice Ice Cream Product Material Stainless Steel 304/316 Capacity 500L/H--10000L/H Pressure 250bar to 700bar Motor Brand Siemens /ABB/China Brand Certificate CE Certificate Homogenizer Appication Milk, Juice, Beverage, Butter, Honey, Cream High Pressure Homogenizer Customized Electricity Motor Homogenizer Pressure Two Stage Delivery 10 Days Packing Wooden Box Sapre Parts Avaiable OEM Yes Motor Siemens /ABB/China Brand Sparts Available Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

1000L Stainless Steel Yogurt Fruit Juice Ice Cream Homogenizer Factory




 Tea drinks homogenizer, juice homogenizer

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
Series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.



The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
1000L Stainless Steel Yogurt Fruit Juice Ice Cream Homogenizer Factory .
