Fresh Palm Fruit Extraction Oil Plant, Palm Oil Pressing Machine

Shenzhen Xiangfeizhu Technology Co., Ltd. / 2022-07-05

Fresh Palm Fruit Extraction Oil Plant, Palm Oil Pressing Machine

  • Warranty:One Year
  • Raw Material:Fresh Palm Fruit
  • Function:Extract Palm Oil
  • Transport Package:Container
  • Specification:up tp production capacity
  • Trademark:Huatai

=== Base Info ===

  • Origin:China
  • HS Code:8479200000
  • Production Capacity:5-100t,H

=== Description ===

Basic Info.

Origin China HS Code 8479200000 Production Capacity 5-100t/H

Product Description

Fresh Palm Fruit Extraction Oil Plant, Palm Oil Pressing Machine

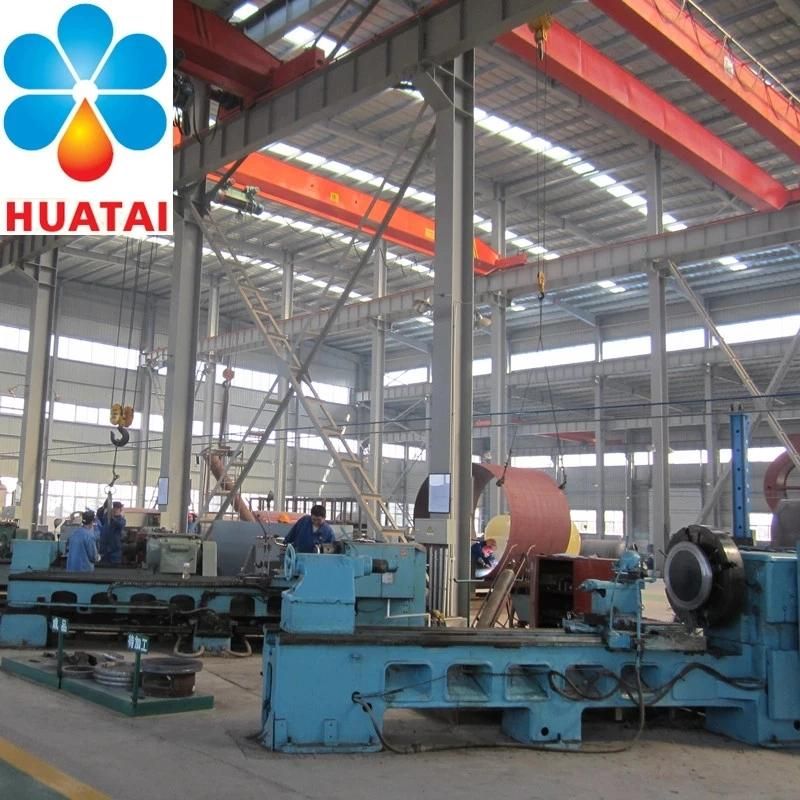

Our company can undertake 5-100T/H palm oil project, including engineering design, equipment manufacturing technical services, product research and development etc.There are 8 workshops and hundreds of projects in our company. We offer oil machines with excellent quality, advanced technology and best after-sale service, including installation, commissioning, training workers to operate machines. If you have any questions, pls contact with us by phone or email. We will solve it for you asap.
Fresh Palm Fruit Extraction Oil Plant, Palm Oil Pressing Machine
Palm Fruit Pressing Process Description
The palm oil is contained in palm pulp, the pulp is high moisture content and rich lipase. Usually we adopt the method of press to produce it, and this technology is very mature. Before press , Fresh fruit bunch will be taken sterilizer and thresher pretreatment : After weighting the FFB , it is loaded the FFB conveyor by loading ramp, then the FFB will convey to the vertical sterilizer. FFB will be sterilized treatment in sterilizer, the FFB will be heated and sterilized treatment for several time to avoid the lipase be hydrolyzed , after sterilizer ,the FFB is distributed bunch conveyor by the mechanical bunch feeder and enter the thresher machine which separate the palm fruit and bunch , for the empty bunch ,it is conveyed empty bunch loading platform and transport it to outside the factory area at fixed period , the empty bunch could be used as fertilizer and repeat use ; The palm fruit which has passed sterilizer and thresher processing should be sent to digester and then go to special screw press to get the crude palm oil (CPO) form the pulp . But the pressed palm oil contain a lot of water and impurity which need to be clarified by sand trap tank and treated by the vibrating screen ,afterward the CPO will be sent to clarification station treatment section . For the wet fibre cake which be produced by screw press, after separating nut, it will be sent to boiler house to burnt.

Fresh Palm Fruit Extraction Oil Plant, Palm Oil Pressing Machine

The wet fiber cake contain wet fiber and wet nut, the fiber contain about 6-7% oil and fat and a few of water .Before we produce the nut, we should separate the nut and fiber . Firstly, the wet fiber and wet nut enter the cake breaker conveyor to be cracked, and mostly of the fiber should be separated by pneumatic fiber depericarper System. The nut, little fiber and big impurity will be further separated by the polishing drum. The separated nut should be sent to nut hopper through the pneumatic nut transport system, and then adopt the ripple mill to crack the nut, after cracking , most of the shell and kernel will be separated by cracked mixture separating system, and the rest of mixture of kernel & shell enter to the special clay bath separating system to separate them, after this processing , we could get pure kernel(The shell content in kernel <6%),which should be conveyed to the kernel silo to dry. After dried moisture as 7%, the kernel will be conveyed to kernel storage bin for storage; Usually the dry kernel's capacity ratio is 4% . So it should be collected until enough quantity, and then be sent to the palm kernel oil mill; For the separated shell, it should be conveyed to shell temporary bin as the spare boiler fuel.

Fresh Palm Fruit Extraction Oil Plant, Palm Oil Pressing Machine

Fresh Palm Fruit Extraction Oil Plant, Palm Oil Pressing Machine

After screen and sand trap tank, the palm oil should be sent to crude oil tank and heat , then be pumped continuous clarification tank to separate the purified oil which be sent to pure oil tank and the sludge oil which be sent to sludge tank , whereafter the sludge oil should be pumped to the centrifuge to separate, the separated oil enter the continuous clarification tank again; The pure oil in the pure oil tank should be sent to the oil purifier , and then enter the vacuum dryer , at last the dried oil should be pumped collection tank.

Fresh Palm Fruit Extraction Oil Plant, Palm Oil Pressing Machine

 1.Ensure provide complete sets of equipment and accessories timely.
2.Ensure that one-time installation debugging acceptance.
3.To provide high quality material with preferential price.
4.Priority to provide customer our new craftworks and products.
5.Free training technological operator to ensure the trained staff can operation independently.
6.In the installation process,we will appoint an installation supervision staff on the spot.
7.we will offer an experienced project manager, organize a good installation team for the work of field installation debugging.
