Hydraulic Impact Drill Hammer Mining Rig Complete Set

=== Base Info ===

=== Description ===

Basic Info.

Model NO. CTQ-D100YA2-2F Drill Hole Depth 30 Meters Bit Type DTH Drill Bit Drilling Way Impactor Climb Ability 30 Degree Air Pressure 7-14 Bar Air Consumption 7-15 M3/Min Engine Power 33 Kw for Rock 6-20 F Weight 2900 Kg Transport Package Standard Shipping Packing Specification 4300mm*2130mm*2160mm Trademark LONGYE Origin China HS Code 8430419000 Production Capacity 300 Sets/ Year

Product Description

Our Advantages:

We are factory with 22 years history,our machine exported more than 60 countries.
We got ISO, CE certificate.


Product Introduction

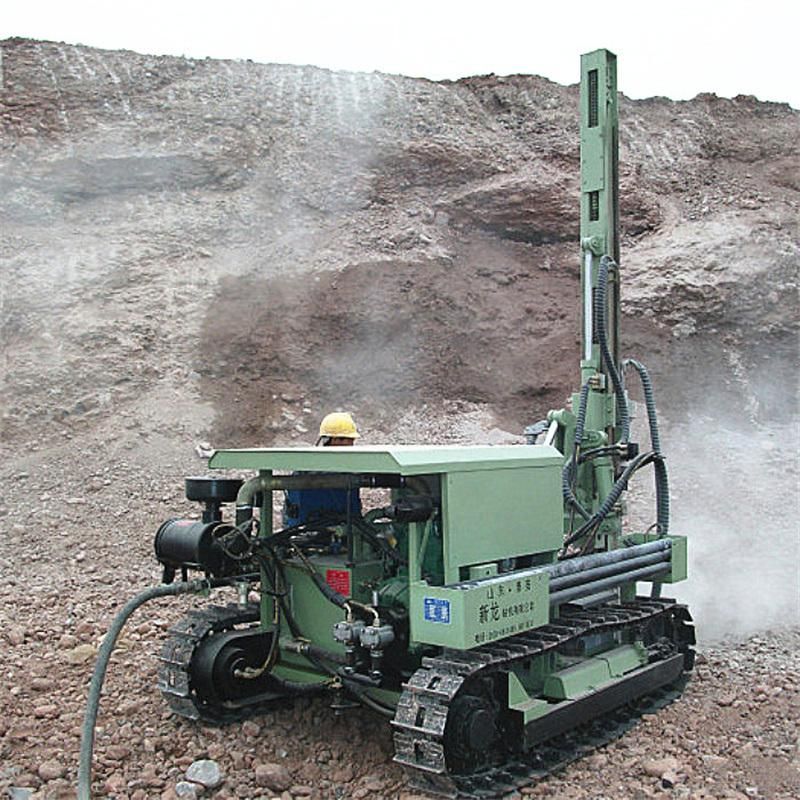

CTQ-D100YA2-2F DTH Drilling Rig
CTQ-D100YA2-2F crawler hydraulic drilling rig, adopts new type hydraulic rotary motor, has high rotary speed, large torque and low failure rate. This rig has low air consumption, convenient for shifting holes, uses air filter and oil filter total  three-stage filters to reduce engine wearing , increase working life of the diesel engine. The rig structure is compact, the minimum moving radius is 2.8m, and the skid mast has compensation function. when drilling, the skid mast supported on the ground that guarantee good drilling stability.
The drilling rig is mainly capable for open mining, water conservancy, power plants, road building and other rock blasting holes drilling.Technical Parameters

Bore diameter(mm)	90-130
Bore depth(m)	30
Walk speed(km/h)	2
Once promotion(mm)	2000
Grade ability (°)	30
Air pressure(Mpa)	0.7-1.4
Chassis ground clearance(mm)	260
Air consumption(m³/min)	7-15
Skid pitch(°)	Up,Down Total 100
Host Power (Kw)	33
Skid tilt swing (°)	Left 35,Right 10
For rock(F)	6-20
Skid compensation(mm)	900
Dimension(L*W*H)(mm)	4300*2130*2160
Weight(Kg)	2900

Product Display



Product Application


Company Profile






FAQ

Q1: What's your delivery time?
A: 15 days to produce, within 3 days if in stock.

Q2: What's methods of payments are accepted?
A: We agree T/T ,L/C , West Union ,Money Gram ,Paypal.

Q3: What about the shipments and package?
A: 40' container for 2 sets, 20' container for 1 set,
Machine in nude packing, spare parts in standard export wooden box.

Q4: Have you got any certificate?
A:We have got ISO,CE certificate.

Q5: How to control the quality?
A: We will control the quality by ISO and CE requests.

Q6: Do you have after-sale service and warranty service ?
A: Yes, we have.We can supply instruction for operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.
Warranty is one year for the machine.

Q7: Can I trust your company ?
 A: Our company has been certificated by Chinese government,and verified by SGS Inspection Company.Just order from US !
