Diamond Vacuum Brazed Wire for Cutting Concrete Bridge

Wuxi Lancy Beauty Technology Co., Ltd. / 2022-06-27

Application：Ceramic, Concrete, Stone, Marble, Granite
Type：Electroplating
Name：Hydraulic Diamond Wire Saw
Keyword：Diamond Concrete Cutting Saw
Usage：Jadestone, Cement Brick, Concrete Curb, Marble
Power Source：Hydraulic Power Unit

=== Base Info ===

Model NO.：YG Diamond Wire Saw
Automation：Semi-Automatic
Dimension：1300*2500*300mm
Power：Hydraulic or Electric
Motor Power：25kw
Source Voltage：380V,220V
Sawing Material：Reinforced Concrete; Bridge Column Wall, Granite
Transport Package：Wooden Case
Specification：210kg
Trademark：YUGONG
Origin：Henan( China)
HS Code：8461500090
Production Capacity：500sets,Month

=== Description ===

Hydraulic Pump

YG-25

Motor Power

25kw

Voltage

220V/380V, 50Hz

Motor Type

HM-80, 2 Cylinders

Rotation

1300r/min

Working Pressure

15-20Mpa

Weight

170kg

Size

720*650*1050mm

Frame & Wheels

Aluminum

Wheels

Weight

75kg

Size

90*90*1700mm

Diamond Wire Saw

Diamond Wire

Specification

φ11.5mm 40beads/m

Cutting speed

3~5m2/h

Wire life

2~3m2/m

This diamond wire saw is widely used in all kinds of marble quarrying, and can also be used for marble blocks squaring. The product has the following advantages:high efficiency, low pollution high productivity and low cost.

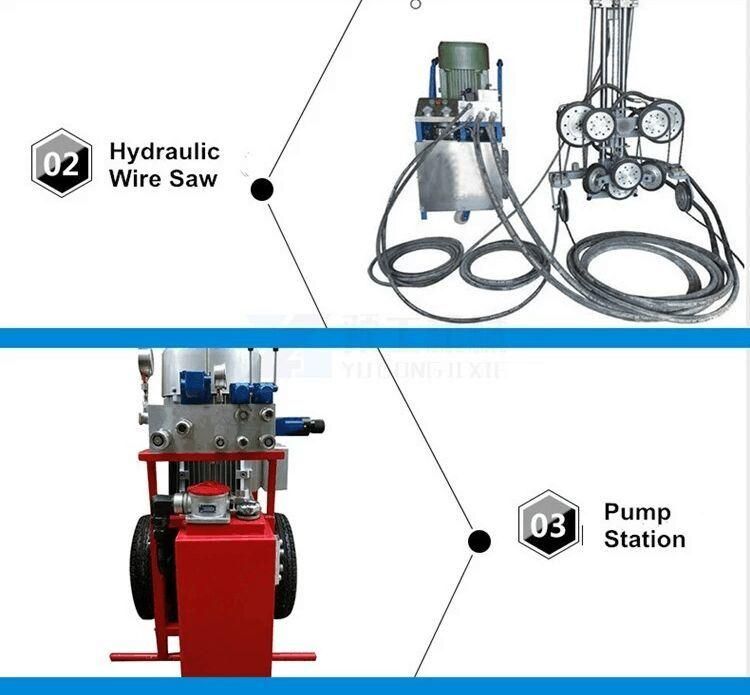

Structure
Diamond Vacuum Brazed Wire for Cutting Concrete Bridge

According to the power, it can be divided into two types: electric wire saw and hydraulic wire saw. According to the different cutting purposes and requirements, it can be divided into concrete cutting wire saw, mining wire saw (mining wire saw mainly for marble, granite mining shaping processing with mining waste stone cutting machine at the same time mining waste material)
Diamond Vacuum Brazed Wire for Cutting Concrete Bridge

Working Site
Hydraulic Diamond Wire Saw Machine is used to cut concrete, granite, rock, walls and beams in construction of bridges, roads and tunnels. It is necessary for cutting and removing reinforced concrete such as bridge sections, jetties, columns, beams and mining rocks.

Packaging& Shipping

1. Packaging: 1)Wrapped by proctective film;

2)Packed by standard import & export wooden cases or carton boxes.

2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
