Enrobing Line for Cereal Bars Tyj800

SHANTOU DAFU PLASTIC PRODUCTS FACTORY CO., LTD. / 2022-07-05

Enrobing Line for Cereal Bars Tyj800

  • After-sales Service:Online
  • Warranty:1 Year
  • Certification:CE, ISO9001
  • Power Source:Electric
  • Process:Thermal Processing
  • Automatic Grade:Automatic

=== Base Info ===

  • Model NO.:TYJ800
  • Application:Chocolate
  • Customized:Customized
  • Mesh Belt Speed:0-5m,Min
  • Coneyor Belt Speed:0-5m,Min
  • Transport Package:Wooden Case
  • Specification:1760*1330*1820mm
  • Trademark:GUSU
  • Origin:China
  • HS Code:8438200000
  • Production Capacity:Depend on Different Model

=== Description ===

Basic Info.

Model NO. TYJ800 Application Chocolate Customized Customized Mesh Belt Speed 0-5m/Min Coneyor Belt Speed 0-5m/Min Transport Package Wooden Case Specification 1760*1330*1820mm Trademark GUSU Origin China HS Code 8438200000 Production Capacity Depend on Different Model

Product Description

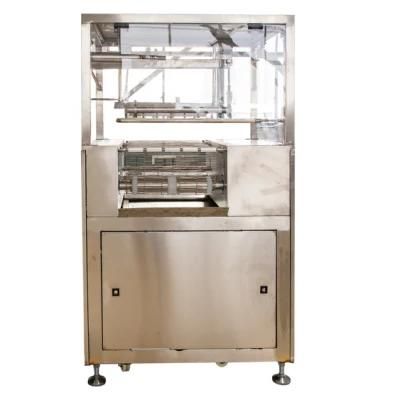

                                Enrobing Line for Cereal Bars   TYJ


Product Description
TYJ Series Chocolate Enrobing Machines used for enrobing chocolate on the surface of products such as candies, cakes, and biscuits, etc. you can make various unique flavors.

Features:
1) Widths from 400mm to 2000mm;
2) Easy maintenance and cleaning of the chocolate containment tank, with removable mesh conveyor;
3) High speed air-blowers adjustable by inverter group, to remove chocolate excess;
4) Industrial blower with variable temperature and adjustable height to remove excess chocolate;
5) Adjustable speed vibrational feature to remove excess chocolate;
6) Manufactured with food grade approved materials such as stainless steel and plastics;
7) Bottom only or full coating of products;
8) Easy access to maintenance and clean;
9) Built in stainless steel SUS304.


Technical Parameter

ModelTYJ1200TYJ1000TYJ900TYJ800TYJ600TYJ400
Mesh Belt Width(mm)12001000900800600400
Mesh Belt Speed(mm)0-50-50-50-50-50-5
Conveyor Belt Width(mm)12001000900800600400
Conveyor Belt Speed(mm)0-50-50-50-50-50-5
Tunnel work Temp.(ºC)0-100-100-100-100-100-10
Total Power(KW)30.8429.8425.4425.4425.4412.35
N.W.(kg)400036003200280023002000
Overall Size(mm)L*1850*1800L*1650*1800L*1550*1800L*1280*1835L*1215*1835L*1192*1580
 Combinatorial Arrangements
  1. Automatic feed mechanism which can reduce operation staffs to improve production efficiency.
  2. Patterns decorator which can make different colors of curve patterns coated on the surface to improve product level.
  3. Material Spreader which can spread crushed peanut, sesame or other nuts granules on the chocolate surface to enhance flavors.
    Enrobing Line for Cereal Bars Tyj800Enrobing Line for Cereal Bars Tyj800Enrobing Line for Cereal Bars Tyj800





Enrobing Line for Cereal Bars Tyj800
RAQ

1 How to Order

1. Customer send us an inquiry.
2. Confirm machine type, order quantity, price, lead time, payment term etc.
3.Our sales send the Proforma Invoice with company seal.
4. Customer make the payment for deposit and send us Bank receipt.
5. Inform the clients that we have got the payment,and will arrange the production according to    yourrequest, inform the estimated time
6. Production products photos will send to you for approval.
7. Clients make payment for balance and Ship the goods .
8. Order is finished when you receive the goods and satisfy with them .
9. Feedback to us about Quality , Service, Market Feedback & Suggestion.And we can do better

2 About after-sell service
Usually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused bymachine itself design defect , we are responsible for it .we can provided free charge breaking part .If machine breaking caused by humane factor , user need take responsibility for it , we will providedtechnical support .

3 About goods shipping
We have long time working shipping forwarder. We can do our best to send machine to your port safe and quickly.

4 About our online Service
24 hours online to solve any problem .
Your email will be reply within 12 hours .
Your satisfy is our pursuit .sincerely hope our cooperation
