Lexan Polycarbonate PC Hollow Marklon Sheet Roofing Sunshine Panel Extrusion Line Extruder ...

=== Base Info ===

=== Description ===


Item
Description
Data
1
SJ120/35 Single screw extruder with stainless steel hopper
1 set
2
Screen exchanging unit for PC
1 set
3
Melting gear pump for PC
1 set
4
SJ45/30 Single screw extruder for UV layer
1 set
5
Melting gear pump for uv
1 set
6
T-type Die head (2100mm*4-6mm)
1 set
7
Vacuum calibrating board
1 set
8
cooling table
1 set
9
The first haul off machine with 12 rollers
1 set
10
edge cutting device
1 set
11
5000mm oven
1 set
12
Corona treating unit
1 set
13
up and down sides, double position film laminating device
1 set
14
The second haul off machine
1 set
15
Tranverse cutting machine (length-settled)
1 set
16
material conveyor+6000mm discharge table
1 set
17
eletrical cabinet
1 set
other accessory machine parts
18500kg mixing and drying machine1 set19AC-25 water chiller1 set2015kw air compressor1 set21sheet crusher1 set

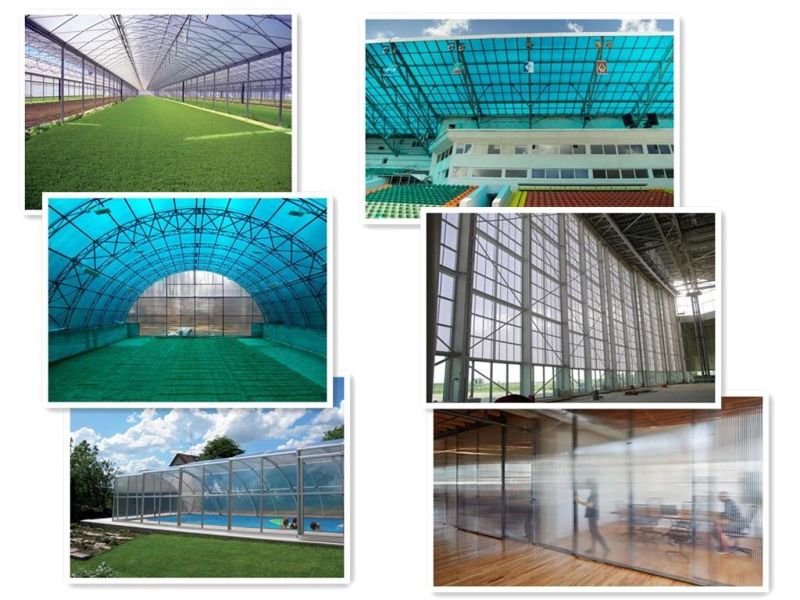

PART 3 SHEET APPLICATIONS:
1) Sunshades for stadium and bus shelters
2) Lighting for corridors, passages and subway entries
3) Bank ATMs
4) Sound and heat insulation for construction such as: houses
5) Canopies for agriculture greenhouse, zoos
6) PC sheets mainly used for building and decorating materials, greenhouse material, telephone booth, insulation shield express ways & highways
7) Office building, hotels, villas, stadium, schools, bus stop, terminals, hospitals, subway entry and exit doors, etc.


Finshed panel introduction
polycarbonate is best known for its very high impact resistance, fine optical clarity and excellen fire performance.
hollow polycarboante is also often named as strutural polycarbonate, cellular polycarbonate, channel polycarbonate or multiwall polycarbonate.
polycarbonate hollow sheets offer the higher level of glazing performance where transparency along with high impact strength is of vital importance. They have excellent physical, mechnical, electric as well as hot property which explains their high reputation in buildings and decoration industry.  They are sold all over the world, making great contribution to customer's beautiful life.


UV protection
solar radiation has a harmful component by UV rays which initiate degradation of many polymetric material including polycarbonate.
This depends on geographic locations, seasons etc. Polycarbonate sheets feature a specifically co-extruded UV absorption and protection layer, which provides long-lasting high stability against demanaging UV radiation, protects againts outdoor weathering and
retains its original color and light transmission.


Material:
PC pellets (germany Baier brand with model 3113 or 3117)
UV material (germany Baier brand with model 510 or 130)


PART 5 COMPANY INFORMATION AND MAIN PRODUCTS:



PART 6 OUR RELIABLE SUPPLIERS:


PART 7 COMPANY CERTIFICATIONS:


PART 7 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.



PART 8 COMPANY OVERSEA SHOWS AND CONTACT DETAILS:



PART 10 OTHER KINDS OF PLASTIC SHEETS/PLATES EXTRUSION LINE RECOMMENDATION :

1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 300-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity:300-800kg/h
Application: Vacuum forming, bathtube, etc.

5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads., decoration, roofing, etc.

7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity:200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

9. PVC free foam/celuka foam board extrusion line
board width: 1220mm, thickness: 1-10mm, 3-25mm
board application: decoration board, advertising boards, exhibition boards
extruder model: SJ-80/156 conical twin screw extruder
max capacity: 350kg/h
certifications: CE, ISO9001-2008

10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer  strcuture: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.

11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
