500L Stainless Steel Tank Craft Beer Brewing Machine Alcohol Production Line

• Condition：New
• Customized：Customized
• Voltage：Customized
• Composition：Beer
• Processing Material：SS304
• Process：Ferment

=== Base Info ===

• Model NO.：ZH-500L
• Heating Method：Electricity Steam Fire
• Application：Beer Brewing
• Thickness：2-3mm , Inside:3.0mm Outside:2mm
• Control System：Semi-Automatic
• Capacity：500L,Batch
• Insulation：80mm Polyurethane
• Inner Surface：Pickled and Passivated
• Material：SUS304,SUS316,Red Copper
• Transport Package：Steel Frame or Wooden Case
• Specification：as customer request
• Trademark：Zunhuang
• Origin：China
• Production Capacity：500piece

=== Description ===

Basic Info.

Model NO. ZH-500L Heating Method Electricity Steam Fire Application Beer Brewing Thickness 2-3mm / Inside:3.0mm Outside:2mm Control System Semi-Automatic Capacity 500L/Batch Insulation 80mm Polyurethane Inner Surface Pickled and Passivated Material SUS304/SUS316/Red Copper Transport Package Steel Frame or Wooden Case Specification as customer request Trademark Zunhuang Origin China Production Capacity 500piece

Product Description

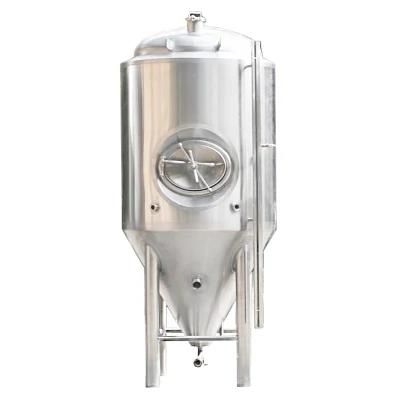

specifications:50L 100L 200L 300L 400L 500L sus 304 Beer home brewing equipment for brewhouse1. Effective volume: According to your requiment2. Cylinder tank; Inside surface: SUS304, Thickness:2.5mm,Outside surface: polishing stainless steel,Thickness:1.5mm,Polishing coefficient: 0.4µm3. Thermal insulation material: Polyurethane (PU) foam,Insulation thickness: 80MM.4. Working pressure: 0.2Mpa;5. Bottom design: 60degree cone for easy to exist yeast. Polishing coefficient: 0.4µm6. Cooling method: Dimple cooling jacket(Cone and cylinder 2 zone cooling); Or screw type belt7. Cleaning system: Fixed-round rotary cleaning ball.8. Temperature measurement method: PT100 temperature probe9. Control system: PT100, temperature control;10. Manhole:Top manhole on the cylinder,with hop port.11. With: CIP arm with spray ball, pressure gauge, mechanical pressure regulating valve, hops adding deviceand CO2 adding device,sampling valve, breath valve, Ice water solenoid valve, thermometer, etc.
