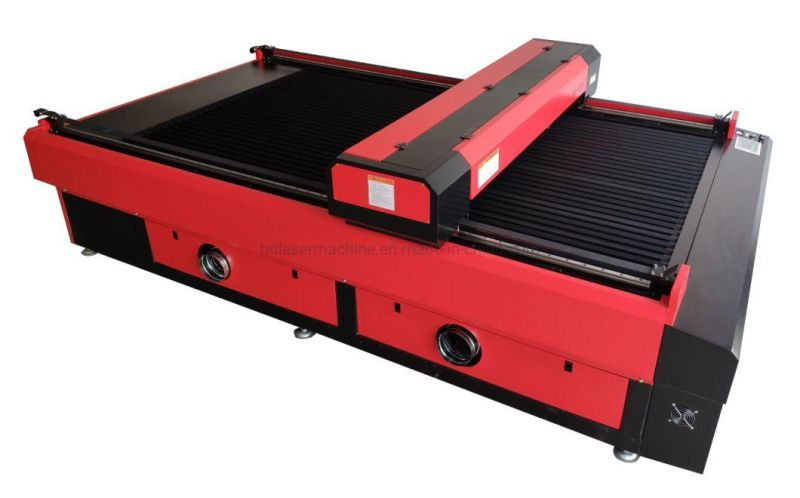

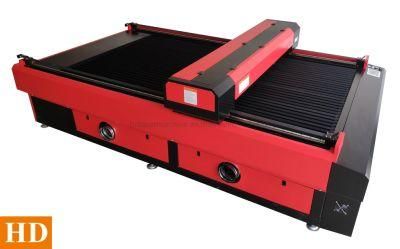

Large Format Flatbed Laser Cutting Machine with 130W 150W 300W Tube for Acrylics Cutting

• Warranty：1 Year Warranty
• Application：Leather Industry, Domestic, Carpentry, Printing & Packaging, Construction Industry, Molds & Dies, Crafts Industr, Advertising Industry, Garments

=== Base Info ===

• Model NO.：HD-1325
• Cooling System：Water Cooling
• Technical Class：Continuous Wave Laser
• Automatic Grade：Automatic
• Applicable Material：Nonmetal
• Type：Flat-Plate
• Laser Classification：Gaseous Laser
• Engraving Method：Vector Engraving
• Engraving Machine Type：Laser Cutting Machine
• Power：Small Power
• Drive Type：Stepper Drive
• Certification：CE, FDA
• Laser Type：CO2
• Control：Automatic
• Current：AC
• Condition：New
• Usage：Signage, Garments, Craft, Advertising, Textiles
• Transport Package：Plywood Box
• Specification：CE, FDA
• Trademark：HONDAC
• Origin：Dongguan China
• HS Code：8456110090
• Production Capacity：1000set , Year
• Package size per unit product：340.00cm * 211.00cm * 125.00cm
• Gross weight per unit product：1200.000kg

=== Description ===

Basic Info.

Model NO. HD-1325 Cooling System Water Cooling Technical Class Continuous Wave Laser Automatic Grade Automatic Applicable Material Nonmetal Type Flat-Plate Laser Classification Gaseous Laser Engraving Method Vector Engraving Engraving Machine Type Laser Cutting Machine Power Small Power Drive Type Stepper Drive Certification CE, FDA Laser Type CO2 Control Automatic Current AC Condition New Usage Signage, Garments, Craft, Advertising, Textiles Transport Package Plywood Box Specification CE, FDA Trademark HONDAC Origin Dongguan China HS Code 8456110090 Production Capacity 1000set / Year

Packaging & Delivery

Package size per unit product 340.00cm * 211.00cm * 125.00cm Gross weight per unit product 1200.000kg

Product Description

Machine Feature:

1. The machine body applied with most solid design which can ensure no deformation long time operation and transportation.
2.  The machine fixed with LEADSHINE brand stepper motor and driver, linear guide and strong belt running system.
3.  Adpots with adanced DSP control technology, fixed with high quality electronic parts, ensure high cutting engraving speed,
     high accuracy and high stability, long time usage life.
4. Applied with imported lens and reflector mirror, ensure high laser power efficiency.
5. The machine connect with computer by USB/ INTERNET wire or U disk directly.
6.  With water cooling system, exhaust fan and water pump, etc.
7.  It have cutting and engraving function, it have half-cut function.


Laser cutting machine specification:


Wave Length(µm)	10.6
Optional Power ( w )	130W, 150W, 300W
Cooling	Water Cooling
Working Area ( mm )	1300X2400MM, 8 X 4 feets
Min. Line width ( mm )	0.15 ~ 0.3
Working speed  ( mm/M )	0 ~ 36
Repeat position precision (mm)	±0.05
Compatible format	PLT, DXF, AI, DST, DSB, JPG, BMP, GIF
Power	Single phase,  AC220V ± 10%, 50/60HZ
Dimention ( cm)	340x210x125
Weight	1000 kgs
Working environment	0 ~ 40ºC, clean and no-dust room, without water
total machine power(w)	<2500
protection class	IP54
Laser safety class	4 class

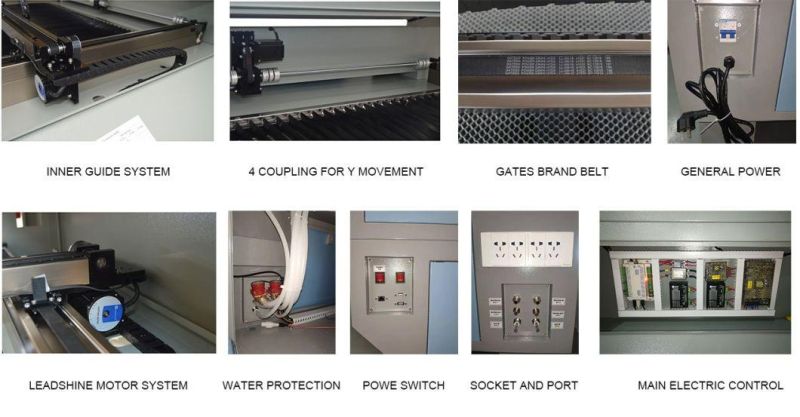

                      MACHINE DETAILS

Applicable industry:

Advertising, signage, gifts, garments, shoes, bags, curtain, model, home furnishing, decoration, label, electronical etc industry,
Suitable materials:
acrylics, wood, paper, bamboo, fabric, cloth, leather, shoe bottom, woollen, plastic, ABS, resin, ceramic, and other nonmetal materials.

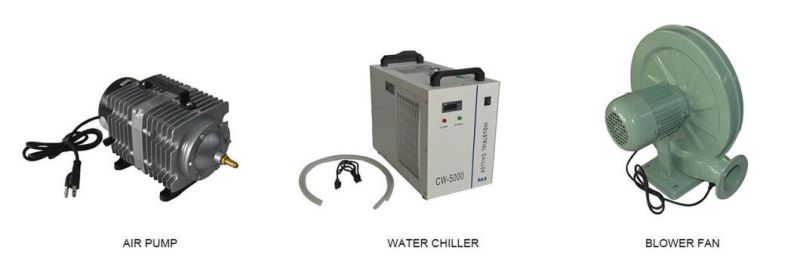

MAIN MACHINE ACCESSORY

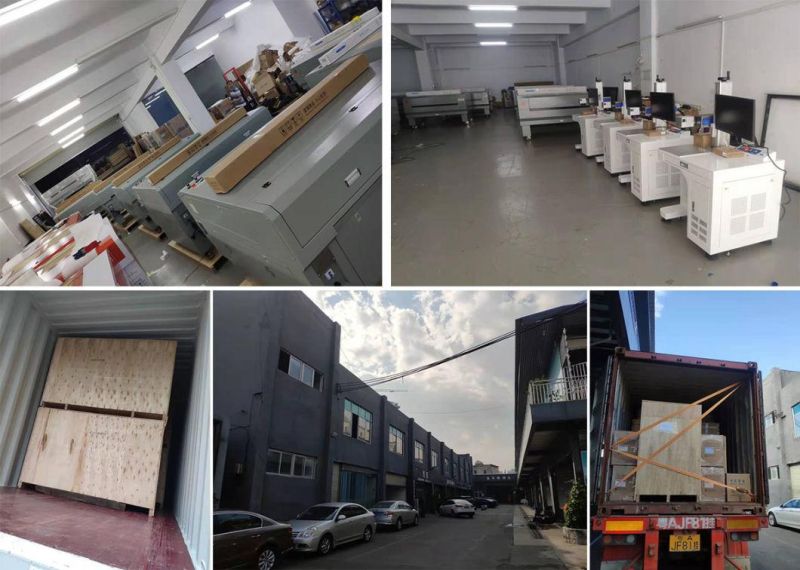

FACTORY INDRODUCTION:

Professional laser machine factory, have more than 10years experience in production of laser equipment.
Applied with high quatiy spare parts, with strict requirement of installation, tuning and testing, that make sure every machine set stabl, long time usage life.
We supply full series of laser cutting machine, CO2 marking machine, fiber marking machine etc.



Aftersales service

1. Whole set machine with 1 year warranty, except consumable parts as laser tube, lens etc.
    Lifelong maintainance and repairing support service.
2. Profesional technical team support by email or online timely, free software update.
3. If need, we can send technician to cuostomer local place to supply service and support.
