- After-sales Service:Online Service
- Warranty:One Year
- Process:Mild Processing
- Power Source:Steam
- Certification:ISO9001
- Automatic Grade:Semi-Automatic
=== Base Info ===
- Model NO.:KQ Series
- Application:Milk, Yogurt, Milk Powder
- Customized:Non-Customized
- Name:Working Platform Milk Fruit Juice Heating Mixing P
- Double Jacketed Tank with Mixer:Mirror Polished Sanitary Tank Aseptic Mixing Tan
- Preparation Tank for Milk ,Yogurt:Aseptic Tank Set
- Tank Material:Ss 304,316
- Tank Capacity:100L To20000L
- Tank Type:Single Wall,Jacket, Double Jacket
- Agitator Speed:36rpm,48rpm,60rpm,960rpm,2900rpm
- Warrant:1year
- Working Life:Above 10 Years
- Tank Wall Thickness:Customized
- Delivery:10 Days After Confirmed
- Voltage ,Hz,Phase:Make It to Your Order
- MOQ:1set
- Packing:Wooden Box
- OEM:Yes
- Transport Package:Plywood Box
- Specification:ISO
- Trademark:KQ
- Origin:Shanghai China
- HS Code:8479820090
- Production Capacity:100set,Month
=== Description ===
Type and specification | ZZJBG-1000 | ZZJBG-2000 | ZZJBG-3000 | ZZJBG-4000 | ZZJBG-5000 | ZZJBG-6000 | ZZJBG-10000 |
Volume (L/m³) | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | 10000 |
Equipment weight (Kg) | 335 | 470 | 705 | 1060 | 1320 | 1550 | 2650 |
Dimension (mm) | Length | 900 | 1200 | 1500 | 1600 | 1600 | 1800 | 2000 |
Height | 2000 | 2800 | 2200 | 2500 | 2900 | 3000 | 3900 |
Choice of simple jacket tank (simple skin) or of retention double jacket tank (double skin) or tank and retention
a jacketed vessel is a container that is designed for controlling the temperature of its contents, by using a cooling or heating "jacket" around the vessel through which a cooling or heating fluid is circulated
hot water heating tank with mixer; hot water tank with mixer

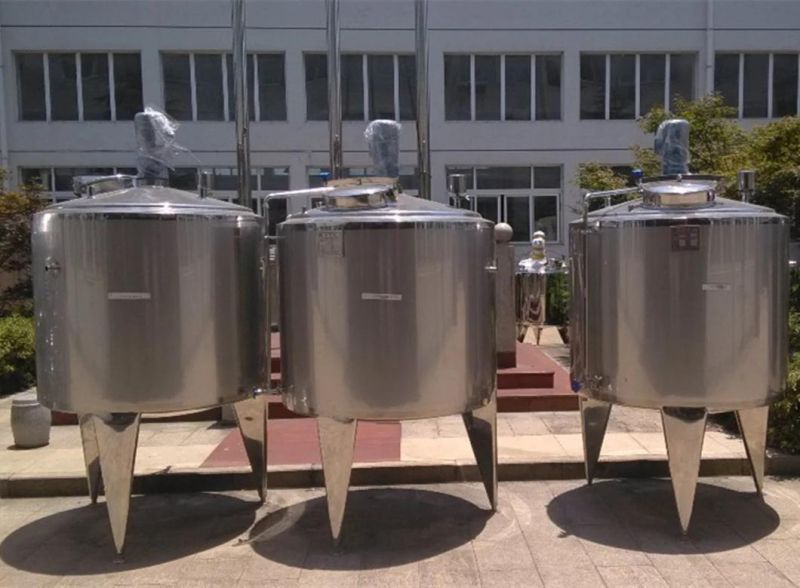

Heating and mixing tank
preparation tank/mixing tank for dairy production line,, Shanghai, China (Mainland)
The dairy preparation thus obtained is conveyed to storage tanks where it is also subjected to continuous stirring,
because a typical dairy plant might manufacture yogurts, drinks and cheeses tanks . Our sanitary dairy mixing tanks could encompass the entire plant and all products, or we could create a partition between processes if it is possible to separate resource usage, raw materials, and so on. We make the assumption here that these different processes are independent and so decide to focus on the yogurt process
1.Mixing tank(sterilizing tank /aseptic tank) is made of SUS304 Or SS316L
2.Mixing tank(sterilizing tank /aseptic tank) can used for heating or coolling using dimple jacket.
3.with perlite or PU to keep heat /cold insulate.
4.All angles is treated in special process to guarantee no dead angle
5.this tank is widely used for heating or cooling or temperature holding
6.liquid foods like milk, juice, ice cream, chemical and biological areas.
7.With agitation or no can be an option, and it can be build according to the customer detail requirement.
Mixing tank(sterilizing tank /aseptic tank) Standard configuration:
manhole, thermometer with figure display, ladder, CIP washing point, pull pole valve, controllable trestle, charging/discharging port and sampling valve etc.
Other Types are according to customer's requirement
If you are interested in this product ,please contact with me :
Working Platform Milk Fruit Juice Heating Mixing Pasteurization Tank Price
