High Quality Hard Plastic Shredder Machine with Good Performance

=== Base Info ===

=== Description ===

Basic Info.

Model NO. plastic shredding machine Knife Roll Hollow Knife Roller Automation Automatic Computerized Computerized Certification CE, SGS Name Plastic Shredder Machine Color Custom-Made Motor Siemens Inverters ABB Handle Waste Plastic Core Part Plastic Shredder Feeding Type Conveyor City Zhangjiagang Blade SKD11 Material Transfer Blower Machine Material Hard Steel Cutting Type Shear Temperature Control Omron Contactor Schneid Apply Shredder Machine Transport Package Sea Packing Specification 500kg/h Trademark WEDO Origin China HS Code 847780000 Production Capacity 10 Sets

Product Description

 high quality hard plastic shredder machine with good performance


Description of Industrial Wood Paper tire Double Shaft Plastic Shredder Machine:
The two-shaft shredder is a low speed and high torque industrial, thus saving energy. This dual shearing shredder does not have a screen unit. After material is fed into the hopper, material is handled using two counter rotating blades, then directly discharged. Although the output particle size is random, the two shaft shredder features a faster shredding speed and a higher throughput than other shredders.
Double shaft shredder is composed of motor, hard tooth surface reducer, rotating cutter shaft, movable knife, frame, stand, box body, working platform and other main structures.
Mount fixed knife frame, rotating knife shaft is equipped with removable inserts the knife. The knife number according to the size of the different models and rotating knife shaft and decide. Can removed after using a blunt knife again, save maintenance cost greatly, increase the service life of the machine. Because it is a claw type moving blade, rotary cutting, and the knife to import SKD11 material, after heat treatment the hardness of HRC60 ° above, long service life, strong cutting ability, high capacity.
The electrical system controlled by microcomputer PLC. After the completion of commissioning, the operator can only start automatically by the F1 machine, and the F2 machine will stop automatically.
Save labor cost and ensure safe operation.

Application of Industrial Wood Paper tire Double Shaft Plastic Shredder Machine:
1. Car tire Truck tire.
2. PE, PP, BOPP film, woven bag, jumbo bag, ton bag.
3. Fishing nets, waste fabrics.
4. Municipal solid waste
5. Agricultural waste.

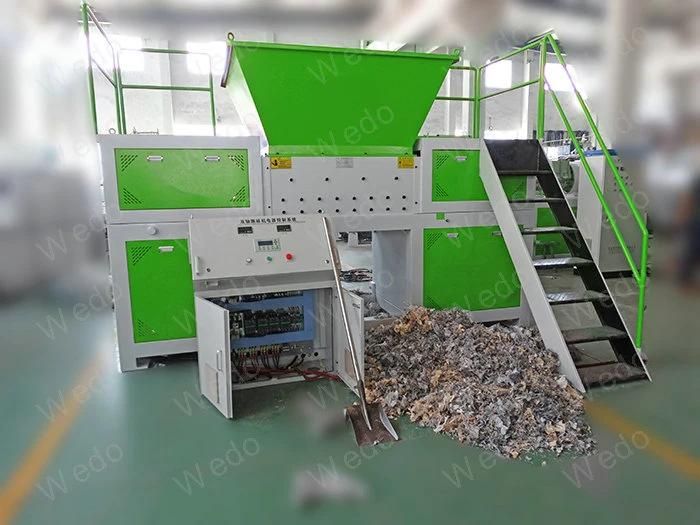

Photos fo Industrial Wood Paper tire Double Shaft Plastic Shredder Machine


Blade of Industrial Wood Paper tire Double Shaft Plastic Shredder Machine

Advantages of Industrial Wood Paper tire Double Shaft Plastic Shredder Machine:
1. Unique parallel double shaft shredding system, synchronous centripetal rotating, ensure shredding coordination and stability.
2. Moving knife adopts four angles structure, perfectly matched with serration fixed knife. Realize high capacity and small output size
3. Equipped with two independent power system, low rotation rate and high torque, avoid winding and stuck.
4. Electrical system adopts PLC program, features start, stop, reverse functions along with automatic overload return mechanism to prevent damage to working parts. Lower labor intensity and longer machine service life.

Technical parameters Industrial Wood Paper tire Double Shaft Plastic Shredder Machine:

Shredder model	D600	D800	D1000	D1200	D1600
Shaft diameter	275mm	275mm	315mm	315mm	350mm
Moving knife NO.	60	78	96	114	150
Fixed knife NO.	4	4	8	8	8
Maximum capacity	600kg/h	800kg/h	1200kg/h	1500kg/h	2000kg/h
Motor power	22KW×2	30KW×2	37KW×2	45KW×2	55KW×2
Host weight	3600kg	4000kg	6500kg	7500kg	8500kg
Chamber size	660L×950W	860L×950W	1060L×1030W	1260L×1030W	1660L×1100W
Dimensions	3000L×1250W ×2300H	3200L×1250W ×2350H	3500L×1250W ×2400H	3750L×1250W ×2450H	4200L×1450W ×2500H








Wedo Produce steps:
Wedo have a fully step for the Industrial Wood Paper tire Double Shaft Plastic Shredder Machine producing before packing and shipping, this ensure the plastic recycling machine will delivery in good quality, and custerm will get good machine.


Wedo service:
We do best service for you in Industrial Wood Paper tire Double Shaft Plastic Shredder Machine




Any further about the high quality hard plastic shredder machine with good performance, please contact us timely we will give your professional fully support.
