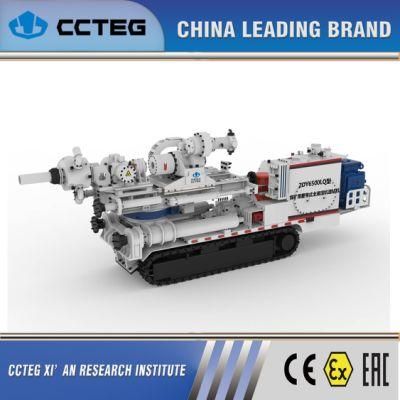

Explosion Proof Drilling Rig Zdy6500lq

=== Base Info ===

=== Description ===

Basic Info.

Model NO. ZDY6500LQ Drill Hole Depth >300m Bit Type Drag Bit Drilling Way Compound Rated Torque/N·m 6500~1750 Rotary Speed/(R/Min) 60~200 Borehole Depth/M 400 Rod Diameter/mm 73/89 DIP of The Main Axis/° -180~+180 Horizontal Drill Height/M 0.73~1.63 Max Feed/Pull Force/Kn 112/200 Feed/Pull Stroke/mm 600 Motor Power/Kw 90 Max Travelling Speed/(Km/H) 1.0 Max Gradeability/° 15 Weight/Kg 9500 Transport Package Wooden Box Specification 4.60*1.10*2.00 Trademark MK Origin Xi′an

Product Description

[Application scope and technical characteristics]
ZDY6500LQ is suitable for medium and deep hole drilling with low speed and large torque. The rigs have the advantages of advanced technical performance,strong process adaptability,safety and reliability,convenient movement and relocation,etc. They are mainly used for the construction of inseam gas drainage boreholes and other engineering boreholes.

The rigs have low horizontal borehole opening height and full-section angle construction,which meet the special construction needs of thin coal seam gas drainage.They also have the advantages of small height and narrow width during the transportation process.

[Technical specification]

Type	ZDY6500LQ
Rated torque/N·m	6500~1750
Rotary speed/(r/min)	60~200
Borehole depth/m	400
Rod diameter/mm	73/89
Dip of the main axis/°	-180~+180
Horizontal drill height/m	0.73~1.63
Max feed/pull force/kN	112/200
Feed/pull stroke/mm	600
Motor power/kW	90
Max travelling speed/(km/h)	1.0
Max gradeability/°	15
Weight/kg	9500
Dimension(L×W×H)/m	4.60×1.10×2.00
