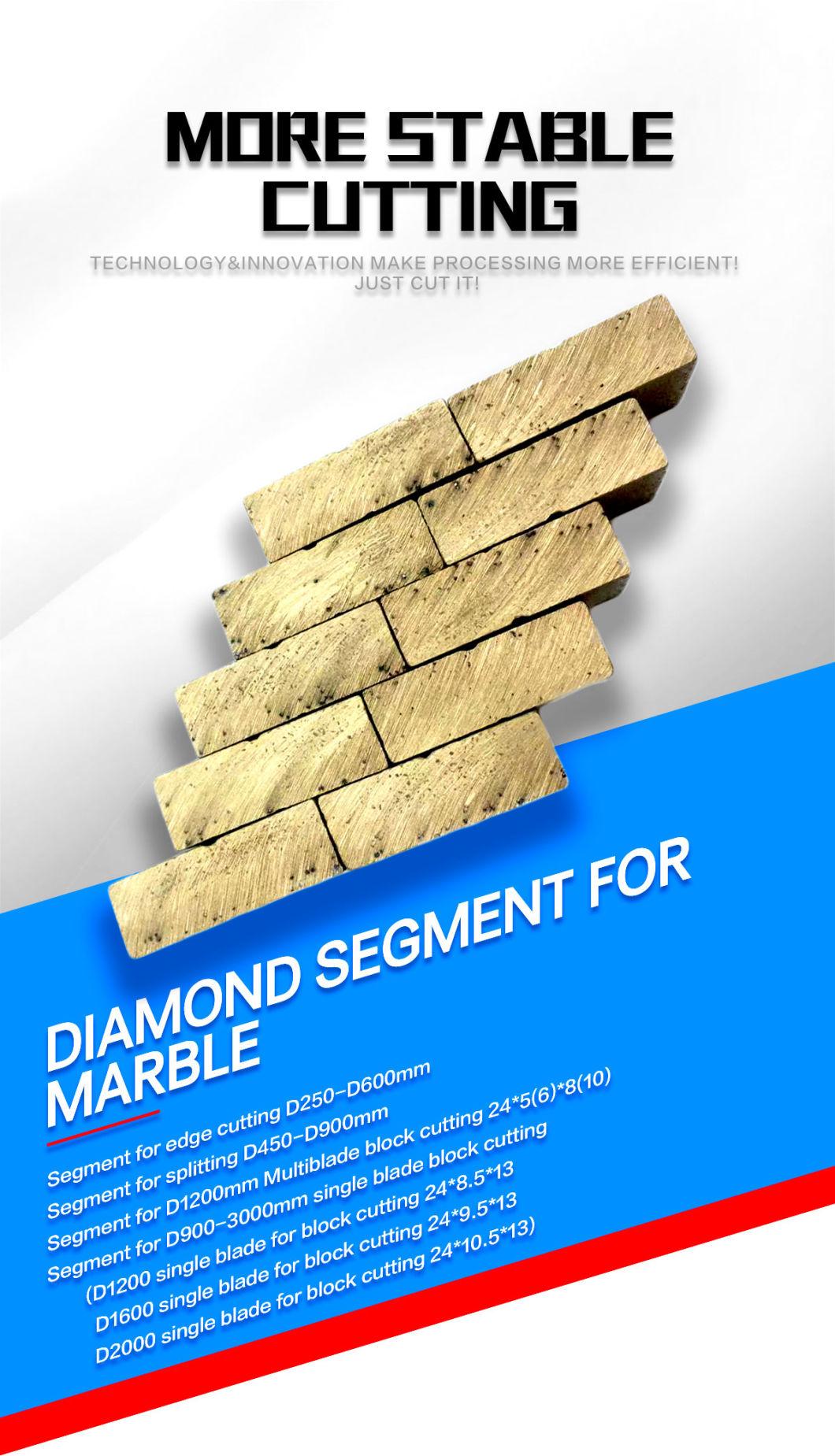

Linxing Top Quality Diamond Segment for Marble Block Cutting

• Type：Artificial Polvcrystalline Diamond
• Surface Finishing：Ti-coated
• Blade Material：Alloy Steel
• Material：Mineral Powder+Diamond
• Feature：Fast Cutting,Long Working Life,Good Sharpness
• Colour：Golden,Metallic,Silver

=== Base Info ===

• Model NO.：D2000mm Saw Dlade Segment
• Shape：Flat Type
• Structure：Sandwhich
• Application：Marble
• Diameter：Accroding to Your Needs
• Mqo：300PCS
• Craft：Sintering
• Segment Height：10mm,13mm
• Certification：ISO9001:2000,TUV
• Bond：Copper
• Hradness：Soft, Medium, Hard
• Experience：20 Years
• Welding：Copper Soldering Piece, Silver Soldering Piece
• Transport Package：Cardborad Box
• Specification：Diamond Segment
• Trademark：Linsing
• Origin：Jiangxi, China
• Production Capacity：18000PCS,Day

=== Description ===
Diameter (mm)Steel Core Thickness(mm)Segment Dimension (mm)Segment No.Φ3002.240×3.2×8(10)22Φ3502.440×3.4×8(10)25Φ4002.640×3.6×8(10)29Φ4502.8/3.040×4.0×8(10)32Φ5003.0/3.240×4.2×8(10)36Φ6003.6/3.840×4.8×8(10)42Φ700440×5.2×8(10)42Φ8004.540×6.0×8(10)46/57Φ9005.0 24×7.5×8(10,12)64Φ10005.0 24×7.5×8(10,12)70Φ12005.5 24×8.5×8(10,12)80Φ13006.0 24×8.5×8(10,12)88Φ14006.5 24×9.0×8(10,12)92Φ16007.2 24×9.5×8(10,12)108Φ18007.5 24×10.0×8(10,12)120Φ20008.0 24×10.5×8(10,12)128Φ22009.0 24×11.0×8(10,12)132Φ25009.0 24×11.0×8(10,12)140Φ30009.5 24×12.0×8(10,12)160
