Hot Sale Professional Chocolate Holding Tank (advanced)

• Certification：CE, ISO9001
• Power Source：Electric
• Application：Chocolate
• Customized：Customized
• Maximum Capacity：as Per Machine Type
• Power：0.37-5kw

=== Base Info ===

• Model NO.：QBJ
• Weight：60-5000kw
• Main Axle Rotating Speed：22.5rpm
• Voltage：380V,220V
• Transport Package：Wooden Case
• Specification：CE, ISO9001: 2008
• Trademark：tgmachine
• Origin：Shanghai

=== Description ===

Basic Info.

Model NO. QBJ Weight 60-5000kw Main Axle Rotating Speed 22.5rpm Voltage 380V/220V Transport Package Wooden Case Specification CE, ISO9001: 2008 Trademark tgmachine Origin Shanghai

Product Description

Application:

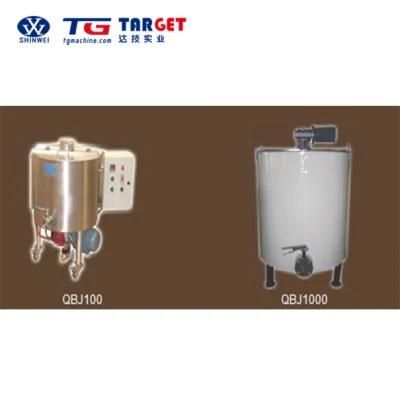

The holding tank is to store the fine grinded chocolate mass in constant temperature,it is with automatic temperature control system.2-10tons holding tank can be produced under the customer's requirement.




Technical Parameters:

Model 30 100 500 1000 1500~5000 Maximum capacity(L) 30 100 500 1000 1500~5000 Main axle rotating speed (rpm) 22.5 22.5 22.5 22.5 22.5 Main Motor power 0.37 0.75 1.1 1.5 1.1~5 Electrical heating power 1 2.5 5 7.5 7.5~15 Heat preservation power 1 2.5 2.5 2.5 2.5~5 Weight(kg) 60 200 515 785 1010~3000 Outside dimensions(mm) 500×600 750×700 1035×1480 1250×1700 1400×1800~ 2000×2500
