Xj75 Hook Load 50mt Truck-Mounted Water Well Drilling Maintenance Workover Rig

=== Base Info ===

=== Description ===

Basic Info.

Model NO. XJ75 Drill Hole Depth 2000m Above Bit Type Diamond Bit Drilling Way Rotary Transport Package by Bulk Specification 14000*3500*3100 Trademark BEYOND Origin China HS Code 8431431000 Production Capacity 1000 / Year

Product Description

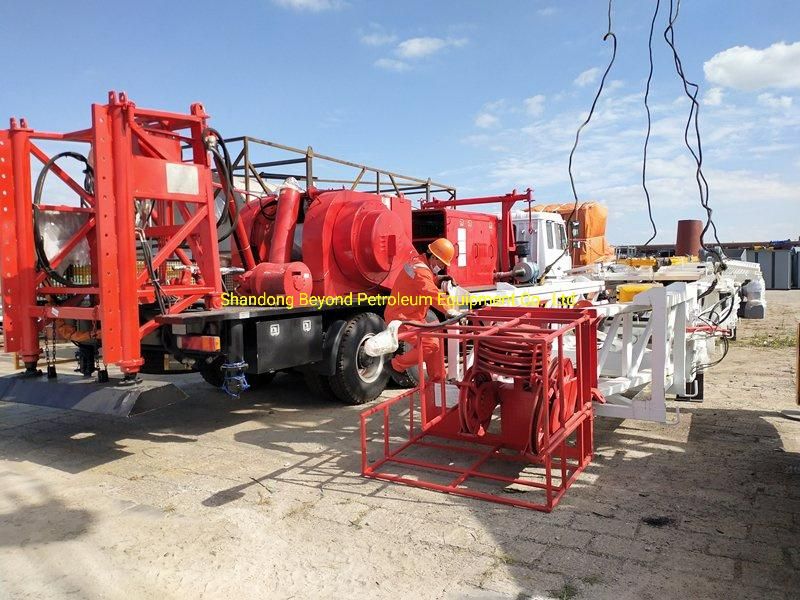

Rig Description:XJ70J workover rig is truck-mounted rig. Rated load is 500KN, Max load is 750kN, mast height is 28.5m, It can be divided two parts: self-propelled chassis,working device on deck is used for workover service.Power system: high speed diesel engine, hydraulic and mechanical transfer substructure.
 Mast assembly is double sections, raising,lowering and telescopic by hydraulic cylinders. The inclined angle of the mast is 5 °s, which can be adjusted by screw rod; The crown block is box style frame, the pulleys are dynamic equilibrium tested; Besides, rope- block board is set in the pulley seat to avoid bouncing.
Drawworks assembly: single-drum, max fast line pull is 140kN, belt brake structure.Hydraulic and pneumatic control system: hydraulic oil pump and control valve of drum are western models, change valve adopts pneumatic and manual control structure, easy operation and pipeline.
 Technical specificaiton:
 1)  Workover depth: 2600m( 8530FT 2-7/8″ DP),  1200m(3940FT, 4-1/2" DP)2)  Rated hook load(kN) : 7503)   Max. hook load(kN):  500 4)  Rated power of engine(hp) :  247KW/330HP5)  Height of mast : 28.5M (93.5FT)6)  Traveling system : 4×3 7)   Dia. Of wire line(mm) : φ26

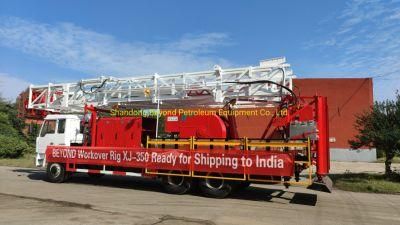

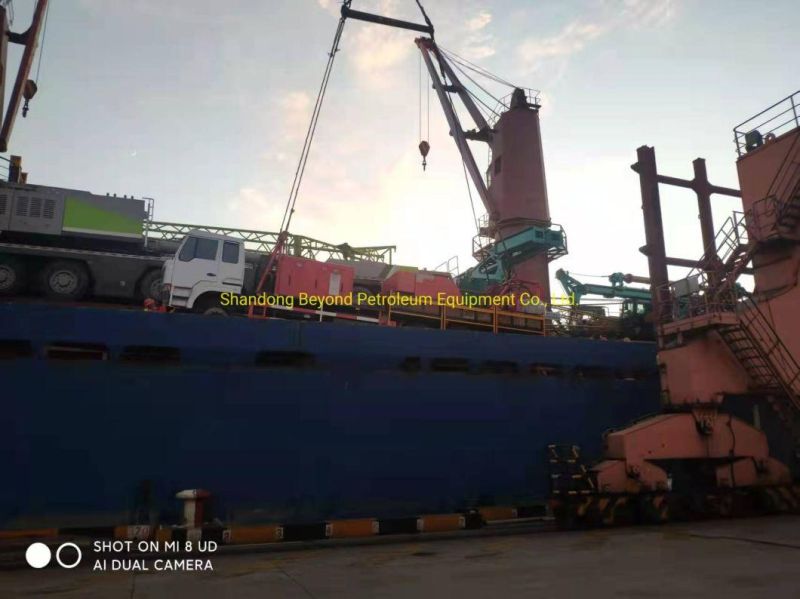

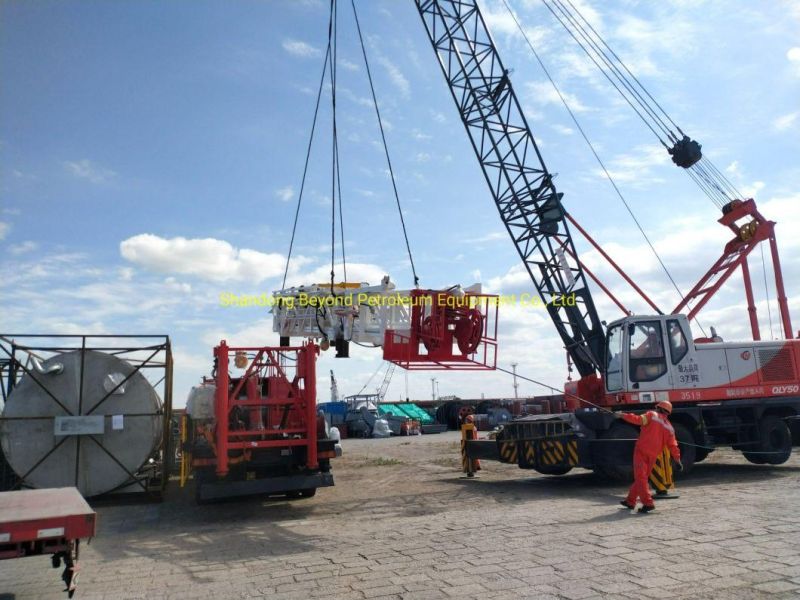

Shipping & Packing:

Our Clients:

FAQ:
1, Are you a trading company or manufacturer?
We are a professional purchase agent for our long-term clients with 10 years experience, and our products have been exported to more than 20 countries of Azerbaijan, Kazakhstan, Asia, South America, Africa, India, Egypt, and get a good reputation in the world.

2, How about your machine quality?
API, ISO9001 certified, All of our machines must pass a great number of strict testing in order to offer the best quality to our customers.

3, Do you have an after-sale service?
Yes, we provide an overseas after-sale service team that will offer you the best technical maintenance guidance, and now online technical support is a necessity.

5, What about the quality warranty?
We offer a one-year quality warranty mainly for the main mud pump, but for the small wearing parts around 6 months. We provide one-year spares when delivering the mud pump.

6, How long can you deliver the machine?
Generally, parts mainly have at stock, pumps we can delivery in 20 working days.
