- Process:Mild Processing
- Power Source:Electric
- Certification:CE, ISO9001
- Automatic Grade:Automatic
- Application:Milk, Yogurt, Milk Powder, Dairy, Milk, Juice, Beverage
- Customized:Customized
=== Base Info ===
- Model NO.:GJB Series
- Name:Stainless Steel Milk High Pressure Homogenizer PU
- Homogenizer Appication:Milk , Juice, Beverage, Butter, Honey, Cream
- Product Material:Stainless Steel 304,316
- Capacity:500L,H--10000L,H
- Pressure:250bar to 700bar
- Homogenizer Certificate:Ce
- High Pressure Homogenizer:Customized Electricity Motor
- Motor:3phases
- Working Life:More Than 10years
- Homogenizer Spare Parts:Provide
- OEM:Yes
- Packing:Wooden Box
- Motor Brand:Siemens ,ABB,China Brand
- Stage:Two Stage
- Sapre Parts:Available
- Transport Package:Standard Wooden Box
- Specification:CE
- Trademark:KAIQUAN
- Origin:Shanghai, China
- HS Code:8479820090
- Production Capacity:100 Units,Month
=== Description ===
Basic Info.
Model NO.
GJB Series
Name
Stainless Steel Milk High Pressure Homogenizer PU
Homogenizer Appication
Milk , Juice, Beverage, Butter, Honey, Cream
Product Material
Stainless Steel 304/316
Capacity
500L/H--10000L/H
Pressure
250bar to 700bar
Homogenizer Certificate
Ce
High Pressure Homogenizer
Customized Electricity Motor
Motor
3phases
Working Life
More Than 10years
Homogenizer Spare Parts
Provide
OEM
Yes
Packing
Wooden Box
Motor Brand
Siemens /ABB/China Brand
Stage
Two Stage
Sapre Parts
Available
Transport Package
Standard Wooden Box
Specification
CE
Trademark
KAIQUAN
Origin
Shanghai, China
HS Code
8479820090
Production Capacity
100 Units/Month
Product Description

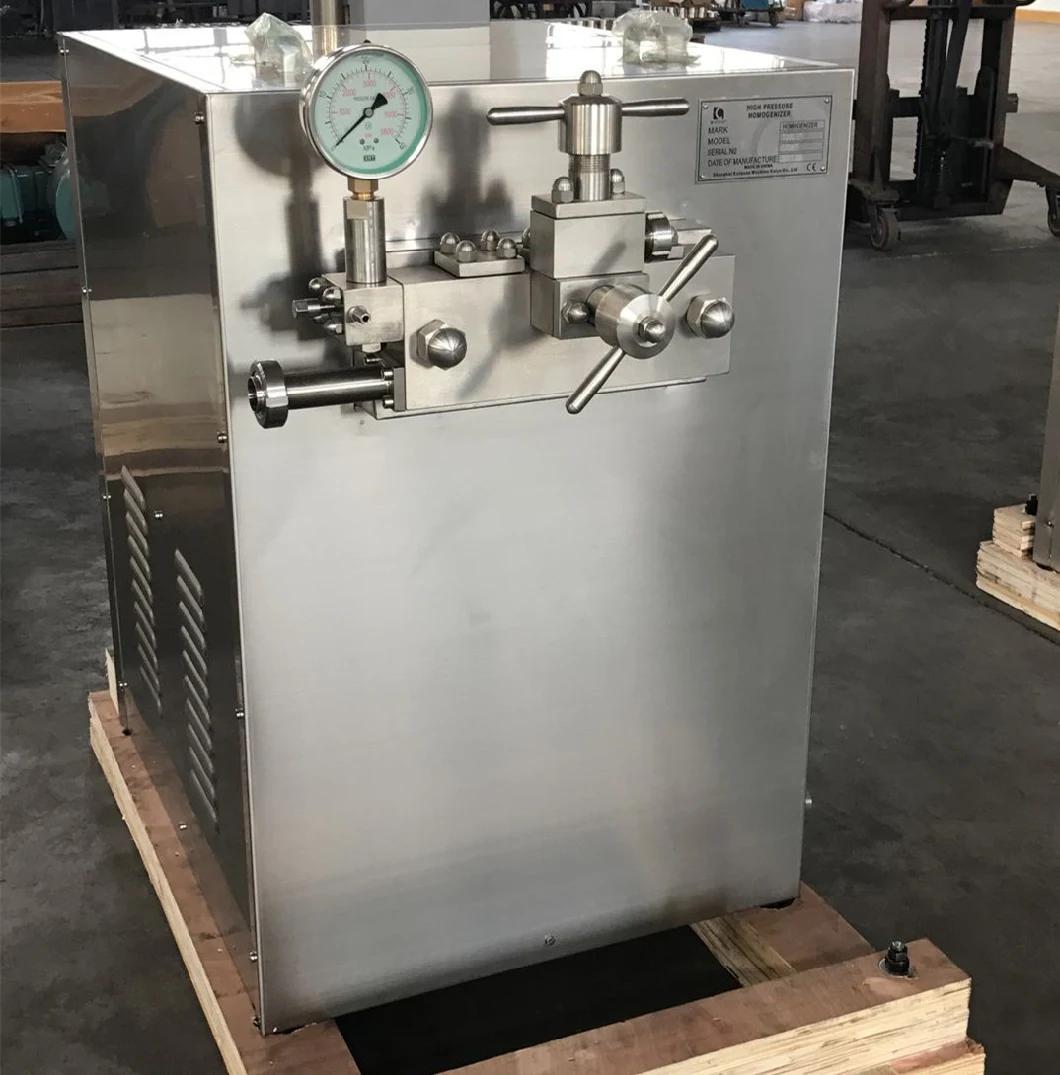

Stainless Steel Milk High Pressure Homogenizer Pump Price
High Pressure Homogenizer Ice Cream Homogenizer Homogenizer Machine Homogenizer Price
Model No. Technical parameter | KQ0.5-25 | KQ1-25 | KQ1.5-25 | KQ2-25 | KQ2.5-25 | GJB3000-25 KQ3-25 | KQ5-25 |
Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Rated flow ( Liters/H ) | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 5000 |
Medium temperature(C) | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 |
Feeding pipe diameter(mm) | 25 | 25 | 25 | 25 | 25 | 32 | 40 |
Discharge pipe diameter(mm) | 15 | 15 | 20 | 20 | 20 | 20 | 25 |
Power of motor(Kw) | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 45 |
Volt and Electricity Flow | 220V,60HZ,3PH | 380V,50HZ | 380V,50HZ | 380V,50HZ | 220V,60HZ,3PH | 380V,50HZ | 380V,50HZ |
Outline dimension (m) Length * width * height | 1.16×0.9×1.24 | 1.16×0.9×1.24 | 1.16×0.9×1.24 | 1.4×1.1×1.42 | 1.4×1.1×1.42 | 1.4×1.1×1.42 | 2.2×1.45×1.1 |
Weight(Tons) | 0.4 | 0.5 | 1.25 | 1.25 | 1.25 | 1.25 | 1.7 |
Feature:
1)Low noise:Noise of transmission is lower than noise of motor. The pointer of pressure meter is steady, and also the range of swing of pointer is less than 2M Pa.
2)Smashing granularity is between 0.1 micron to 0.2 micron, and their average size≤1 micron.
3)Sealing material can work under less than 150ºC, and the parts touching material is made of stainless steel which can stay up to the acid and alkali. All of valves and plungers are made of special material, so they are durable and inexpensive. The bearing is also durable because it is made of special alloy material, which is the more friction, the more hardness.
4)Lubrication of homogenizers is credible, and it only need changing oil the first time when work 800 hours to 1000 hours, since then it need to be changed oil per year later
5)The higher the pressure the finer the material the more uniform particle size, 30MPA the following models, mainly for liquid - liquid emulsification. Pressure of 30MPA above, on the liquid - solid dispersion of liquid into play when the pressure most of the material up to 60MPA reach 2μm particle size less than when the material reaches 80MPA more obvious when the role is mainly used for ultrafine particles broken Materials to achieve the following general 1μm. As to 100MPA above, can be produced more subtle particles, some of the material particles after repeated high pressure homogenization, 0.1-0.5μm can be prepared the following no-grain materials.
High Pressure Homogenizer Ice Cream Homogenizer Homogenizer Machine Homogenizer Price
Stainless Steel Milk High Pressure Homogenizer Pump Price .
