China Big Size 1300X2500mm Flatbed 500W CO2 1325 Laser Cutting CNC Laser Cut Machine for Acrylic/ MDF /Plywood /Leather/ Clothing /Wood

• After-sales Service：Online
• Warranty：3years
• Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
• Cooling System：Water Cooling
• Applicable Material：Nonmetal
• Structure Type：Desktop

=== Base Info ===

• Model NO.：LM1325
• Laser Classification：CO2
• Model No.：Lm1325
• Laser Power：100W,130W,150W,180W,300W
• Driving System：Stepper Motor
• Transport Package：Plywood Box
• Specification：370*220*115cm
• Trademark：LASER MAX
• Origin：China
• HS Code：845611
• Production Capacity：3000sets,Month

=== Description ===

Model

LMR1325 laser engraving and cutting machine

Colour

Grayish and white

Working Table Size

1300mmm *2500mm

Laser Tube

Sealed CO2 glass Tube

Working Table

Blade platform (aluminum blade platform optional)

Laser Power

500W

Cutting Speed

0-100 mm/s

Engraving Speed

0-600mm/s

Resolution

±0.05mm/1000DPI

Minimum Letter

English 1×1mm (Chinese Characters 2*2mm)

Support Fils

BMP,HPGL,PLT,DST and AI

Interface

USB2.0

Software

Rd works

Computer system

Windows XP/win7/ win8/win10

Motor

57 Stepper Motor

Power Voltage

AC 110 or 220V±10%,50-60Hz

Power cable

European Type/China Type/America Type/UK Type

Working Environment

0-45ºC(temperature)      5-95%(humidity)

Position system

Red-light pointer

Cooling way

Water cooling and protection system

Packing Size

2850*1900*1070mm

Gross Weight

850KG

Cutting thickness

Please consult sales

Package

Standard plywood case for export

Warranty

All life free tech support, two year warranty, except consumables

Free accessories

Air Compressor/Water Pump/Air Pipe/Water Pipe/Software and Dongle/ English User Manual/USB Cable/Power Cable

Optional parts

Spare Focus lens

Spare Reflecting mirror

Spare Rotary for cylinder materials

Industrial Water Chiller

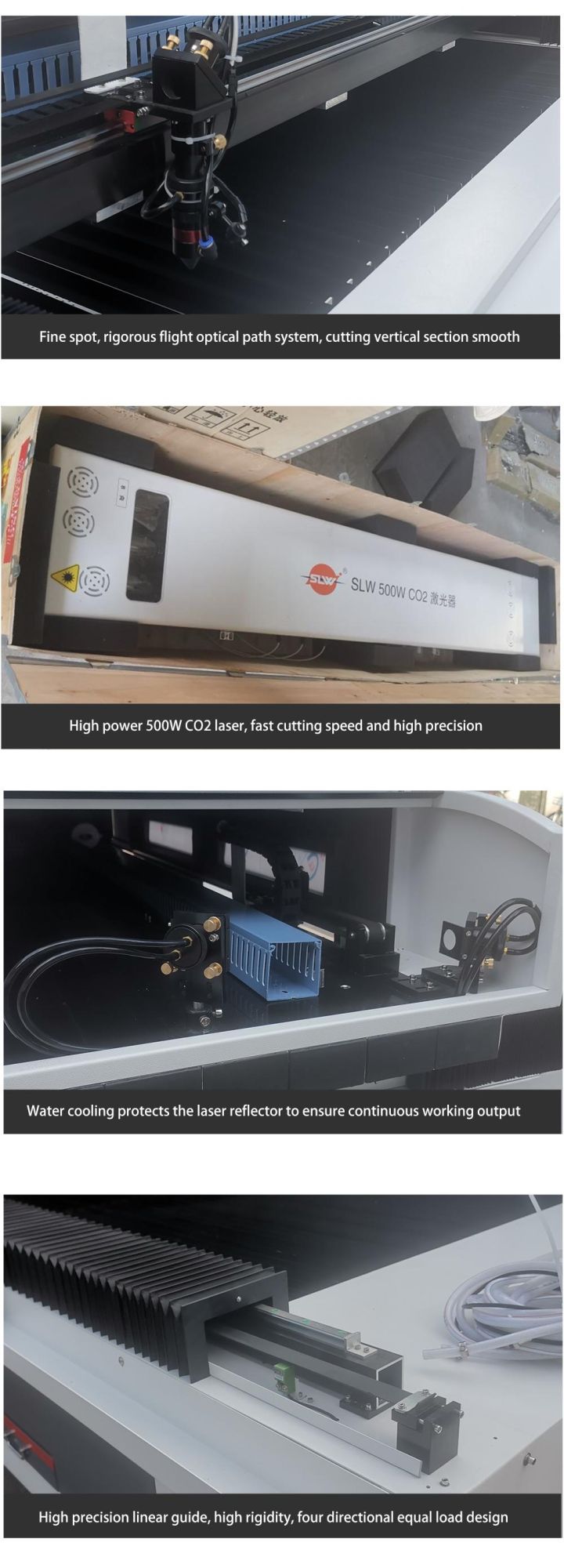

Product Details

Product Applications

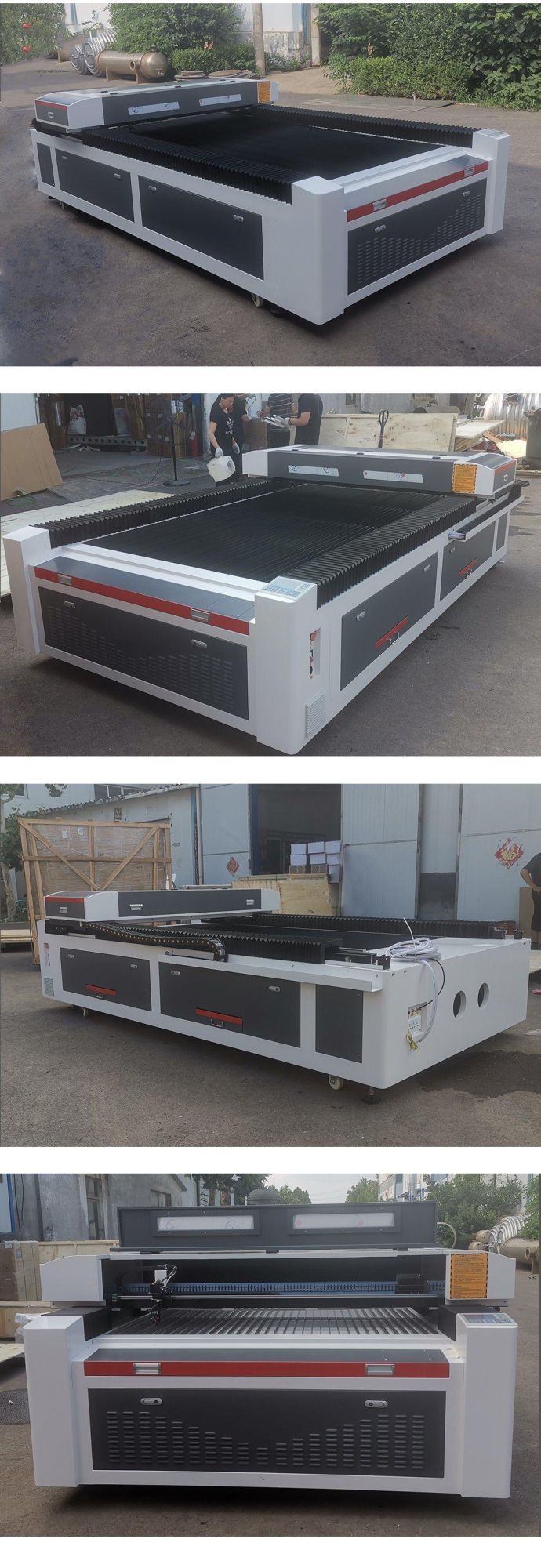

Product real shot
