Geo-Membrance Sheets Extrusion Line PE Film Production Line

=== Base Info ===

=== Description ===

Basic Info.

Model NO. HSD-SJ120/33 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Film Thickness 0.5-2.0mm Width 3000mm Transport Package Standard Export Packing Specification ISO9001: 2008 Trademark Huashida Origin Qingdoa, China HS Code 8477209000 Production Capacity 1200kg/H

Product Description

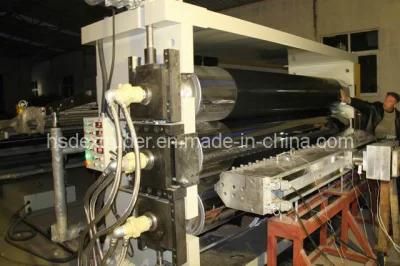

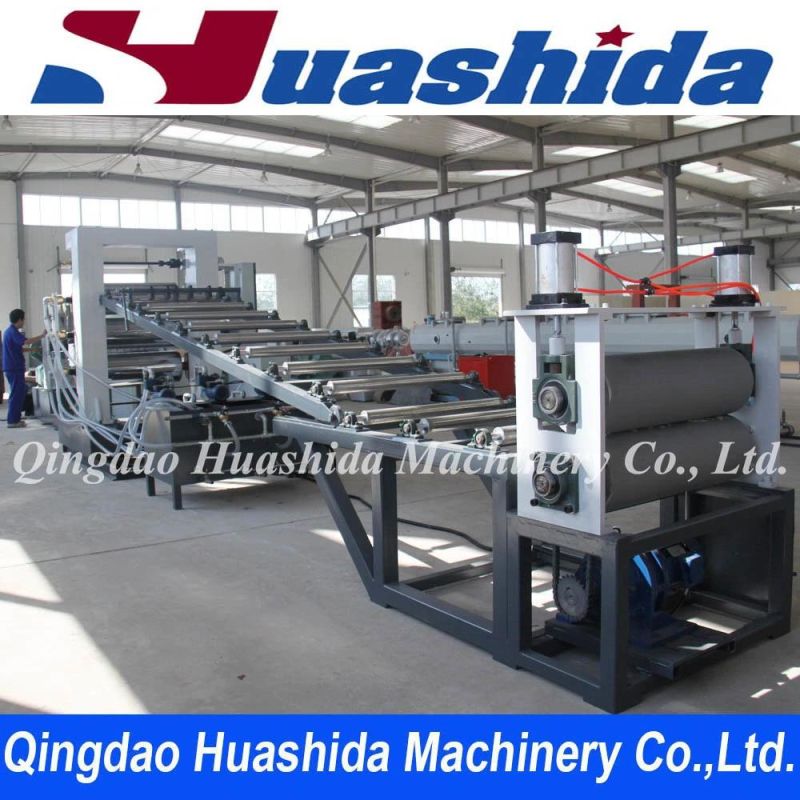

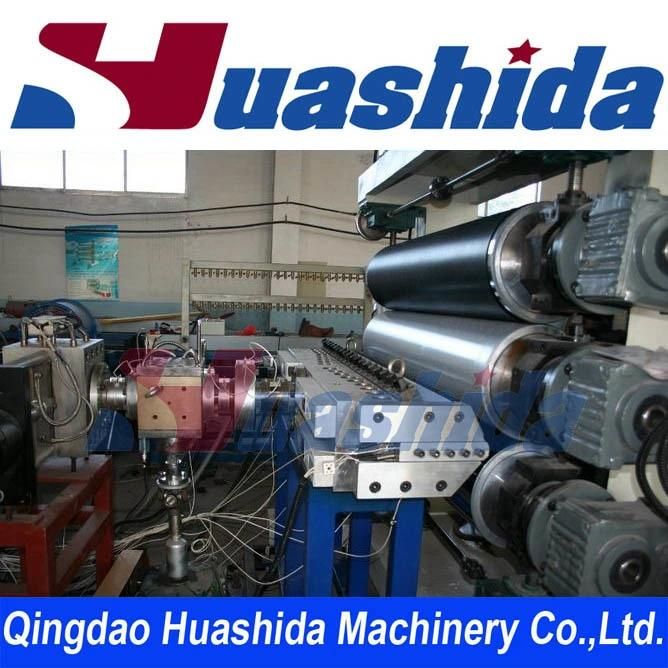

Geo-Membrance sheets Extrusion Line Pe Film Production Line




Water-proof Coiled Material/GEO-membrance Film Extrusion Line is a super-large water-proof Coiled material. The mainly material for the film is varioius kinds of polymer, such as PE, PP, PET, PVC, EVA etc. The max width is 5000mm, the thickness from 0.1 to 3.0mm. In order to meet different customers with different requirements, other auxiliary equipment could be arranged.

Mainly used in the landfill plant, waste water treatment plants, subway project, tunnel construction, artificial lake, industrial water-proof and other projects.

GEO-membrance film characteristics:
1. Width and thickness can be adjusted by online set.
2. High strenght and thoughness.
3. Excellent stress cracking resistance.
4. Large temperature range.
5. Easy operation for construction.
6. Other undergound works and complex terrain.


Extruder	Film Width	Film Thickness	Capacity	Total Power	Dimension(m)
SJ120/33	3000mm	0.5-2.0mm	500kg/h	250kw	20x4x2.5
SJ200/33	8000mm	0.8-3.0mm	1200kg/h	550kw	22x10x2.5

If you have interesting, you can contact with us
