Hydraulic Borehole Core Drilling Rig (HGY-650)
Ruian Shengxiang Packaging Machinery Co., Ltd. / 2022-06-23
=== Base Info ===
=== Description ===
Overview
Product Description

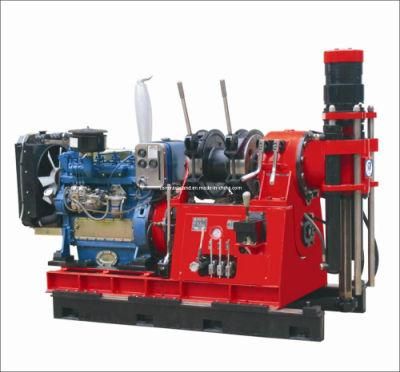

HGY-650 Borehole Drilling Rig:
Product Parameters
| Type | HGY-650 Drilling Rig |
| Drilling depth(m) | 650 |
| Oil pump type | CB-F32C-FL |
| Oil pump nominal displacement(ml/r) | 32 |
| Stroke of moving cylinder (mm) | 400±10 |
| Spindle speed(r/min) | Positive rotation rate: 651172013094401873385828941273 Reverse rotation rate: 72207 |
| Spindle hole diameter(mm) | Φ65 |
| Spindle output torque(N.M) | 3435 |
| Spindle stroke(mm) | 600 |
| Spindle driving force max.(KN) | 60 |
| Spindle lifting power max.(KN) | 80 |
| Speed of single rope of the third layer(m/s) | 0.430.781.352.082.95 |
| Lift capacity of single rope max.(KN) | 33 |
| Diameter & Length of drum(mm) | Φ15x90 |
| Max distance from the hole(mm) | 250 |
| Weight(power unit excepted)(kg) | 1550 |
| Dimensions(L x W x H)(mm) | 2400x1020x1700 |
| Diesel engine type | K4100ZD |
| Diesel engine power (KW) | 36 |
| Oil pump nominal rotative velocity(dmin) | 1800 |
| Oil pump nominal pressure(MPa) | 16 |
| Electric motor type | YB200L-4 |
| Electric motor power(KW) | 30 |
