Beer Fermenter SUS304 Fermentation Tank 300L 500L 1000L 2000L for Brewery

• Condition：New
• Customized：Customized
• Voltage：Customized
• Composition：SUS 304
• Processing Material：SUS 304
• Process：Ferment

=== Base Info ===

• Model NO.：300L 500L 1000L 2000L
• Transport Package：Wooden Package
• Specification：100L 200L 500L
• Trademark：ZH
• Origin：China

=== Description ===

Basic Info.

Model NO. 300L 500L 1000L 2000L Transport Package Wooden Package Specification 100L 200L 500L Trademark ZH Origin China

Product Description

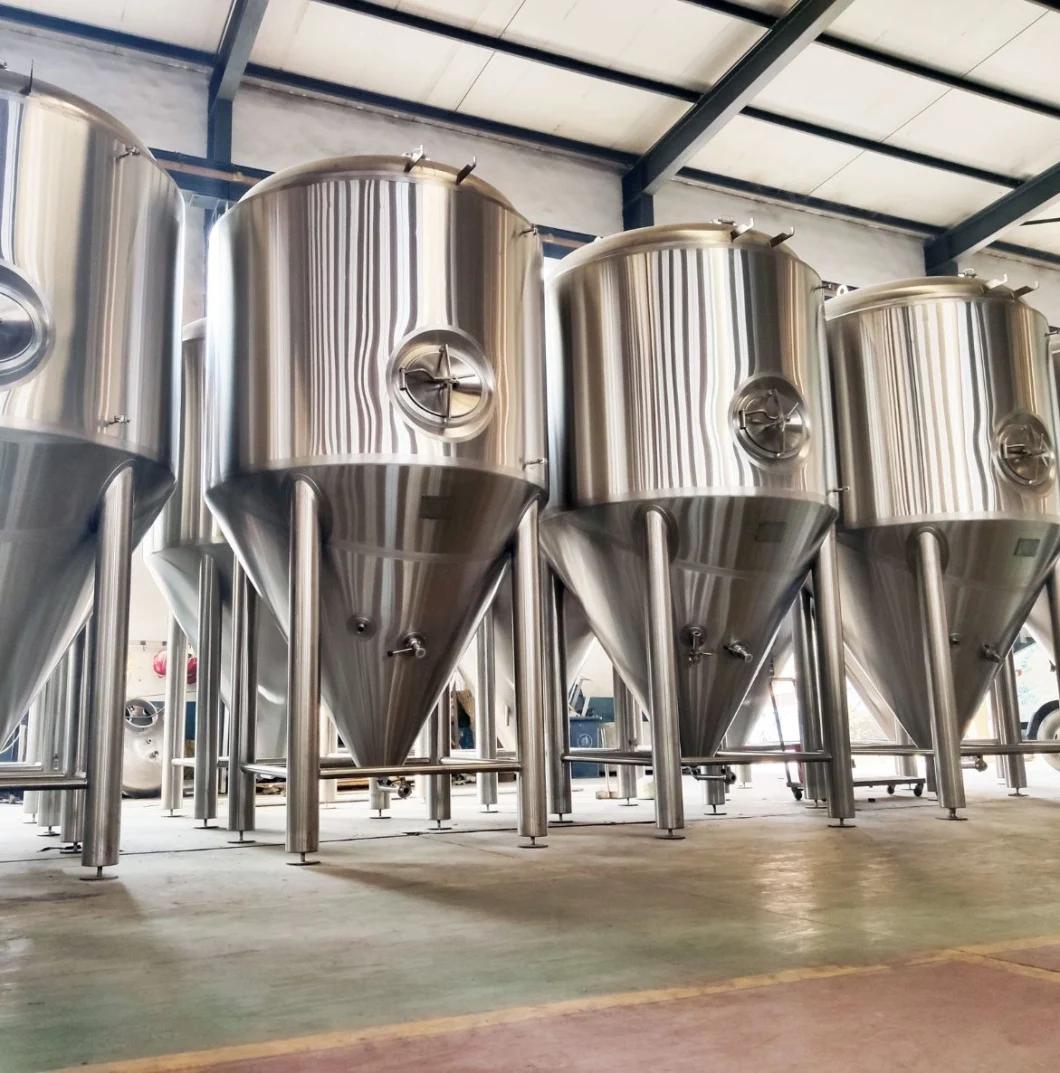

Beer Fermenting Equipment

1. Volume: 100L 200L 300L 500L 1000L 2000L 3000L
2. Material: food grade stainless steel SUS304
3. Cylinder design: cylinder, cylinder thickness: 3.0mm barrel outer thickness: 2.0mm
4. Manhole: top or side manhole
5. Insulation material, polyurethane foam, thickness: 80mm
6. Pressure: design pressure 0-3bar, working pressure 1.5-2bar
7. Lower cone design: cone seal 60°(for yeast discharge)
8. Cooling method: Miller plate jacket double cooling
9. Cleaning method: fixed all-round rotating cleaning ball,
10.Temperature measurement mode: PT100 platinum resistance or Bimetal thermometer, control system: automatic temperature control
11. Upper hop add port
12.Stainless steel legs, screw to adjust the height of the legs

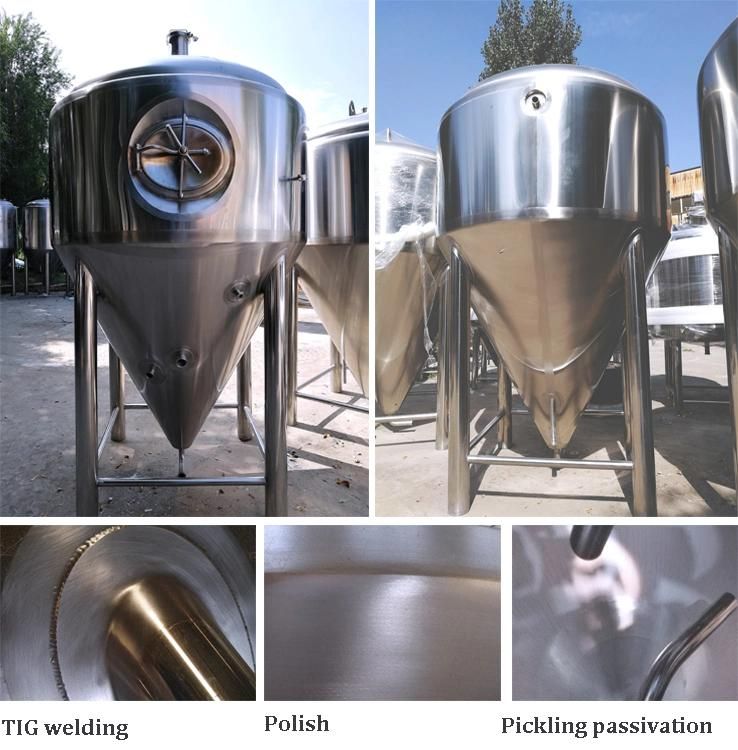

13. Processing technology: pickling and passivation of the inner bladder, polishing of the original plate color or sanding weld, argon arc welding

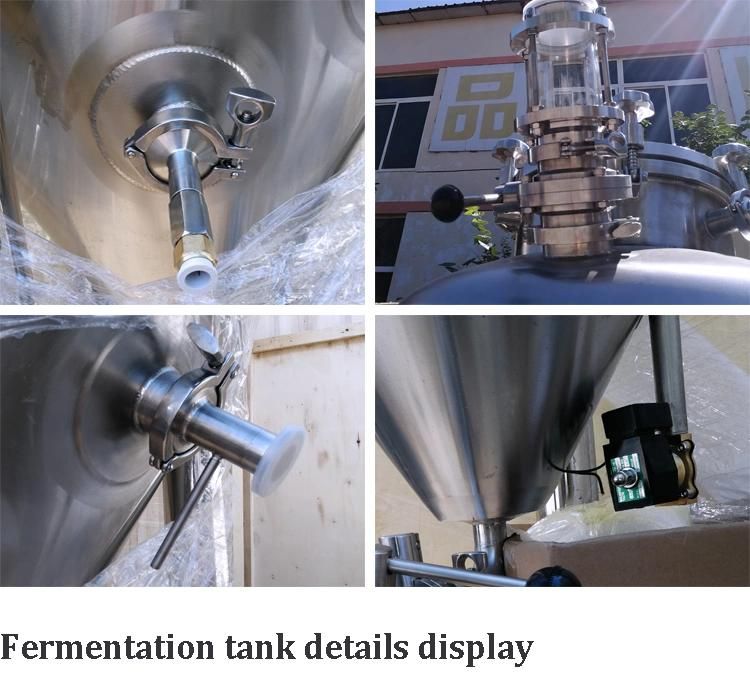

14. Auxiliary equipment: carbon dioxide inflation port, carbon rod, cleaning ball, cleaning valve, sewage valve, sampling valve, mechanical pressure regulating valve, ice water solenoid valve, breathing valve, etc.

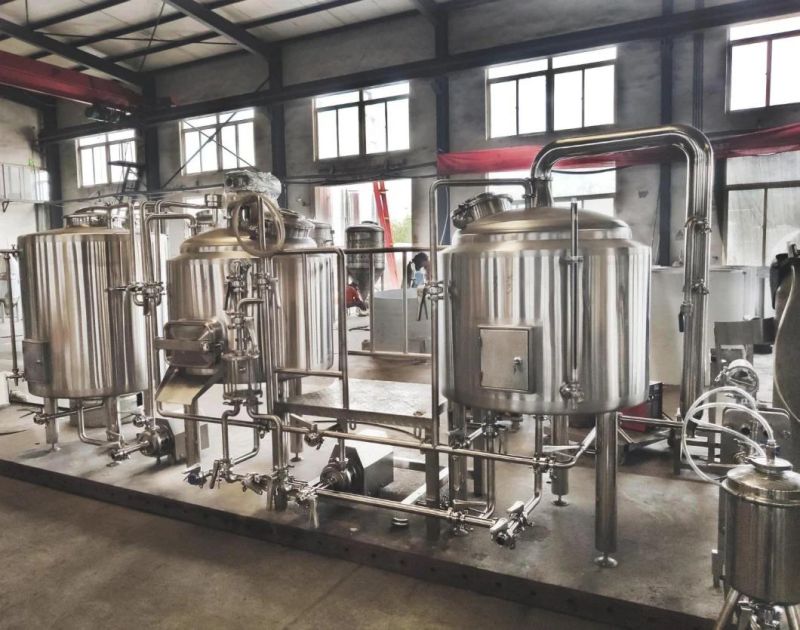

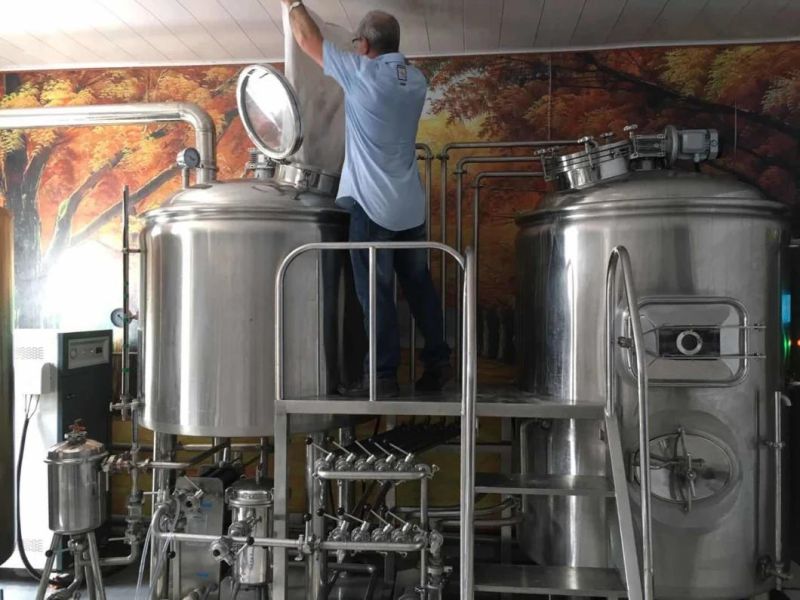

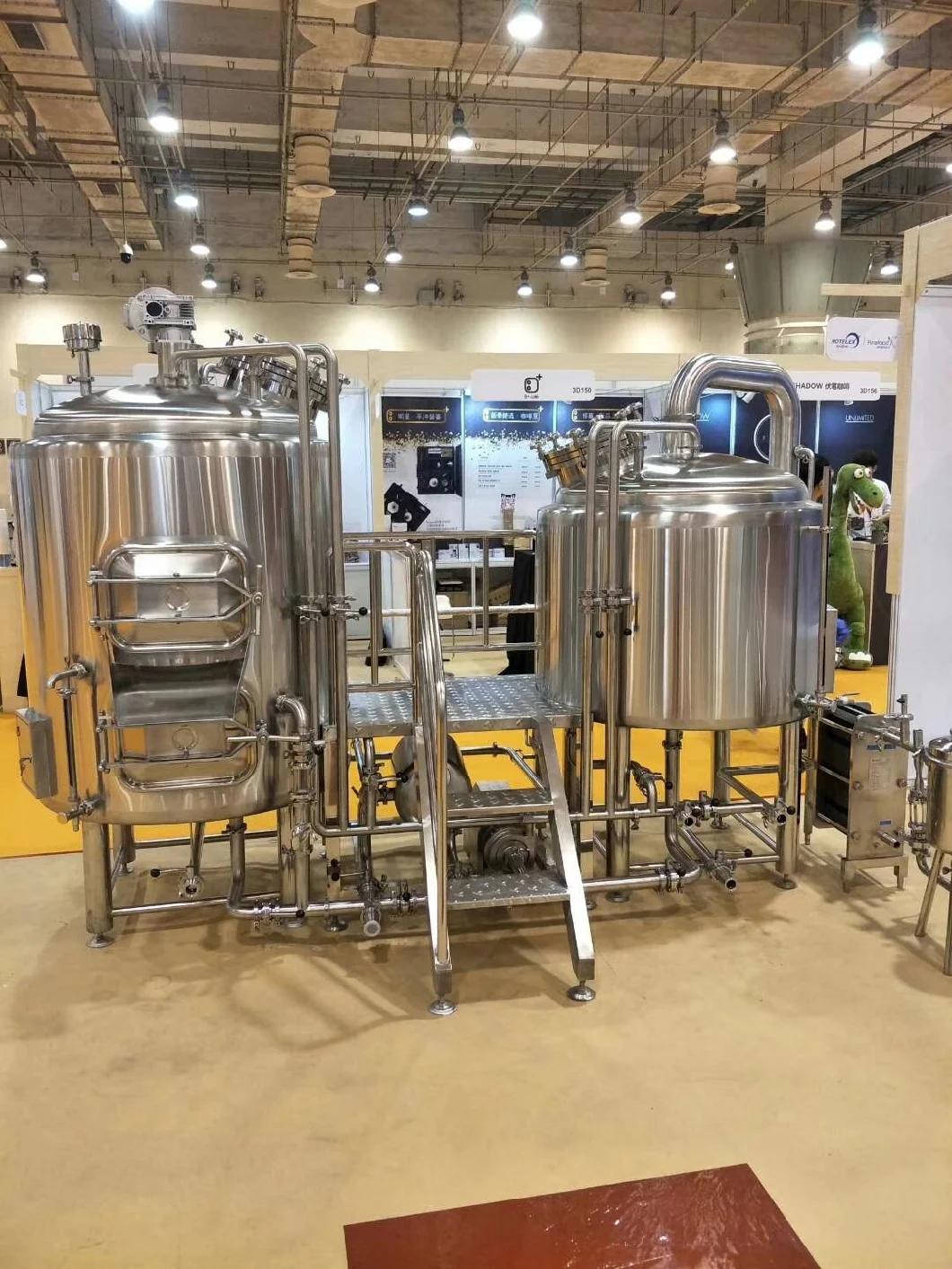

In addition to the fermentation part, there is also have mash system
2 body 3 vessel

2 vessel + hot water tank

Malt milling machine



If you are interested in our products, just contact me directly!
