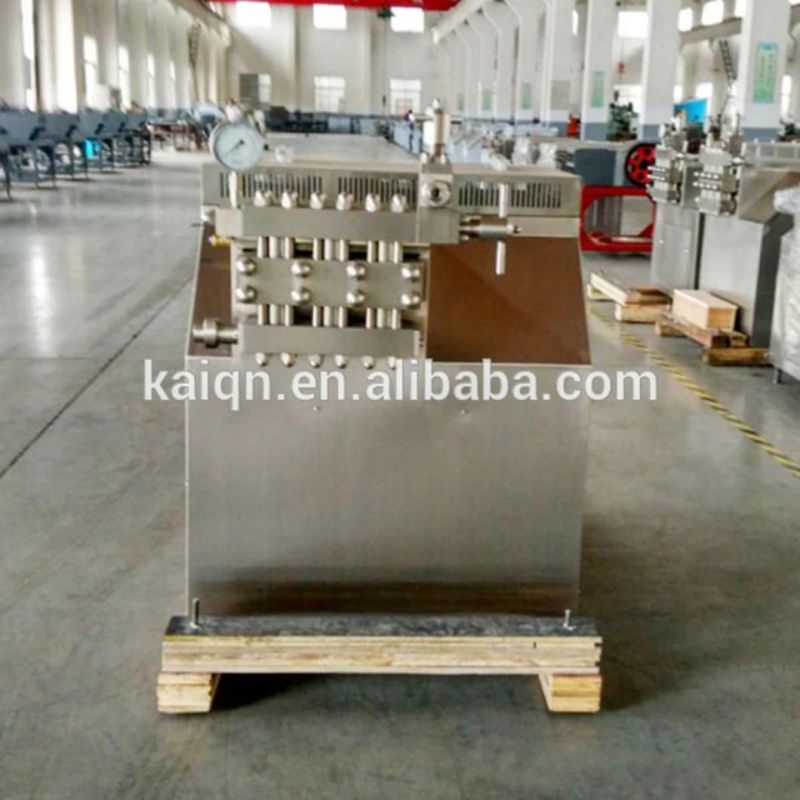

1000L 20-30MPa High Pressure Soymilk Homogenizer (GJB1000L-30)

NINGBO HAISHU JUDIN PACKING PRODUCTS CO., LTD. / 2022-07-05

1000L 20-30MPa High Pressure Soymilk Homogenizer (GJB1000L-30)

  • Process:Thermal Processing
  • Power Source:Electric
  • Certification:CE, ISO9001
  • Automatic Grade:Automatic
  • Application:Milk
  • Customized:Accept

=== Base Info ===

  • Model NO.:GJB Series
  • Name:1000L 20-30MPa High Pressure Soymilk Homogenizer (
  • Usages:Food Industry
  • Product Material:Stainless Steel 304,316
  • Capacity:500L,H--10000L,H
  • Certificated:Ce Certificate
  • Pressure:250bar to 700bar
  • Working Life:More Than 10years
  • Motor Power:5.5-110kw.
  • Warranty:One Year
  • Homogenizer Spare Parts:Provided
  • Homogenizer Electricity:220V,380V,415V,440V
  • Motor Brand:ABB ,Siemens ,China Brand
  • Delivery:10 Days After Reach Your Side .
  • Packing:Wooden Box
  • Stage:Two Stages
  • Transport Package:Standard Wooden Box
  • Specification:CE
  • Trademark:KAIQUAN
  • Origin:Shanghai, China
  • HS Code:8479820090
  • Production Capacity:100 Units,Month

=== Description ===

Basic Info.

Model NO. GJB Series Name 1000L 20-30MPa High Pressure Soymilk Homogenizer ( Usages Food Industry Product Material Stainless Steel 304/316 Capacity 500L/H--10000L/H Certificated Ce Certificate Pressure 250bar to 700bar Working Life More Than 10years Motor Power 5.5-110kw. Warranty One Year Homogenizer Spare Parts Provided Homogenizer Electricity 220V,380V,415V,440V Motor Brand ABB /Siemens /China Brand Delivery 10 Days After Reach Your Side . Packing Wooden Box Stage Two Stages Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

1000L 20-30MPa High Pressure Soymilk Homogenizer (GJB1000-30)
1000L 20-30MPa High Pressure Soymilk Homogenizer (GJB1000L-30)
Liquid Homogeneous Machine Milk Homogenizer Homogenizer Equipment
Milk High Pressure Homogenizer, You Can Buy Various High QualityMilk High Pressure Homogenizer Products from us, the 250bar milk homogenizer FROM US
CE CERTIFICATED HOMOGENIZER FOR MILK, JUICE, DAIRY, ICECREAM, SOYBEAN MILK, HONEY
1000L 20-30MPa High Pressure Soymilk Homogenizer (GJB1000-30)
Tea drinks homogenizer, juice homogenizer
Feature:
This machine are features with good design,convenient operation and simple maintenance,and safety.
1)Low noise:Noise of transmission is lower than noise of motor. The pointer of pressure meter is steady, and also the range of swing of pointer is less than 2M Pa.
2)Smashing granularity is between 0.1 micron to 0.2 micron, and their average size≤1 micron.
3)Sealing material can work under less than 150ºC, and the parts touching material is made of stainless steel which can stay up to the acid and alkali. All of valves and plungers are made of special material, so they are durable and inexpensive. The bearing is also durable because it is made of special alloy material, which is the more friction, the more hardness.
4)Lubrication of  homogenizers is credible, and it only need changing oil the first time when work 800 hours to 1000 hours, since then it need to be changed oil per year later
5)The higher the pressure the finer the material the more uniform particle size, 30MPA the following models, mainly for liquid - liquid emulsification. Pressure of 30MPA above, on the liquid - solid dispersion of liquid into play when the pressure most of the material up to 60MPA reach 2μm particle size less than when the material reaches 80MPA more obvious when the role is mainly used for ultrafine particles broken Materials to achieve the following general 1μm. As to 100MPA above, can be produced more subtle particles, some of the material particles after repeated high pressure homogenization, 0.1-0.5μm can be prepared the following no-grain materials.
Sanitary Pharmaceutical High Pressure Homogenizer (GJB5000L-60)
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
Series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
Inox High Pressure Dairy Juice Homogenizer Pasteurizer Factory Price Factory
1000L 20-30MPa High Pressure Soymilk Homogenizer (GJB1000L-30)
500L 1000L 2000L 3000L Ice Cream Homogenizer Machine For Factory .
             Model No.
Technical
parameter

KQ0.5-25

KQ1-25

KQ1.5-25

KQ2-25

KQ2.5-25
GJB3000-25
KQ3-25

KQ5-25
Rated pressure(MPa)25252525252525
Rated flow ( Liters/H )500100015002000250030005000
Medium temperature(C)≤85≤85≤85≤85≤85≤85≤85
Feeding pipe diameter(mm)25252525253240
Discharge pipe diameter(mm)15152020202025
Power of motor(Kw)5.57.5111518.52245

Volt and Electricity Flow220V,60HZ,3PH380V,50HZ380V,50HZ380V,50HZ220V,60HZ,3PH380V,50HZ380V,50HZ
Outline dimension (m)
Length * width * height
1.16×0.9×1.241.16×0.9×1.24

1.16×0.9×1.24

1.4×1.1×1.421.4×1.1×1.421.4×1.1×1.422.2×1.45×1.1

Weight(Tons)0.40.51.251.251.251.251.7

1000L 20-30MPa High Pressure Soymilk Homogenizer (GJB1000L-30)
1000L 20-30MPa High Pressure Soymilk Homogenizer (GJB1000L-30)
1000L 20-30MPa High Pressure Soymilk Homogenizer (GJB1000L-30)
1000L 20-30MPa High Pressure Soymilk Homogenizer (GJB1000L-30)
1000L 20-30MPa High Pressure Soymilk Homogenizer (GJB1000L-30)
