Stainless Steel Honey Concentration of High Efficiency and Purity

• Condition：New
• Customized：Customized
• Voltage：380V
• Composition：Filtration and Concentration Machine
• Processing Material：Honey
• Process：Concentrate

=== Base Info ===

• Model NO.：FM-600
• Transport Package：Standard Export Wooden Box Packaging
• Specification：1880mm*780mm*1720mm
• Trademark：Sanyuantang
• Origin：Xinxaing, Henan
• HS Code：419899090
• Production Capacity：1.2-1.5t,H, 0.4-0.5t,H

=== Description ===

Model

FM-600

FM-400

Production capacity

1.2-1.5t/8h

0.4-0.5t/8h

Machine dimension

1750*600*1660mm

1600*500*1555mm

Tank diameter

600mm

400mm

Tank height

600mm

600mm

The overall volume

140L

70L

Effective volume

120L

60L

Power

16KW

14KW

Process of honey processing machine

The original honey  → Coarse filtration → Agitation, preheating → Fine filtration → Low temperature, concentrated → Filling



Principle of honey processing machine

By the theory that under high Vacuum condition,boiling point of water will become low and then water in honey can evaporate rapidly and the to get high concentration honey,this set can melt honey crystals, remove dust inside, sterilization, and ext to guarantee quality of honey

Features of honey processing machine

1.This set of Equipment are made of 304 stainless steel, easy to operate, reliable, efficient, vacuum suction honey.
2.They can achieve high vacuum and low concentration temperature is ideal for honey processing equipment.
3.Apparatus comprising: a preheating tank, filter, concentrate tank, a condenser, a vacuum pump.
4.The honey thickener machine can reach high vacuity and lower thickening temperature.
After concentrating the materials will not change color, not change flavor, the quality of materials after concentrating will be very good.
5.Good designed of the structure make the machine small, low noise, easy to operate.

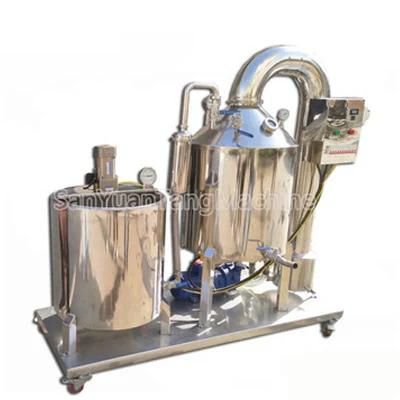

Actual pictures of honey processing machine




If you want to know more about honey processing machine, please contact me.
