Economic Double Heads Metal and Non-Metal CO2 Laser Engraving Cutting Machine

Shenzhen Fortress Industry Co., Ltd / 2022-06-23

Economic Double Heads Metal and Non-Metal CO2 Laser Engraving Cutting Machine

  • Application:Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
  • Cooling System:Water Cooling
  • Technical Class:Continuous Wave Laser
  • Applicable Material:Metal and Non Metal
  • Structure Type:Desktop
  • Laser Classification:Gaseous Laser

=== Base Info ===

  • Model NO.:UG-1390ML-2
  • Laser Technology:Laser Control Fault Cutting
  • Total Working Area:1300*900mm
  • Each Head Working Area:1150*900mm
  • Rated Laser Power:130W & 90W
  • Working Table:Honey Comb&Knife Strip, Double Working Table
  • Auto Lifting Table Ditsance:300mm up and Down
  • Driver and Motor Type:Yako Three Phases Stepper Motor and Driver
  • Guide Rail:Linear Square Guide Rail
  • Transmission Type:Belt Transmission
  • Control System:Leetro Mpc6585
  • Software:Lasercut 6.1
  • Transport Package:Plywood Case
  • Specification:2010*1590*1280mm, 400kgs
  • Trademark:UPGOAL
  • Origin:Jinan City, Shandong Province, China
  • HS Code:8456110090
  • Production Capacity:250set Per Month

=== Description ===

Basic Info.

Model NO. UG-1390ML-2 Laser Technology Laser Control Fault Cutting Total Working Area 1300*900mm Each Head Working Area 1150*900mm Rated Laser Power 130W & 90W Working Table Honey Comb&Knife Strip, Double Working Table Auto Lifting Table Ditsance 300mm up and Down Driver and Motor Type Yako Three Phases Stepper Motor and Driver Guide Rail Linear Square Guide Rail Transmission Type Belt Transmission Control System Leetro Mpc6585 Software Lasercut 6.1 Transport Package Plywood Case Specification 2010*1590*1280mm, 400kgs Trademark UPGOAL Origin Jinan City, Shandong Province, China HS Code 8456110090 Production Capacity 250set Per Month

Product Description

Economic Double Heads Metal and Non-Metal Co2 Laser Engraving Cutting Machine 1300*900mm





Features

1.Welding machine bed with quenching treatment to remove away the stress .Milled by Large precision gantry milling machine ensured the accuracy.

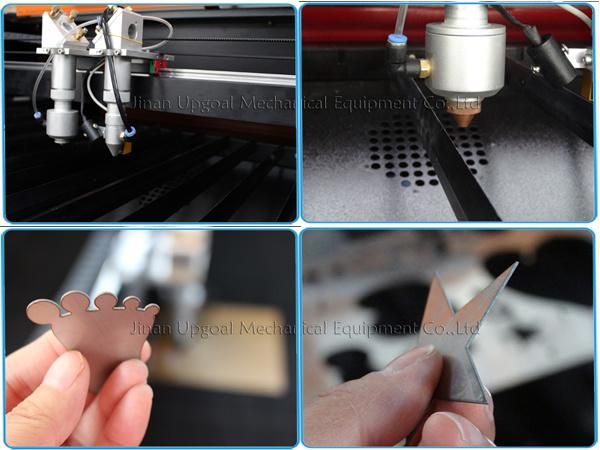

2.Equipped with double metal&non-metal cutting head. Stainless steel, carbon steel, acrylic and wood can be cut.

Laser head A1: with Reci W6 Co2 laser tube, mainly used for thin metal cutting & more thickness non-metal cutting, laser head A2: with Reci W2 Co2 laser tube, used for non-metal engraving and thin non-metal cutting.
Economic Double Heads Metal and Non-Metal CO2 Laser Engraving Cutting Machine

3. Reci seal Co2 laser tube, strong cutting ability and long working life.

Laser Head A1 Reci W6 130W Co2 laser tube  & Laser Head A2 Reci W2 90W Co2 laser tube


4. Adopting imported focus lens with high luminous and mirror with high relativity ensure stable power transference and laser beam consistency.

5. Working Table: double working table and auto lifting table

Honey Comb Table: applicable to various soft materials with Good adsorption effect and low reflection ratio.

Knife Strips: With oxidation treatment and low reflection ratio Ensured cutting quality

Auto Lifting Table:Maximum Loading 50kgs with 300mm up-down distance.
Economic Double Heads Metal and Non-Metal CO2 Laser Engraving Cutting Machine



6.Motion System: Imported High precision, low friction force and stand wear and Hiwin linear square guide rail and blocks with 3M belt ensured stable transmission, lower noise

7.Rationalized placement of the electronic parts. Optimized heat dissipation effect. Ensured system stability and anti jamming capability.

8.With advanced embedded Leetro DSP real-time laser cutting control system, running faster, laser intensity and

speed automatic matching, perfectly realized the consistency of the corner cutting effect high strength cutting table, applicable for metal and non-metal cutting.
Economic Double Heads Metal and Non-Metal CO2 Laser Engraving Cutting Machine




9. Industrial water chiller CW-5200 is equipped to ensure the machine can work last long time.

10. Has the oxygen control system when cutting metal materials.


Economic Double Heads Metal and Non-Metal CO2 Laser Engraving Cutting Machine



Technical Parameters


Effective working area of each laser head

1150*900mm

Laser Type

Co2 sealed-off laser tube

Laser tube power

A1: W6 series, Reci, Beijing

(Rated power: 130W, max. Power: 150W)

A2: W2 series, Reci, Beijing

(Rated power: 90W, max. Power: 100W)

Working table

Double working table:honey comb and strip knife

Auto lifting table

Up and down 300mm automatically

Driver mode

3 phases stepper motor and Driver, Yako brand

Guide rail

Linear square guide rail ( Hiwin,Taiwan)

Transmission

Belt transmission

Control panel

English

Laser output control

1-100% software setting

Engraving speed

0-60000mm/min

Cutting speed

0-10000mm/min

Control system

Leetro MPC6585

Control software

LaserCut 6.1

Design software when delivery

CorelDraw

Control panel

DSP offline

Resolution accuracy

< 0.01mm

Location precision

< 0.01mm

Highest scanning accuracy

2500DPI

Type of cooling

Industrial chiller, CW-5200 cooling

Water protection system

Yes

Oxygen control system

Have

Blow-off system

Air pump for the laser head

Air blower for the machine

Rotary axis

Roller

Working temperature

0-45 °C

Operating humidity

5-95% (without condensed water)

Supporting picture format

PLT,DST,DXF,BMP, DWG,AI,LAS,etc

Voltage

AC 220V±10% 50/60Hz, single phase or

AC 110V±10% 50/60Hz, single phase

Certificate

CE/FDA




Applications

Applied to a certain of metal and non-metal materials Professional engraving/cutting such as stainless steel,carbon steel,wood,organic glass,plastic, cloth.

Widely used in the industry of Advertising, craft gift, shose, toys, garment, model, construction, package, paper and computerized embroidery &lipping.



Reference Sample Photos
Economic Double Heads Metal and Non-Metal CO2 Laser Engraving Cutting Machine

Economic Double Heads Metal and Non-Metal CO2 Laser Engraving Cutting Machine



Reference Working Videos


https://upgoalcnc.en.made-in-china.compyInEaDg01cVvL



https://upgoalcnc.en.made-in-china.como&index=7




 For more information, just feel free to contact us!

     Jinan Upgoal Mechanical Equipment Co.,Ltd

upgoalcnc.en.made-in-china.com,Mob: +86-13869132173
