Cassman 500L Micro Brewing Equipment Beer Brewery Equipment Brewing Fermentation Tanks

Qingdao Kairui Packaging Co., Ltd. / 2022-07-05

Cassman 500L Micro Brewing Equipment Beer Brewery Equipment Brewing Fermentation Tanks

  • Condition:New
  • Customized:Customized
  • Voltage:Customized
  • Composition:Fermenting Equipment
  • Processing Material:Malt, Hop,Yeast,Water
  • Process:Ferment

=== Base Info ===

  • Model NO.:CM-500L
  • Power:Customized
  • Material:SUS304 or SUS316L
  • Polish:0.4um
  • Thickness:Inner:4.0mm, Exterior: 2.0mm
  • Testing Pressure:0.3MPa
  • Insulation Thickness:80mm
  • After-Sales Service:Online-Support, Spare Parts
  • Processing Types:Beer
  • Machinery Test Report:Provided
  • Core Components:Gearbox, Motor, Pump, PLC
  • Heating Way:Steam,Direct Fire,Electric
  • Transport Package:Iron Frame & Wooden Crate
  • Specification:500L
  • Trademark:Cassman
  • Origin:Jinan, China
  • HS Code:8438400000
  • Production Capacity:5000 PCS,Year

=== Description ===

Basic Info.

Model NO. CM-500L Power Customized Material SUS304 or SUS316L Polish 0.4um Thickness Inner:4.0mm, Exterior: 2.0mm Testing Pressure 0.3MPa Insulation Thickness 80mm After-Sales Service Online-Support, Spare Parts Processing Types Beer Machinery Test Report Provided Core Components Gearbox, Motor, Pump, PLC Heating Way Steam,Direct Fire,Electric Transport Package Iron Frame & Wooden Crate Specification 500L Trademark Cassman Origin Jinan, China HS Code 8438400000 Production Capacity 5000 PCS/Year

Product Description

Cassman 500L Micro Brewing Equipment Beer Brewery Equipment Brewing Fermentation Tanks

1. Mill System

Capacity:100kg/h

Description: CE or UL listed Motor, Double roller, distance adjustable, alloy or stainelss steel 304 material.

Optional: Flexible Auger.

Cassman 500L Micro Brewing Equipment Beer Brewery Equipment Brewing Fermentation Tanks

2.Brewhouse system:

• Steam, Electric or direct fire heating

• Dished top and sloped bottom, 100% TIG welding with pure argon gas shield.

•  Working Capacity, +35% head space

• Seperate Hot water tank for option

• Lauter tun with milled false bottom, VFD motor, Sparging and CIP pipe. Level gauge,Side mounted grain outdoor with grain chute,Steam jacket

• Mash tun steam jacket. VFD motor for option.Level gauge

• 8 square meter Plate heat exchanger

• Sanitary Centrifugal pump

• Digital control panel or PID/PLC control system

• SUS 304 tank, pipe, valves,  platform and integrated stairs etc.

• Stringent tank leakage test by water and pressured gas.

Cassman 500L Micro Brewing Equipment Beer Brewery Equipment Brewing Fermentation Tanks
Cassman 500L Micro Brewing Equipment Beer Brewery Equipment Brewing Fermentation TanksCassman 500L Micro Brewing Equipment Beer Brewery Equipment Brewing Fermentation Tanks

3. Fermentation tank:

• Working capacity,  +25% head space

• SUS 304 material insulated tank.

• 100% TIG welding with pure argon gas.

• 0.3 Mpa test pressure. 0.2 Mpa working pressure.

• Dimple cooling jacket, side and cone of the tank. NPT connection.

• Top relief valve(PVRV), Top dry hopping port.

• Sanitary side manway (top for option).

• Sample valve. Pressure valve, Co2 relief valve, DIN/TC racking arm.

• 60 degree cone.carbonation stone & Level tube for choice, CIP pipe

• 24V solenoid valve.Dial Thermometer. PT100 sensor.

Cassman 500L Micro Brewing Equipment Beer Brewery Equipment Brewing Fermentation TanksCassman 500L Micro Brewing Equipment Beer Brewery Equipment Brewing Fermentation Tanks
Cassman 500L Micro Brewing Equipment Beer Brewery Equipment Brewing Fermentation Tanks
Cassman 500L Micro Brewing Equipment Beer Brewery Equipment Brewing Fermentation Tanks

4. All other relative support system such as Steam boiler, burner, Cooling system, Control system, Brite tank, Bottle Filling line, Canning line , Beer keg can be provided.

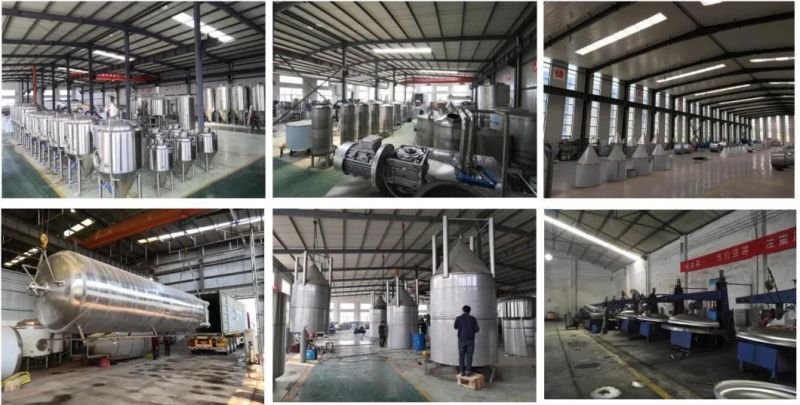

Cassman Factory

Cassman is the leading Microbrewery equipment supplier in China, our service include the brewery design, equipment manufacture, Installation at site and brewing technology transfer.

We provide complete beer brewing solutions that include: malt handling system, brew house system, beer fermenting/storage system, cooling system, cleaning system, control system, package line.

Established in 2010, Cassman brewing equipment has been exported to more than 20 countries, which include USA, Canada, Australia, Japan, UK, France, Germany, Denmark etc.

Cassman 500L Micro Brewing Equipment Beer Brewery Equipment Brewing Fermentation Tanks
Cassman 500L Micro Brewing Equipment Beer Brewery Equipment Brewing Fermentation Tanks

Project Reference
Cassman 500L Micro Brewing Equipment Beer Brewery Equipment Brewing Fermentation Tanks

Certification

Cassman 500L Micro Brewing Equipment Beer Brewery Equipment Brewing Fermentation Tanks
