Widely Used High Speed Fiber Laser Soldering Machine for Metal

• Application：Biomedicine, Electronic Industry, Automotive Industry, Manufacturing Industry
• Technical Class：Continuous Wave Laser
• Control：Automatic
• Power Density：Deep Fusion Welding
• Laser Classification：Optical Fiber Laser
• Type：Portable Welding Machine

=== Base Info ===

• Model NO.：fiber laser soldering machine
• Product Name：Fiber Laser Soldering Machine
• Laser Source：Raycus
• Wire Feeder：Auto
• Laser Power：1000W
• Control System：China Mainland
• Laser Wave Length：1070
• Fiber Length：Standard10m , Maximum 15m
• Welding Speed Range：0~120 mm,S
• Cooling Chiller：Industrial Water Chiller
• Working Environment Temperature Range：15~35 ºC
• Welding Thickness Recommendations：0.5-3mm
• Working Voltage：220 V
• Welding Gap Requirements：Max 0.5mm
• Manual and Video：One Set
• Free Training：Yes
• Transport Package：Plywood Case Packaging
• Specification：670*1150*1200mm
• Trademark：Baokun Brand
• Origin：China
• HS Code：8456110090
• Production Capacity：100 Sets,Month

=== Description ===

Basic Info.

Model NO. fiber laser soldering machine Product Name Fiber Laser Soldering Machine Laser Source Raycus Wire Feeder Auto Laser Power 1000W Control System China Mainland Laser Wave Length 1070 Fiber Length Standard10m / Maximum 15m Welding Speed Range 0~120 mm/S Cooling Chiller Industrial Water Chiller Working Environment Temperature Range 15~35 ºC Welding Thickness Recommendations 0.5-3mm Working Voltage 220 V Welding Gap Requirements Max 0.5mm Manual and Video One Set Free Training Yes Transport Package Plywood Case Packaging Specification 670*1150*1200mm Trademark Baokun Brand Origin China HS Code 8456110090 Production Capacity 100 Sets/Month

Product Description

                        New model fiber 1000w steel sheet metal tube laser handheld welding machine


Q: There are so many fiber laser soldering machine , which one should I choose?
A:  you can teel us what material you want to welding, also with the thickness, then we will choose the suitlable laser power for you.

Q: what is the machine payment term ?

A: 1. 30% payment for deposit, 70% balance payment before the shipping
     2. L/C payment
     3.Through Made -in -China online trade

Q: Before the balance payment, but I don't satisfied with the machine your produce , what should I do?
A: After the machine finished the production, we will text the machine at least 8 hours, after that, we will send you the machine pictures and video for you text, if you have any place not satisfied with our machine, we can change it until you satisfied, then you can pay the balance payment.

Q: Machine delivery time ?
 A: Within 15 working days after get your payment.

 Q: Can I get the sample done by your machine?
 A: Sure, you can send us the materials you want to process, then we can made a sample for you , you can see the precision more clearly.

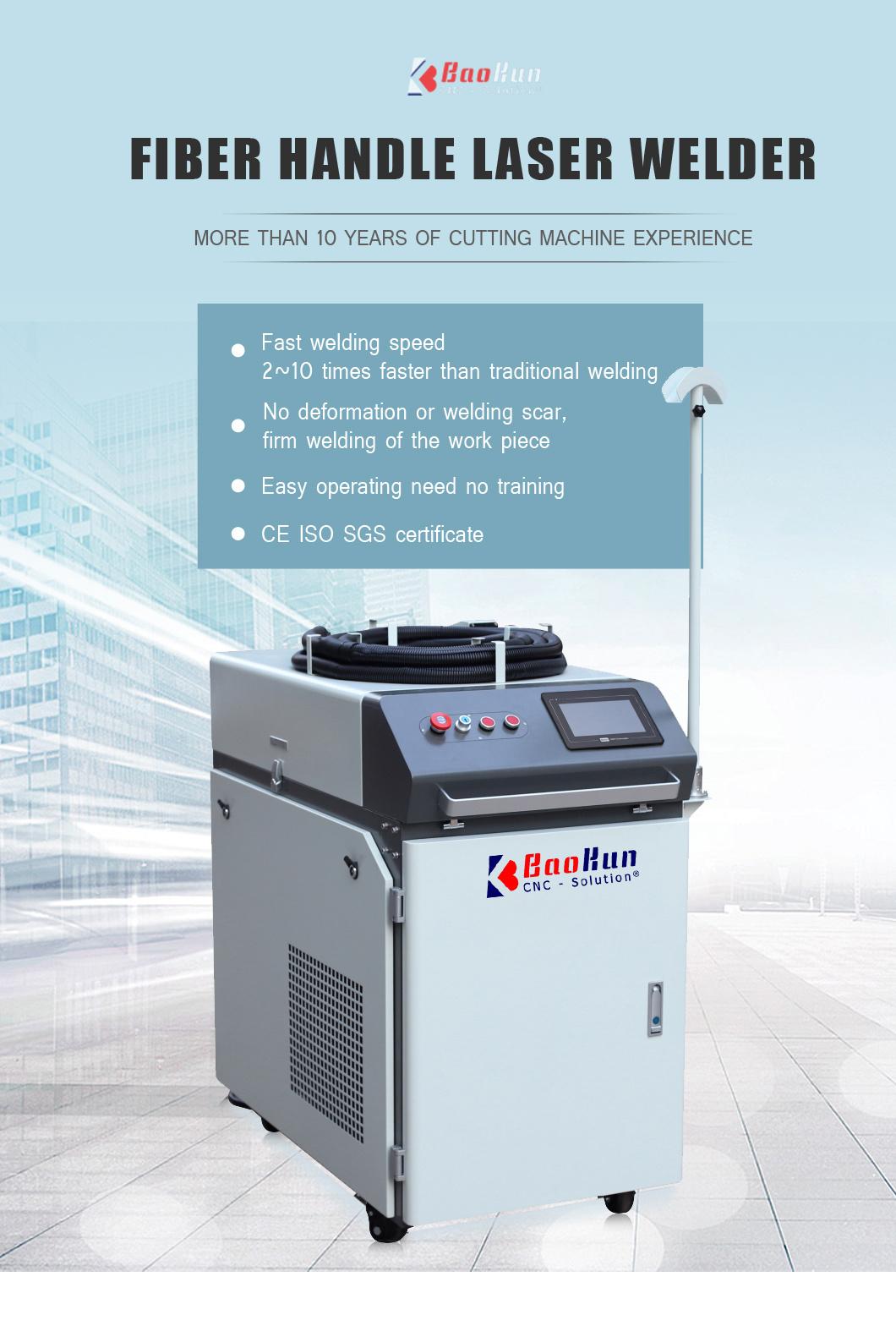

Fiber laser soldering machine  the latest generation fiber laser source and Independently developed , Our hand-held laser welding machine Filled in the blank of hand-held welding in laser equipment industry.

Its advantages are simple operation, welding seam beautiful, fast welding speed and no consumables. Welding in thin stainless steel plate, iron plate, aluminum plate and other metal materials can perfectly replace the traditional argon arc welding and electric welding technology.

Can be widely used in cabinets, kitchen, staircase elevator, shelf, oven, stainless steel door and window guardrail, distribution box, stainless steel home and other industries complex and irregular welding procedures.

Name	Parameter
Machine model	fiber laser soldering machine
laser power	1000W
laser wave length	1070 NM
Fiber length	standard10M / Maximum 15M
operate mode	continuation/ modulate
Welding speed range	0~120 mm/s
Cooling chiller	Industrial water chiller
Working environment temperature range	15~35 ºC
Humidity range of working environment	< 70% No condensation
Welding thickness recommendations	0.5-3mm
Welding gap requirements	≤0.5mm
working voltage	220 V


1.In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
2.Every machine must be tested before delivery for 8 hours , all of them are absolutely qualified
3.24months guarantee of the whole fiber laser soldering machine .
4. Main parts(except the consumable parts) shall be changed free of charge if there is any problem during the warranty period.(human reason not included )
5. Engineers 24 hours online service, when you have the problem , contact us anytime, we support face time by whatsapp wechat,,and so on
6. We will provide the consumable parts at an agency price when you need replacement
7..Our staff can be sent to your company to install or adjust if necessary.
