Big Power Fiber Laser Cutting Machine for Metal Tube

• Application：Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Aerospace Industry, Automotive Industry
• Cooling System：Water Cooling
• Technical Class：Continuous Wave Laser
• Applicable Material：Metal
• Structure Type：Gantry Type
• Laser Classification：Fiber Laser

=== Base Info ===

• Model NO.：GQ-3015
• Laser Technology：Laser Control Fault Cutting
• Laser Power：500W
• Laser Wavelength：1080mm
• Working Size：3000*1500mm
• Lasing Midium：Yvo4
• Min Line Width：Less 0.15mm
• Max Travel Speed：60m,Min
• X Axis Route：1500mm
• Y Axis Route：3000mm
• Carbon Steel Cutting Thickness：0.5mm-4mm
• Transport Package：Continer
• Specification：FCC, SGS, FDA, CE, ISO
• Trademark：HOLY LASER
• Origin：Yiwu, Zhejiang, China
• HS Code：8456100090
• Production Capacity：500sets,Year

=== Description ===

Laser Power

500W/800W/1000W/2000W

Laser Source

MAX/Feibo/RAYCUS

Laser Type

Fiber Laser

Laser Technology

Germany Technology

XYZ Working area

1500*3000 mm

Max. Cutting Thickness (Carbon Steel)

0.5 -4mm

Max. Cutting Speed

0-45 Meters / Min (up to materials)

Laser wavelength

1080nm

Minimum line width

≤0.1mm

Location precision

≤±0.05mm

Re-location precision

±0.02mm

Max. moving speed

60m/min

Supporting Format

PLT, DXF, BMP, AI

Power demand

380V/50Hz

Cooling Way

Water Cooling

Worktable max. load

1000KGS

Transmission Method

Ball Screw Transmission

Table-driven system

Japanese Imported Panasonic Servo Motor & Driving System

Focus Method

Following and Automatic Adjust Focus

Control Method

Offline Movement Control

Control software

Cypcut  Laser Cutting Software

Application:
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances,automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.

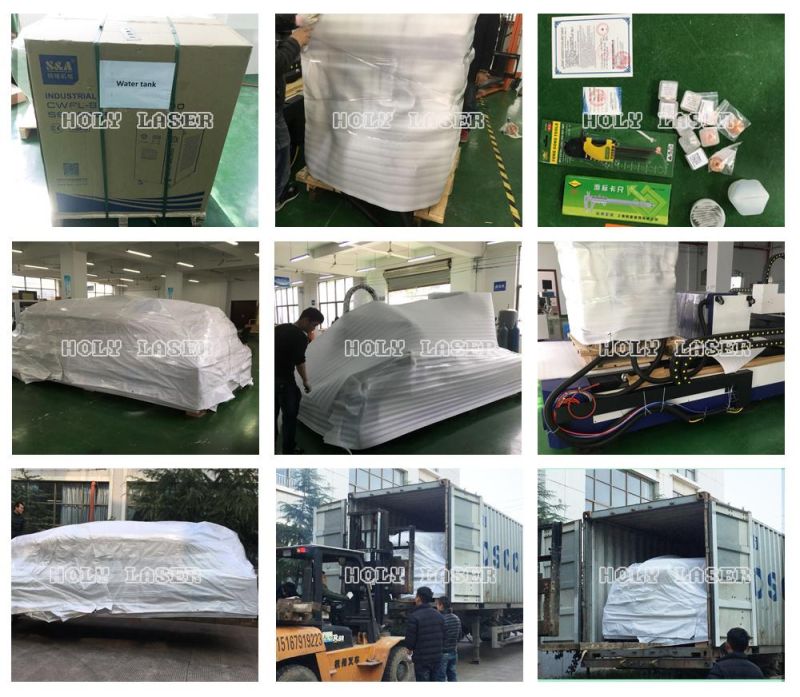

Package Details:
. Standard export filght case with wheels package (Easier to move and ship)
. Fumigation Exemption
. Support Air shipping & Sea shipping

Trade Terms:
1, Payment: By L/C or T/T etc, and you can contact us.
2, 100% payment if the total amount less than 10000$, 30% deposit and 70% balance before shipment.
3, Lead time: 7-10 working days.
4, MOQ: 1set.

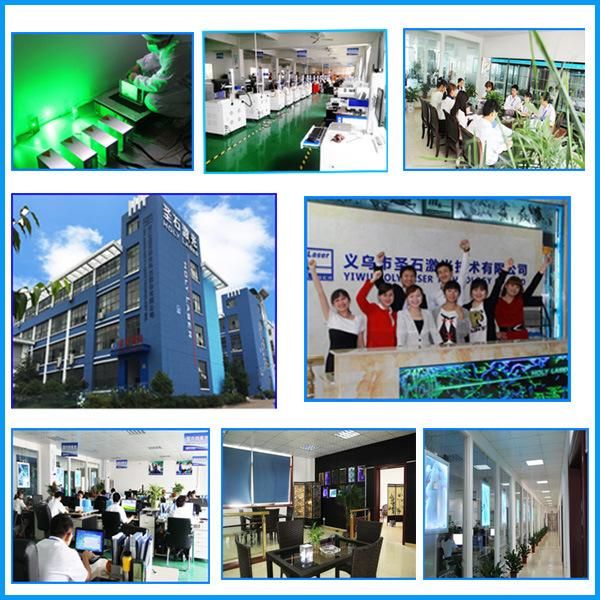

Company Show:
Zhejiang Holy Laser Technology Co.Ltd ( Stock Code: 835890) is specializing in manufacturing Laser Marking Machine, Glass Laser Engraving Machine, Laser Cutting Machine and etc from 2006, which is a national high-tech enterprise integrating with R&D, manufactuning and Selling. The Company have obtained independent Export and Import Rights, meanwhile, all the products have passed the CE,FCC,SGS,TUV and FDA special for USA market. Warmly welcome you to visit our facotry.
