Cnrm Factory PP Plastic Rope Machine 3 Strands Rope Twisting Machine

=== Base Info ===

=== Description ===

Basic Info.

Model NO. HDTM Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Non-Automatic Computerized Non-Computerized Rope Range 3-32mm Rope Lay S Z Strand 3 or 4 Advantage High Quality Brand Cnrm Model Hdtm Material PP PE Nylon Polyester Transport Package Container Specification 5.5*2.1*2.1m Trademark CNRM Origin China HS Code 84794000 Production Capacity High

Product Description

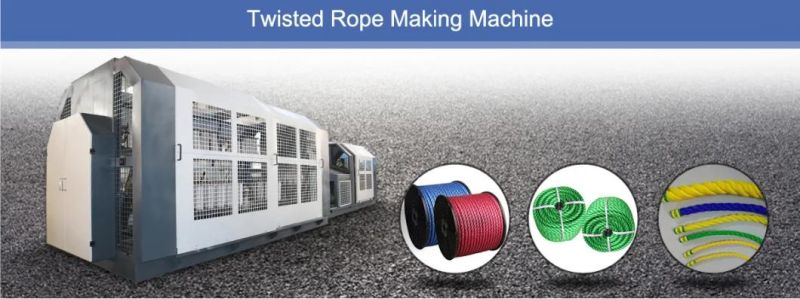

Plastic PP PE Nylon PET Rope Making Machine

Plastic PP PE Nylon PET Rope Making Machine InfoPlastic PP PE Nylon PET Rope Making Machine is available in 3 & 4 Strands ( 3 & 4 Ply ) in different Models for Rope dia. 3 mm To 32 mm for the production of finished coiled ropes from natural and synthetic fiber from start to finish in one continuous operation. Ropes can be made from PA (Nylon), PP/HDPE Monofilament, PP Dan line, PP Fibrillated Tapes, Multifilament, Cotton, Jute, Manila and Sisal etc. from the same machine.

Plastic PP PE Nylon PET Rope Making Machine Parameters

Item	HDTM-M33	HDTM-M44	HDTM-M55	HDTM-M66	HDTM-M77
Rope Range	3-10mm	6-14mm	12-22mm	18-26mm	22-32mm
Lay Range	15-38mm	20-50mm	32-78mm	40-105	45-130
Power	5.5kw	7.5kw	11kw	18.5kw	20kw
Take-up capacity	Φ130*Φ500*Φ320	Φ130*Φ600*Φ400	Φ130*Φ600*Φ400	Φ140*Φ700*Φ450	Φ200*Φ550*Φ650
Size of pay-off bobbin	175*300mm(8)	175*300mm(8)	175*300mm(8)	175*300mm(8)	175*300mm(8)
Qty of 8" bobbin	8*3 or 8*4	24*3 or 24*4	32*3 or 32*4	46*3 or 46*4	64*3 or 64*4
Machine weigth	2500kg	3500kg	5000kg	6000kg	7000kg

Plastic PP PE Nylon PET Rope Making Machine Key Features

-Power transmission by timing belts.
-Auto stop after yarn breakage to control wastage.
-Digital length counter meter.
-Door Sensor.
-A.C. frequency drive.
-Direct coiling head.







HAIDAI Company
Taian Haidai Rope Machinery Science Technology Co., Ltd. has achieved industrialization and large-scale production from the research and innovation with 10 years' experience in the rope and net machinery field. Our rope and net machinery mainly includes: extruder, ring twister, twisted rope making machine, braided rope machine, ball winder, spool winder, coiler machine, hank winding machine and package machine and more than 10 kinds series production; Our product performance has reached international and domestic advanced technology level with unique design concept, advanced manufacturing technology, perfect quality guarantee.
