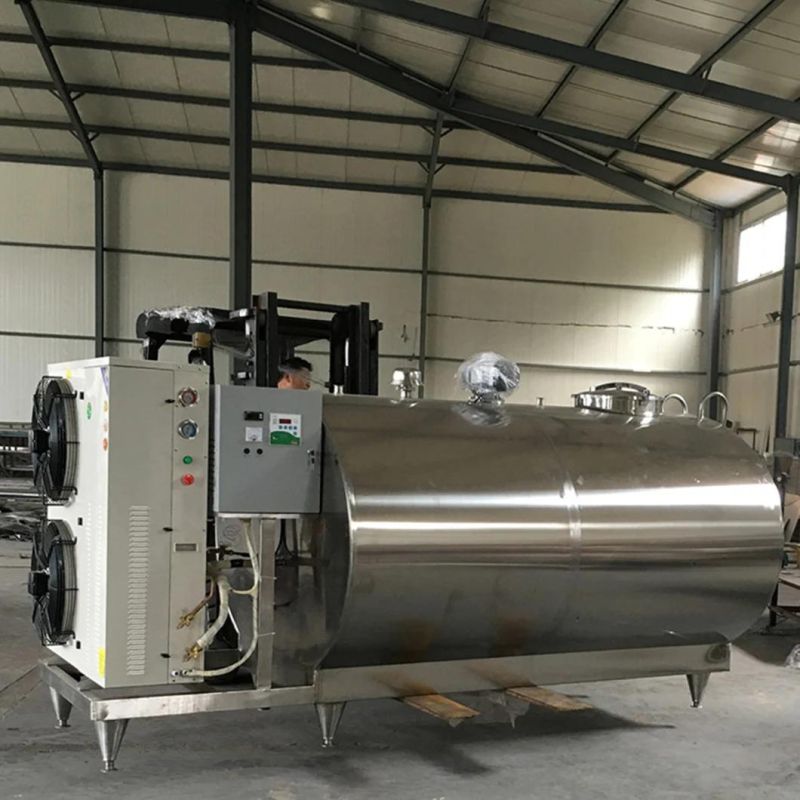

Milk Cooling Tank Milk Storage Tank Milk Tank Chilling Tank

• After-sales Service：Online Service
• Warranty：One Year
• Process：Frozen and Chilled
• Power Source：Electric
• Certification：CE, ISO9001
• Automatic Grade：Automatic

=== Base Info ===

• Model NO.：KQ500-10000L
• Application：Milk
• Customized：Customized
• Name：Milk Cooling Tank Milk Storage Tank Milk Tank Chi
• Milk Cooling Tank：Cusotmized
• Refrigerant：R404A , R22
• Compressor：USA Copeland
• Fresh Bulk Milk Cooling and Storage：300litres to 10000litres
• PU Insulation Wall Thickness：70mm
• Outside Shape：Vertical and Horinzontal
• Packing：Wooden Box
• Material：SS304,316
• MOQ：1set
• Working Life：More Than 10 Years
• OEM：Yes
• Voltage ,Hz ,Phase：Make It to Your Order
• Control Box：Yes
• Manual Book：Yes
• Transport Package：Standard
• Specification：Based on special order
• Trademark：KQ
• Origin：China
• HS Code：8479820090
• Production Capacity：1000

=== Description ===
NoModelMC-5000LMC-3000LMC-2000L1Volume 5000L3000L2000L2Materials used for construction Stainless steel 304 Stainless steel 304 Stainless steel 304 3Shape and orientation Horizontal, Closed Cylindrical4Overall Dimensions    5Weight (kg) 6605004306Thickness of inner shells mm2227Thickness of outer shells mm1.51.51.58Thickness of insulation50mm PU50mm PU50mm PU9Number of agitator 11110RPM of agitator 30303011Washing / CIP cleaningcleaning ballcleaning ballcleaning ball12Make of compressor CopelandCopelandCopeland13Size   14Number of Compressors 21115Model of Compressor cooled Aircooled Aircooled Air16Number of condensers 21117Number of fans 42218Type of refrigeration R22/R404R22/R404R22/R40419Control panel  11120power supplyCustomized 21PRICFE FOB NINGBOThe price you found in our site may not be the exact price for the milk cooling tank you are looking for.
you can get in touch with us via email and  to get a reasonable price of your own milk cooling tank22Quantity price
Milk Cooling Tank  Milk Storage Tank Milk Tank Chilling Tank
producing milk cooling tanks, collection centres, tubular coolers, milking machine components, pasteurisers, ice water
Adopting internationally-advanced technology of the 1900's it cools by circular and vertical wall. The fully automatic control system makes whole process of observation available. The cooled raw milk can reach rapidly needed temperature of 4~5 and keeps constant, which can prevent the generation of bacteria and make raw milk as Agrade cream.

The adopted imported compressor features high performance, energy saving, full seal and protection system that prevents damage due to overload. Also fitted are high / low liquid level control system and automatic cyclespray and agitating device .
