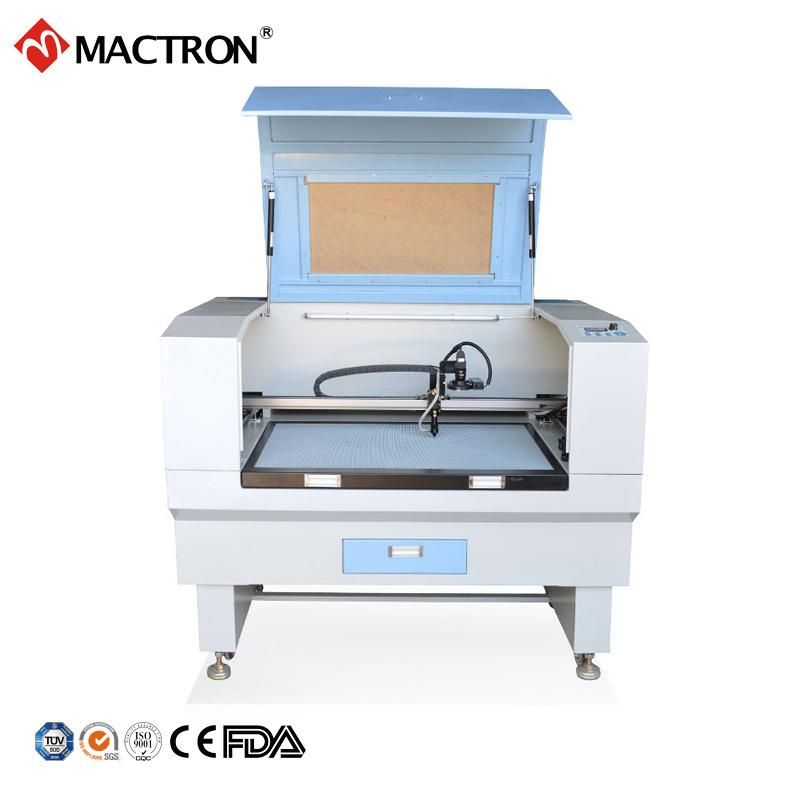

Laser Engraving Machine for Small Business

• Application：Beverage, Textiles, Food, Medical, Chemical
• Type for Cutting Machine：Laser Cutting Machine
• Automation：Automatic
• Wavelength：10.6um
• CCD Resolution Ratio：3,200,000pixels
• Cutting Precision：0-36000mm,Min

=== Base Info ===

• Model NO.：MT-960C
• Cutting Speed：0-64000mm,Min
• Focal Length：38.1,50.8,63.5,76.2,101.6mm
• Location Precision：0.015mm
• Min.Line Width：0.15-0.3mm
• Controlling Formats Supported：DSP High Speed Contr
• Gross Power：<1250W
• Safety Protection Class：IP54
• Transport Package：Standard Export Wooden Packing
• Trademark：Mactron
• Origin：China
• Production Capacity：500 Sets,Month

=== Description ===

Basic Info.

Model NO. MT-960C Cutting Speed 0-64000mm/Min Focal Length 38.1,50.8,63.5,76.2,101.6mm Location Precision 0.015mm Min.Line Width 0.15-0.3mm Controlling Formats Supported DSP High Speed Contr Gross Power <1250W Safety Protection Class IP54 Transport Package Standard Export Wooden Packing Trademark Mactron Origin China Production Capacity 500 Sets/Month

Product Description

Product Description
In order to meet the demands of irregular and this type processing, the series uses top DSP technology and the world-leading CCD automatic pickup positioning figure identification system and large size visual identity system. The system is fit for automatic positioning cutting and large-area cutting with the maximum cutting area being 1800mm*1300mm. It can be widely applied for label cutting, computerized embroidery label cutting, large digital print positioning cutting and engraving and other nonmetal material .



Parameters

Mode	MT-9060C
Laser Type	CO2 Glass Laser Tube/(RF Metal CO2 Laser Tube Optional)
Peak Laser Power	80W/100W/130W/150W (Optional )
Wavelength	10.6um
Visual Identity System	2000W Pixel SLR Camera or HD projector
CCD Resolution Ratio	3,200,000pixels
Focusing Method	Automatic Adjust Focus Distance
Cutting Precision	0-36000MM/Min
Cutting Speed	0-64000MM/Min
Focal Length	38.1,50.8,63.5,76.2,101.6MM
Location Precision	0.015mm
Min.Line Width	0.15-0.3mm
Cooling Mode	Water Cooling and Protection System
Controlling Formats Supported	DSP High Speed Controller
Graphic Formats Supported	PLT,DST,AI,DXF,BMP,JPG,CAD,CDR,DWG
Operating temperature	0ºC-40ºC
Warranty	1 Year
Humidity	5% to 85% (No Condensed )
Gross Power	<1250W
Power source	AC110V/220V± 10%, 50/60HZ
Processing Area	900*600mm(Optional)
Working Environment	Clean, Free of Dust
Safety Protection Class	Ip54
Laser Generator Safety Class	IV

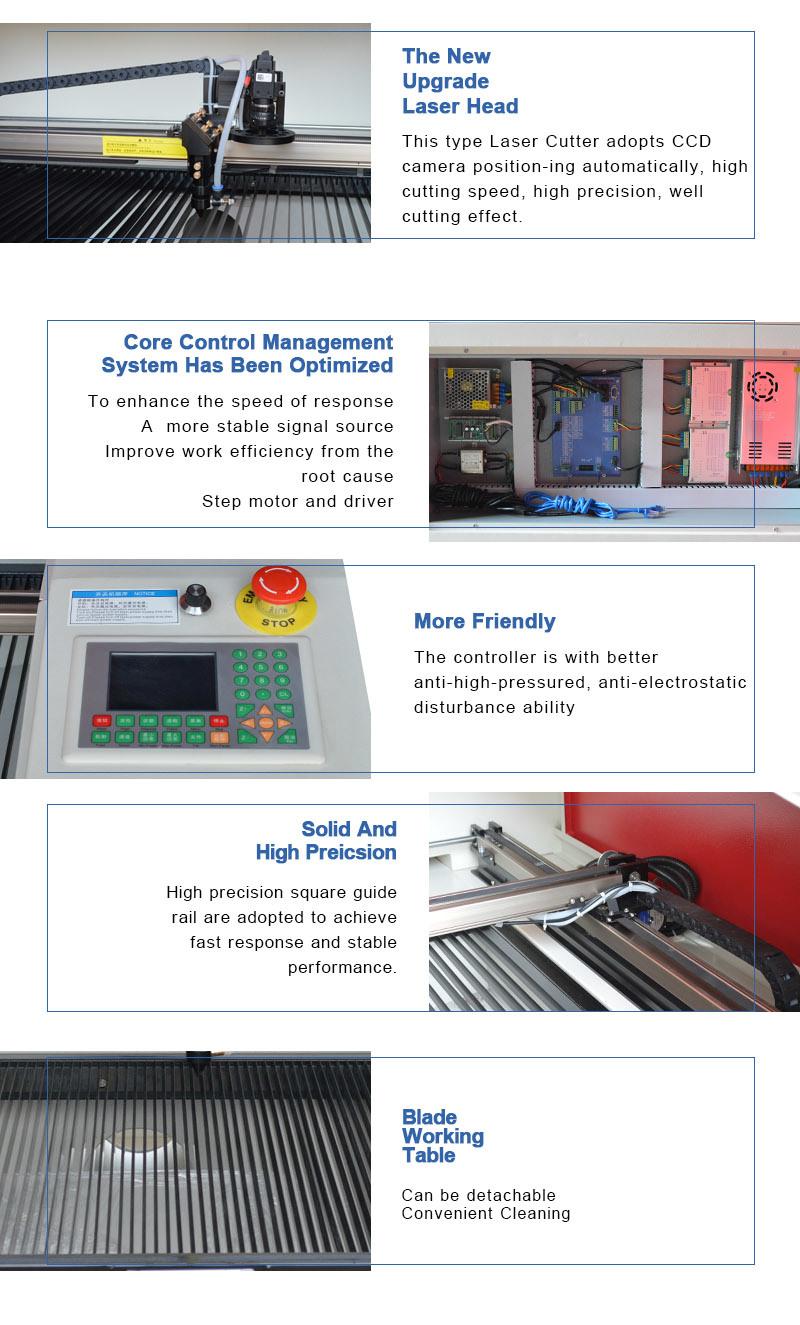

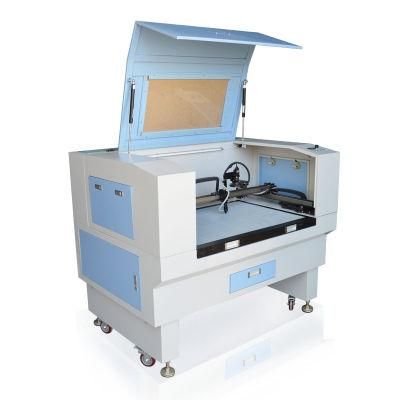

Product Show


Product Samples

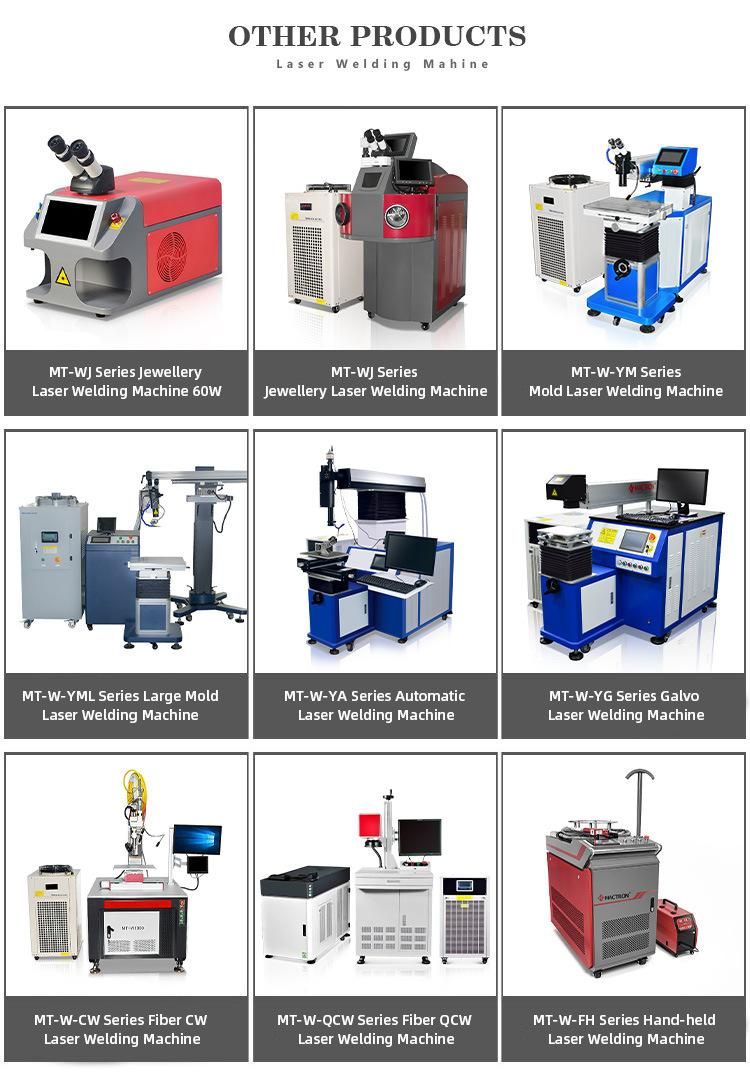

Other Products

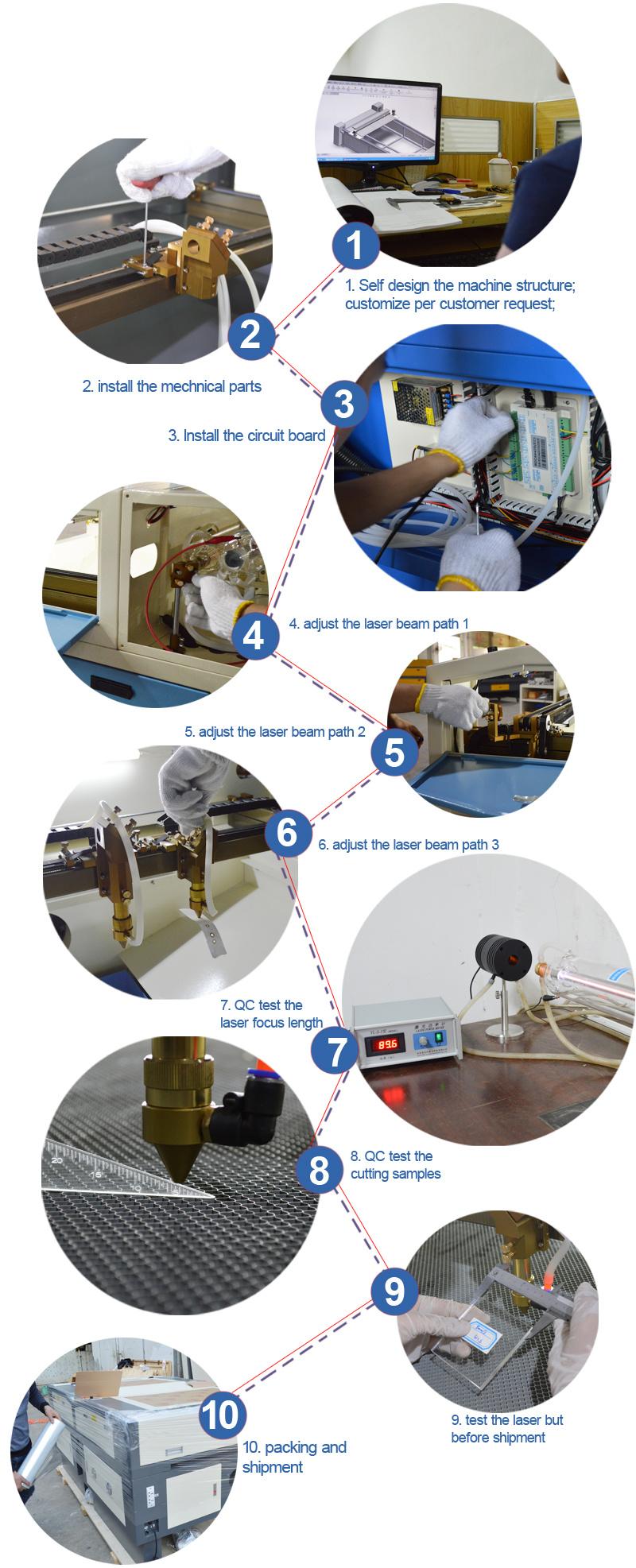

Production Process

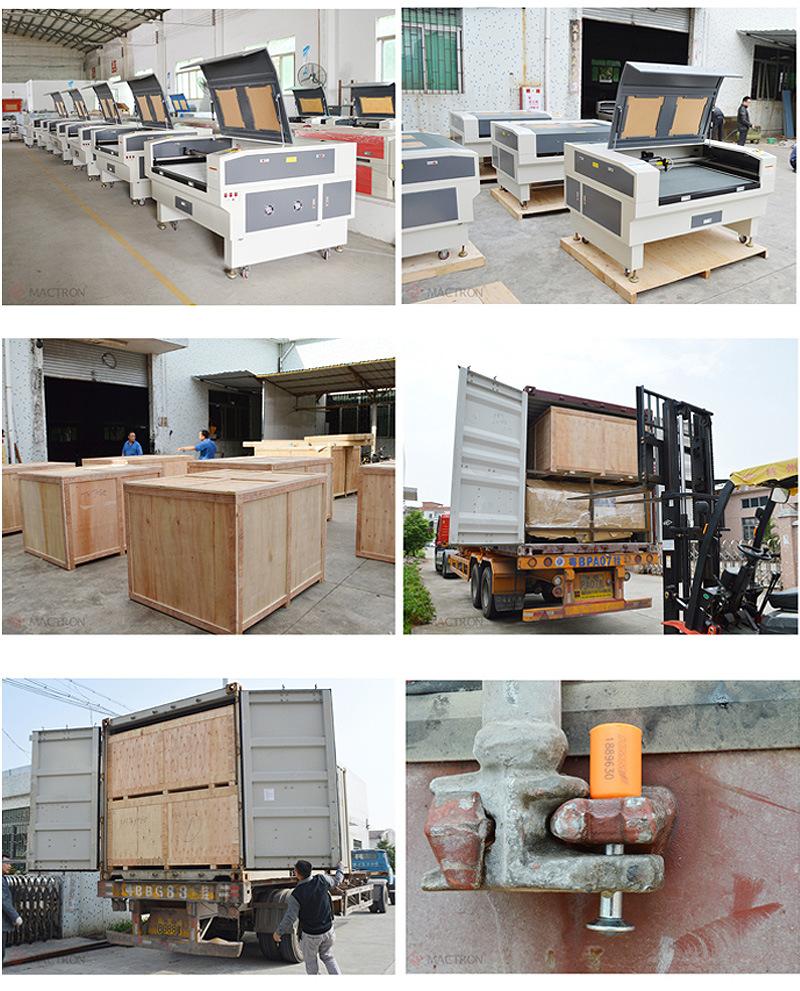

Packaging & Shipping



Company Information
Mactron Technology's business tenet is "Do Honest Business ".
Mactron Technology's managerial spirit: "Solidarity, Exertion, Truthfulness, Innovation"
Dongguan Mactron Technology Co., Ltd (Mactron Technology Co., Limited) mainly manufactures and sells products like Fiber Laser Marking Machine, UV Laser Marking Machine , Co2 Laser Marking Machine, Laser Printer, Co2 laser cutting and Engraving Machine, Fiber Laser Cutting Machine, Laser Flat Bed, Customized Laser Equipment and a full laser spare parts. The laser equipment system is widely used in many fields, including textiles, leather, clothing, industrial fabrics, advertising, technology products, printing, packaging, electronics, pharmaceuticals, furniture, hardware tools, molds, and other industries.



Certifications


Our Service


FAQ
Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.

Q: I know nothing about this machine, what type of machine should I choose?
A:We will help you choose the suitable machine and share you the solution; you can share us what material will you cut, the material thickness and working size.

Q: How can I get the sample to check the quality?
A: If you want to check the quality, please send us the sample for testing.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

Q: How is your packing?
A: We have 3 layers package. For the outside, we adopt plywood case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic bag.

Q: What certificate has your company got?
A: All of our laser marking machine with CE, ISO, SGS

Q.If we do not know how to use the machine,can you teach us?
A: Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy, we will have our professional engineer to your country,you only need pay for some fee,like tickets, hotel and meal.
