Portable Electric DTH Drilling Machine

=== Base Info ===

=== Description ===

Basic Info.

Model NO. LD70 Working Pressure 0.5-0.7MPa Air Consumption >3.5m3/Min Lifting Force 3600n Power 3kw Performance Excellent Color Customized Transport Package Standard Export Packing Specification ISO, CE Trademark Leadcrete Origin Henan China HS Code 84303900 Production Capacity 100 Sets/Month

Product Description

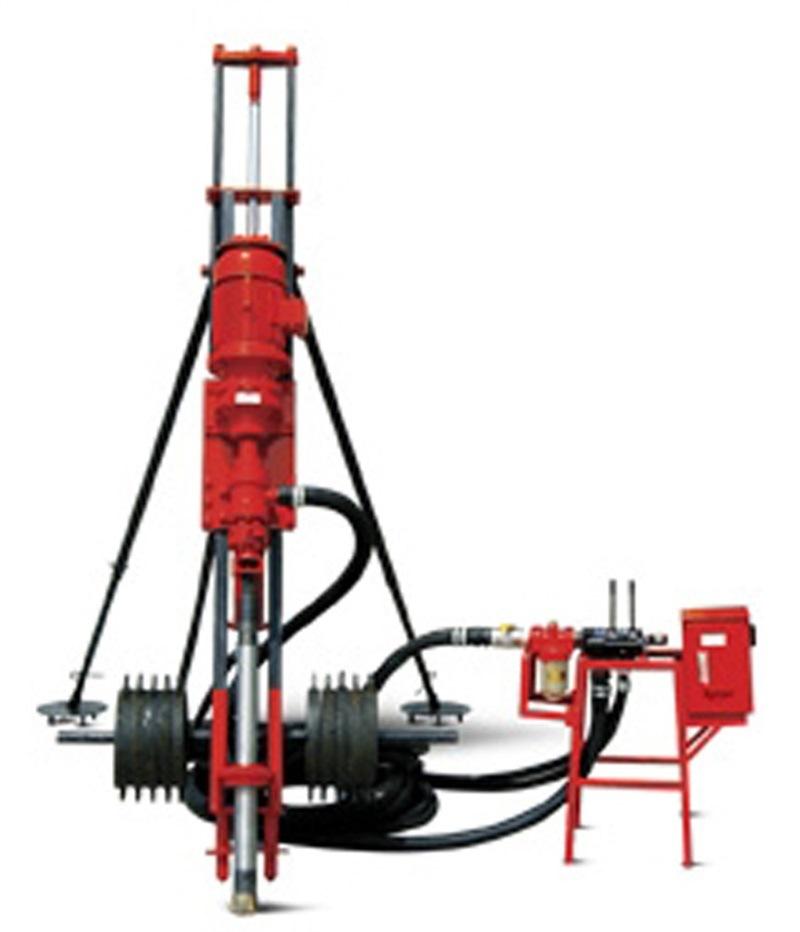

Portable Electric DTH Drilling Machine

Description:
LD70 electric borehole drilling rig is a high adaptability rock drill, it has simple structure, easy operation, low price, energy saving. The DTH drill can also drill vertical and horizontal blast hole, especially it has low centerof gravity and detachability is good, so movement and transportation are convenient.





Technical data:

Drilling diameter	60-80mm
Drilling depth	≥15m
Rotating speed	0-125rpm
Working pressure	0.5-0.7Mpa
Air consumption	>3.5 m³/min
Lift power	3600N
Motor power	3kw (≥4Hp)
Overall demension	2110*420*600mm
Weight	350Kg

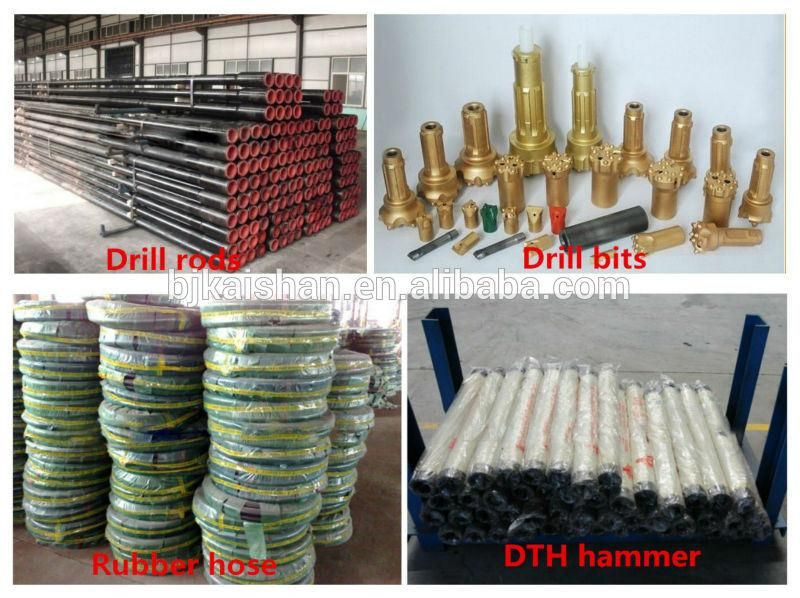

Spare parts:

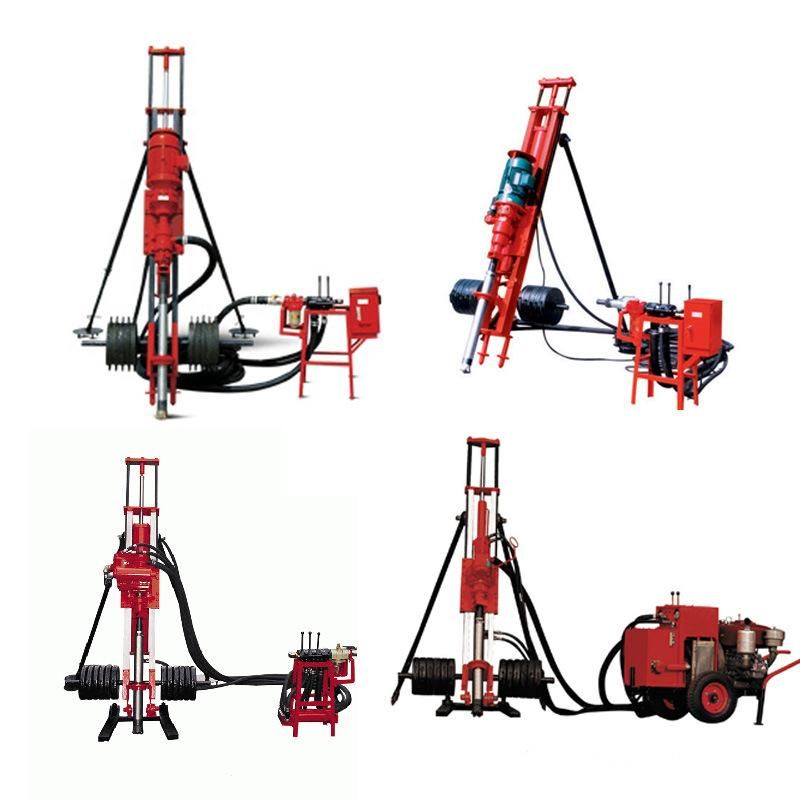

We also have pneumatic, hydraulic&pneumtic drilling rig for option.
