Industrial Bakery Bread Spiral Cooling Tower Conveyor Equipment for Food Baking

Chongren Longtime International Co. / 2022-07-04

Industrial Bakery Bread Spiral Cooling Tower Conveyor Equipment for Food Baking

  • After-sales Service:Field Maintenance and Repair Service
  • Warranty:2 Years
  • Usage:Cake, Pizza, Bread
  • Power Source:Electric
  • Timing Device:With Timing Device
  • Type:Spiral Cooling Conveyor

=== Base Info ===

  • Model NO.:customized
  • Voltage:380V
  • Customized:Customized
  • Structure:Conveyor System
  • Material:Stainless Steel
  • Tower Shape:Round, Oval, Vertical
  • Overseas Installation:Yes
  • Pre Cooling Room Temp:-5 to 50 Celsius
  • Fast Freezing Room Temp:-40 to 5 Celsius
  • Capacity:Customized
  • Tower Diameter Range:1.5-12 Meters
  • Transport Package:Wooden Case
  • Specification:CE
  • Trademark:AOCNO
  • Origin:Hebei, China
  • HS Code:8428330000
  • Production Capacity:20 Sets,Year

=== Description ===

Basic Info.

Model NO. customized Voltage 380V Customized Customized Structure Conveyor System Material Stainless Steel Tower Shape Round, Oval, Vertical Overseas Installation Yes Pre Cooling Room Temp -5 to 50 Celsius Fast Freezing Room Temp -40 to 5 Celsius Capacity Customized Tower Diameter Range 1.5-12 Meters Transport Package Wooden Case Specification CE Trademark AOCNO Origin Hebei, China HS Code 8428330000 Production Capacity 20 Sets/Year

Product Description

Introduction:

This machine is equipped with layer by layer transmission technology which is similar to European technology. The gear motor drives the gear on every layer through a spindles ,  and the gear stir the convey belt for movement. Every gear has intelligent power transmitter which can adjust the convey power.

Material
The mesh belt is made of 304 stainless steel and the skeleton is made of 304 and 201 stainless steel square tubes
Belt width range
200 mm-1300 mm
Belt length range 50 meters - 1200 meters
Tower diameter range1.5-12 Meters
Layer heightSpiral tower up to 6 meters
Tower Layer range
1-40 layers
Entrance&exit direction
  Low inlet high exit  high inlet low exit
two in and two out, three in and three out, ellipse


Industrial Bakery Bread Spiral Cooling Tower Conveyor Equipment for Food Baking
Features:

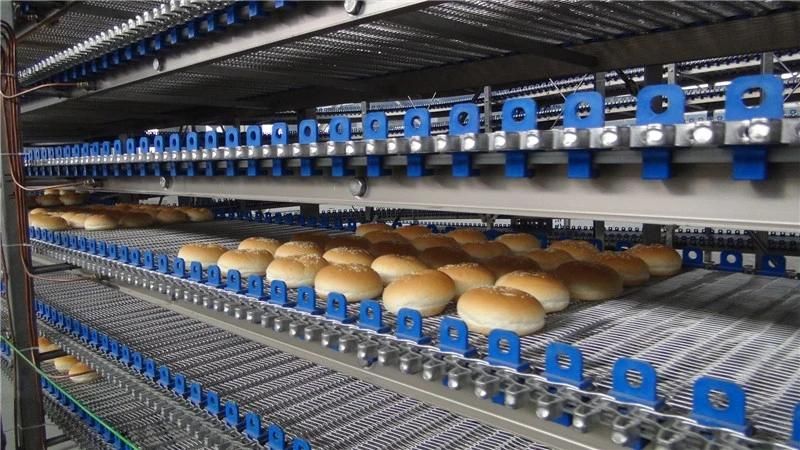

1.   Double side nylon card track is stable when it is in operation, it will never get stucked or upturning.
2.   Every belt can adjust the power automatically and keep the power equal because it has intelligent transmission technology. And its speed is Variable.

Industrial Bakery Bread Spiral Cooling Tower Conveyor Equipment for Food Baking
3.   We choose high strength nylon card track and low friction food grade pp guide rail for it.And it has automatic lubrication system so you do not need to add lubricating oil and no need to repair or change any components within many years.
4.   We can design different Input and output directions according to customer;s workshop's area, such as low input and high output, high input and low output, two input and two output, three input and three output, the last kind is elliptic type.
Industrial Bakery Bread Spiral Cooling Tower Conveyor Equipment for Food Baking
5.   It saves spaces and guaranteeing high efficiency.
6.   Adapted to bakery products, vegetables, fruit, meat and fish etc.
7.   The convey belt is stainless steel 304. To grantee it is durable, the frame is ss304 or ss201 square steel tube.
Industrial Bakery Bread Spiral Cooling Tower Conveyor Equipment for Food Baking
8.   Equip with automatic cleaning device and will do the cleaning automatically.There are some food scraps and stain during the opeation of the tower, our engineers invent automatic cleaning device which can finish cleaning work within 1-2 hours and also dry it automatically.We have three kinds: single tower, double towers, elliptic tower.

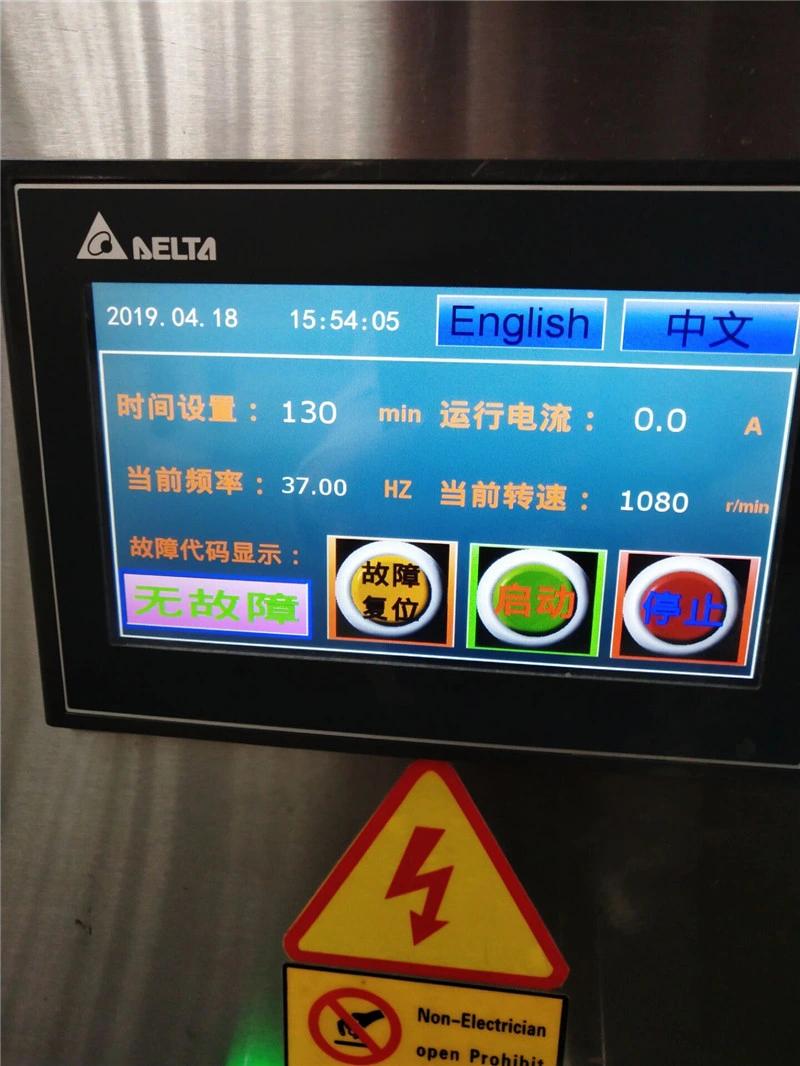

9.   It has variable-frequence, gear motor and Germany Schnelder Electric components.
10. Belt convey can be bends, slopes or spirals.
Industrial Bakery Bread Spiral Cooling Tower Conveyor Equipment for Food Baking
It is customized for the following elements:
1.   Material, length and width of the conveyor belt.
2.   The height, diameter and layers quantity of the tower.
3.   In feed and out feed direction.
4.   Shape of the tower (round, elliptic).
5.   Material of the frame.
6.   The brand of the reduction motor, bearing, and the Inverter frequency device and screen.
Industrial Bakery Bread Spiral Cooling Tower Conveyor Equipment for Food Baking

Industrial Bakery Bread Spiral Cooling Tower Conveyor Equipment for Food Baking

Industrial Bakery Bread Spiral Cooling Tower Conveyor Equipment for Food Baking



Working Principle:
The Main Spindle drives per gear in each layer, and gears drives per mesh belt in each layer, so that the power of gear motor to be transmitted. Each gear has smart power transmission device to adjust the transmission power automatically.

Characteristics of Spiral Cooling/Freezing Tower(transmit layer by layer):
1. Nylon card rail in both sides are stable, without machine jams or upturning fault.
2. Due to its intelligent transmission technology, the mesh belt in each layer can adjust its tension automatically, keep the transmission force in each layer equal.
3. Adopts high strength Nylon card rail and low friction PP guide rail, resulting in lubricant in rotating unnecessary, scraps caused by friction not to drop or pollute food.
4. Food input and output directions to be customized according to customer's workshop layout, such as Input in Lower entrance, well come out from higher exit, Input in Higher entrance, well Output from Lower exit, Twin Inputs+Twin Outputs, Three Inputs+Three Outputs, Round Circle or Ellipse Spiral Towers.

Proofer
It can be used as spiral proofer, assembly with production line, which improves the production efficiency greatly, users can monitor all proof process via computer control system. Optional Device: Steam System and Heating System. The Spiral Cooling/Freezing Tower is suitable for bulk and packaged foods. It runs as usual at a temperature of 40 ºC below.
Deep  freezer
* Deep-Freezing Spiral Tower designed according to usage of foods.
* Cooling/Freezing Settlement customize for bread,pizza,dumplings,wonton,fresh vegetable,fish or other meat.

Cooling
Suitable for cooling all kinds of baking foods and fried foods.there are two types: Natrual cooling & Controlled Freezing.

About  our company:

Hebei AONCO Baking Machinery Co.,Ltd founded in May 1984,covers 95 acres building area.We have modern plant,area up to 45,000 square meters and also an integrity building,5,000 square meters,which active for R&D center,products exhibition and marketing center and other facility.

Our main products is bread production line,like hamburger bun/hot dog production line,toast production line and Multifunctional bread line.The tunnel oven and spiral cooling tower conveyor is our hot sells.We can customized according your capacity and layout.
Industrial Bakery Bread Spiral Cooling Tower Conveyor Equipment for Food Baking
In 2018,we attend the IBA in Munich,Germany.
In 2019,we attend the IBIE in Las Vegas,USA
In 2019,we attend the GulfHost in Dubai.
We always moving forward and knows what you need.


Industrial Bakery Bread Spiral Cooling Tower Conveyor Equipment for Food Baking

AOCNO Baking Machinery are highly cost -effective,our products are not only popular in domestic markets,but also has gained good reputation from Latin America, Southeast Asia, Middle East Asia, Europe other in cover 50 countries.

If you are interested in our products or if you have special requirements, welcome to Contact Us With Any Enquiries!

Pls Feel free you may also come to visit and inspect our factory. So welcome here

Thank you!
