Diamond Segments/Diamond Tools/Cutting Tools/ Stone Segments/Grinding Segments/Granite Cutting Segments /Granite Segment/Marble Segment/Concrete Segments

• Blade Type：Segmented
• Manufacturing Process：Brazed
• Application：Stone
• Steel Blank：65 Mn
• Transport Package：Carton and Pallet
• Specification：customize your required size

=== Base Info ===

• Model NO.：Brazed
• Trademark：PROTEC
• Origin：China
• HS Code：82075010
• Production Capacity：100000

=== Description ===

Basic Info.

Model NO. Brazed Trademark PROTEC Origin China HS Code 82075010 Production Capacity 100000

Product Description

Basic info

Model No.	PT- PDSBDBSG	Application:	For Granite ,Basalt, Gneiss, Marble and stones
Samples:	Free samples when it is stock	Size:	From 12"/300mm to 118"/3000mm are available
Arbor:	60mm,50mm,25.4mm and as required	Delivery Time:	Based on the Quantity
Price Term:	EXW, FOB, CIF, CNF, DDP, DDU and Etc	Payment Term:	TT, LC, Western Union, PAYPAL, CREDIT CARD
Color:	Natural color	Quality:	All have to pass 3 times QC inspection
Certificate:	CE EN13236	Test report:	Have
Transport Package:	Double Corrugated Carton and pallet	Service:	Custom-made Service
Sample order:	Available	Trademark:	Protec
Origin:	China	HS CODE:	82023910

Product Size

Diameter	Arbor hole	Use	Segment Size	Segment height
12"/300mm	60mm, 50mm 25.4mm and as required	Wet	40x3.2mmx10/12/15mm and as required	10/12/15mm and as required
14"/350mm	60mm, 50mm 25.4mm and as required	Wet	40x3.2mmx10/12/15mm and as required	10/12/15mm and as required
16"/400mm	60mm, 50mm 25.4mm and as required	Wet	40x3.6mmx10/12/15mm and as required	10/12/15mm and as required
18"/450mm	60mm, 50mm 25.4mm and as required	Wet	40x4.0mmx10/12/15mm and as required	10/12/15mm and as required
20"/500mm	60mm, 50mm 25.4mm and as required	Wet	40x4.0mmx10/12/15mm and as required	10/12/15mm and as required
22"/550mm	60mm, 50mm 25.4mm and as required	Wet	40x4.2mmx10/12/15mm and as required	10/12/15mm and as required
24"/600mm	60mm, 50mm 25.4mm and as required	Wet	40x4.6mmx10/12/15mm and as required	10/12/15mm and as required
26"/650mm	60mm, 50mm 25.4mm and as required	Wet	40x4.6mmx10/12/15mm and as required	10/12/15mm and as required
28"/700mm	60mm, 50mm 25.4mm and as required	Wet	40x5.0mmx10/12/15mm and as required	10/12/15mm and as required
32"/800mm	60mm, 50mm 25.4mm and as required	Wet	40x5.5mmx10/12/15mm and as required	10/12/15mm and as required
36"/900mm	60mm, 50mm 25.4mm and as required	Wet	40x6.4mmx10/12/15mm and as required	10/12/15mm and as required
40"/1000mm	60mm, 50mm 25.4mm and as required	Wet	24x6.6/7.2x14/15mm and as required	10/12/15mm and as required
43"/1100mm	60mm, 50mm 25.4mm and as required	Wet	24x6.6/7.2x14/15mm and as required	10/12/15mm and as required
47"/1200mm	60mm, 50mm 25.4mm and as required	Wet	24x7,6/8.2x14/15mm and as required	10/12/15mm and as required
51"/1300mm	60mm, 50mm 25.4mm and as required	Wet	24x7,6/8.2x14/15mm and as required	10/12/15mm and as required
55"/1400mm	60mm, 50mm 25.4mm and as required	Wet	24x8.4/9x14/15mm and as required	10/12/15mm and as required
59"/1500mm	60mm, 50mm 25.4mm and as required	Wet	24x8.4/9x14/15mm and as required	10/12/15mm and as required
62"/1600mm	60mm, 50mm 25.4mm and as required	Wet	24x9.2/8.8/8.4x20mm and as required	10/12/15mm and as required
70"/1800mm	60mm, 50mm 25.4mm and as required	Wet	24x9.4/10x14/15mm and as required	10/12/15mm and as required
78"/2000mm	60mm, 50mm 25.4mm and as required	Wet	24x10.4/11x14/15mm and as required	10/12/15mm and as required
86"/2200mm	60mm, 50mm 25.4mm and as required	Wet	24x11.4/12x14/15mm and as required	10/12/15mm and as required
98"/2500mm	60mm, 50mm 25.4mm and as required	Wet	24x11.4/12x14/15mm and as required	10/12/15mm and as required
118"/3000mm	60mm, 50mm 25.4mm and as required	Wet	24x12.5/11.5x20mm and as required	10/12/15mm and as required

Product Description:
Our diamond segment has good sharpness and high efficiency at the process of cutting, meanwhile, it has a long lifespan with smooth cutting, flat surface, stable cutting speed and narrow cutting gap for stone waste reduction.
Features:

1. Dry & Wet cutting segment. welds easily. good sharpness. save the stone.
2.  Stable Performance: in the outer and inner layers are carefully designed to ensure cutting stability.
3. Size : suitable saw blade size from 300mm~3000mm,size can be customized
4. Cost-effective and long lifespan
5.  M-shape segment is easy for diamond opening.

Application: These blades are used for cutting Granite, Basalt, Gneiss and stones with superior efficiency.


Product show


Manufacturing process

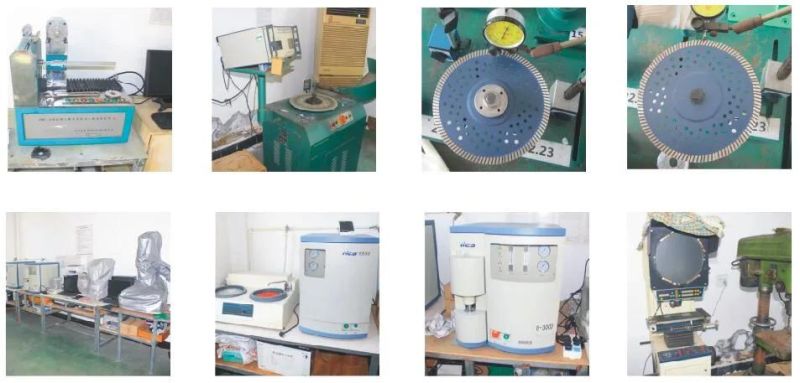

Inspection




Cutting test




Why choose us





Company profile
Protec Tools Co.,Limited ,was established in 2006. As a professional and experiened diamond saw blade and drilling tools manufacturer , To give our customers best quality tools , make them work easier , more efficient and lower cost is what we always focused on . By continuous research, successful and unsuccessful experience, thousands of testing, PROTEC has developed best bonding for most of the building materials from different areas all over the world. In order to keep our products at a high level , we take the most advanced equipments in this industry,such as the automatic laser welding machine, automatic segment press and sintering machine etc.Our products are manufacted coordinate to CE/EN13236. All of these efforts leading a significant grows every year. All our customers will find it is happy to work with PROTEC for the satisfying products and service .Our products are exported to more than 30 countries all over the world and we are the OEM supplier of some world wide famous brands. Looking forward to work for you.

We export to more than 30 countries all over the world



Work shop

Fairs and customer meeting



CE CERTIFICATE

Our diamond saw blades are compliant to CE/EN13236 .



Our service
a)  Good after-sale service, all questions will be replied within 12 hours.
b)  Customized design is available. ODM&OEM are welcomed.
c)  We can provide free sample.
d)  Convenient transportation and fast delivery, all available shipping ways could be applied, by express, air or sea.
e)  High quality and most competitive price.
f)  Advanced produce and inspecting equipments.

FAQ:
1. Can I order a small list?
---Yes. Of course you can.

2. What price do you offer?
---FOB, CIF, CNF, DDU, DDP and other ways according to your request.

3. How can we ship to you?
---By sea, By air, By express, By train and other transport ways according to your request.

4. What is the quality of your products guarantee?
---We have passed CE certification.

5.Do you have after-sales service?
---Certainly, you can contact us at any time.
