Basic Info.

Model NO. HZ-20 Type Four-Wheel Trailer Transport Package Wooden Case Specification 1080 *780*1150mm Trademark Bafang Origin China, Shandong Production Capacity 1000pieces/Year

Product Description

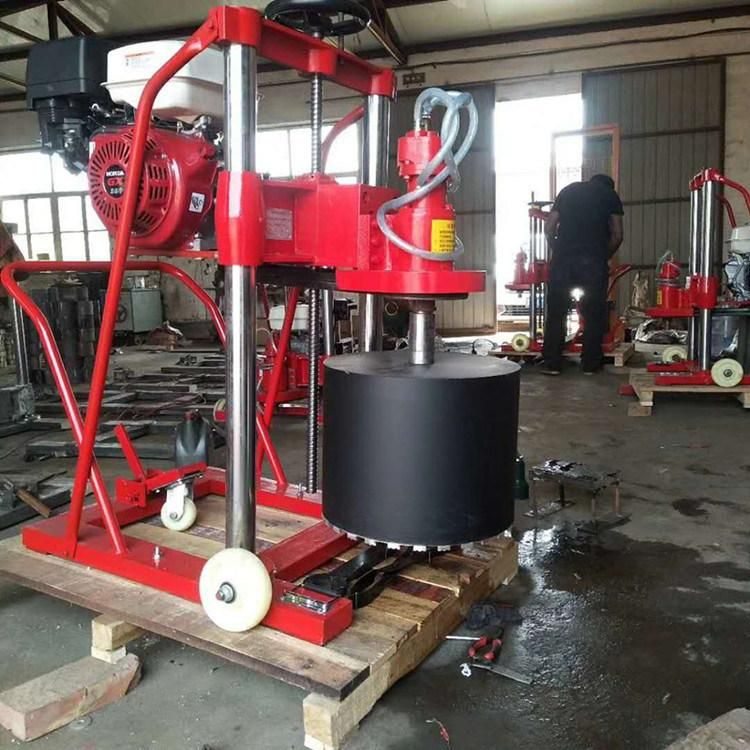

Rock mini concrete core drilling machine and Water Wells Drilling Rigs



Scope of application of HZ-20 drilling rig: HZ-20 drilling rig is powered by gasoline engine, easy to start, reliable operation, easy to operate, and equipped with artificial synthetic diamond thin-walled drill bit, mainly used for roads, airports, ports, terminals, large Concrete projects such as dams, a new series of products for drilling cores. This machine can take the core 400-5000mm, mainly in the high-grade highway can take concrete, limestone, foundation, etc., for compression and flexural test. Scientific research core is also very ideal.
In addition, the rig can also drill and core other non-metallic brittle materials such as refractory materials, ceramics, glass and rock.

Model	HZ-20
Large bore core diameter	Φ200mm
Large hole core depth	400-5000mm
Drilling direction	vertical downward
Feed mode	manual, automatic
Spindle speed	800-1200
Drill form	synthetic diamond thin wall drill
Supporting power	gasoline engine
Dimensions	1080 *780*1150mm
Weight	120kg
