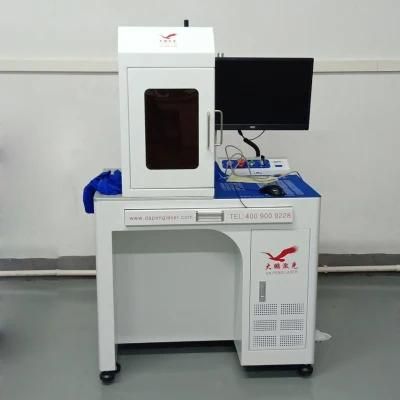

Dapeng 20W 30W Enclosed 50W Fiber Laser Marking Machine /Laaser Engraving Machine

• Application：Domestic, Carpentry, Molds & Dies, Crafts Industr, Advertising Industry
• Cooling System：Air Cooling
• Technical Class：Continuous Wave Laser
• Automatic Grade：Automatic
• Applicable Material：Metal
• Type：Oscillating Mirror

=== Base Info ===

• Laser Classification：Solid Laser
• Engraving Method：Lattice Engraving
• Engraving Machine Type：Laser Engraving Machine
• Certification：SGS, Ce
• Laser Type：Fiber Laser
• Control：Automatic
• Current：AC
• Condition：New
• Usage：Metel, Plastic
• Power：10watt, 20watt, 30watt
• Drive Type：Fiber Laser
• Laser Wavelength：1064nm
• Power Adjustment Range：10-100%
• Repetition Frequency：20-80kHz
• Output Beam Quality：M2:1.2~1.8
• Marking Linear Depth：0.01-0.2mm
• Repetition Accuracy：±0.002mm
• Transport Package：Wooden Box
• Specification：CE, SGS
• Trademark：DP
• Origin：Shenzhen, China
• HS Code：84561000
• Production Capacity：3000 Sets,Year

=== Description ===

Laser wavelength

1064nm

Power adjustment range

10-100%

Repetition frequency

20-80KHz

Output beam quality

M2:1.2~1.8

Marking linear depth

0.01-0.2mm

Min. Spot diameter

0.01mm

Min. Character size

0.1mm

Repetition accuracy

±0.002mm

Max. Liner marking speed

7000mm/s

Standard marking area

100*100mm, 150*150mm or 180*180mm

Power consumed

500W

Electrical demand

Ac220V±10%.50HZ.10Amp

Computer (Desktop)

Memory: 4GB; Hard Disk: 1000GB

Other small company use 2GB+60GB

Cooling mode

Air-cooling

Operational Temp Range

10-40ºC

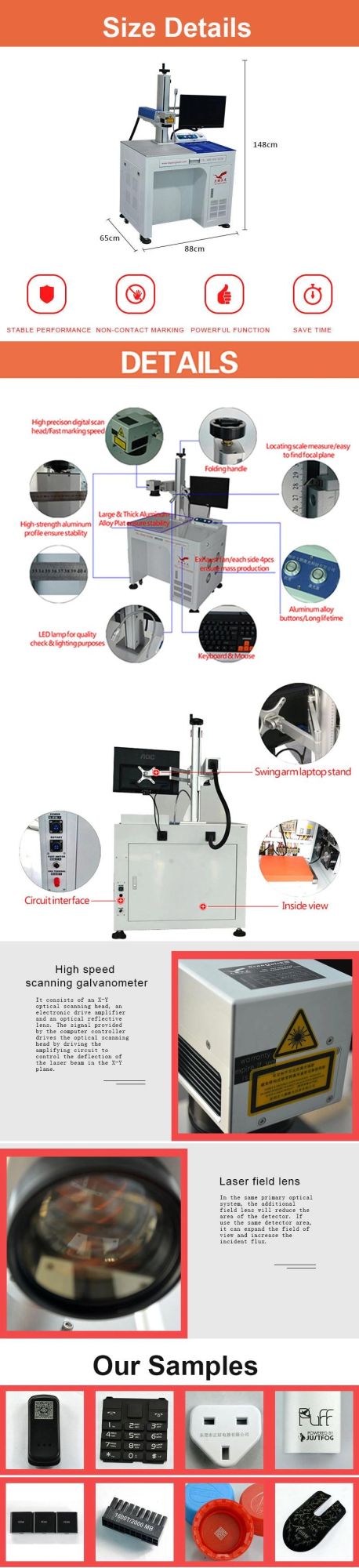

Machine Size & Weight

80*1170*1720mm  160Kg



Software: EZCAD

True Type Fonts

Single Stroke Fonts

Elliptical Text

Sequential Serial Numbers

Customizable Auto Dating

Barcodes

QR Codes and Data Matrix

UID Wizard

Logos

Images - JPG, TIF, GIF

CorelDraw, Adobe Illustrator

Raster Graphics

Vector Graphics

CAD Files





 Materials:

Stainless Steel

Steel

Aluminum, Carbide

Nickel

Titanium

Cast Iron

Chrome

Painted Metal Alloys

Multi-Coated Metals

Plastics/Rubber

Backlit Buttons

Polycarbonate

PVC

Composites

Many more materials

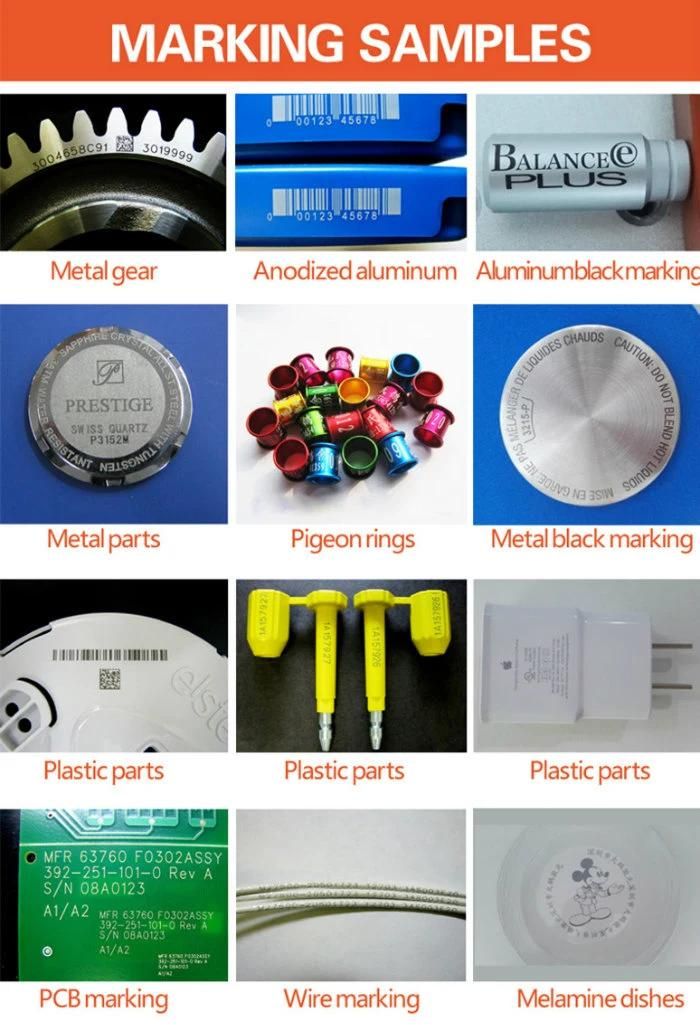

Marking Samples:



Note:
(1) Pre-sale service
1.According to customer requirement, we provide you with the relevant professional technology information (including the specification, machine pictures, working videos, manual) and test samples by our machines.
2.Welcome to visit our company, we will let our engineer do marking or welding on samples. Seeing is believing, and it is better for future business.
3.We offer a reasonable price for mutual win-win cooperation.
(2) Sale service
1. We will make a working video and take pictures to customers for confirmation before delivery (within 15 days after receiving the total payment).
2. Machine will be packed into the standard wooden cartons, suitable for vessel or air transport, and marked the universal label, shipping marks.
3.Send customers commercial invoice, packing list, BL or AWB sheet, optional CO or FF or FTA or SASO for customer custom clearance.
(3) After-sale service
 1.Warranty and Service included:
a. Hardware: one year warranty;b. Software: whole life on update for free.
c. Maintenance and technological support: whole life.
 2. Training:
a. 3--4 days free training for the whole system in Seller's company.
b. If customer needs our technician give the training abroad, the customer need charge for the transportation and
accommodation fees of engineer;
Including: how to set up the equipment; how to debug the light route; how to use the software and operate the equipment; how to replace the bad material and spare parts, etc; how to maintain the equipment; how to estimate and settle the problem, and analysis the reason.
