High Quality Rock Sugar Production Line

• Certification：CE, ISO9001
• Power Source：Electric
• Process：Mild Processing
• Application：Candy
• Customized：Customized
• Delivery：Within 60days

=== Base Info ===

• Model NO.：GY-S25
• Turn-Key Project：Yes
• Transport Package：Container
• Specification：SUS304
• Trademark：GENYOND
• Origin：China
• HS Code：841981000
• Production Capacity：5000sets,Year

=== Description ===

Basic Info.

Model NO. GY-S25 Turn-Key Project Yes Transport Package Container Specification SUS304 Trademark GENYOND Origin China HS Code 841981000 Production Capacity 5000sets/Year

Product Description

Description:

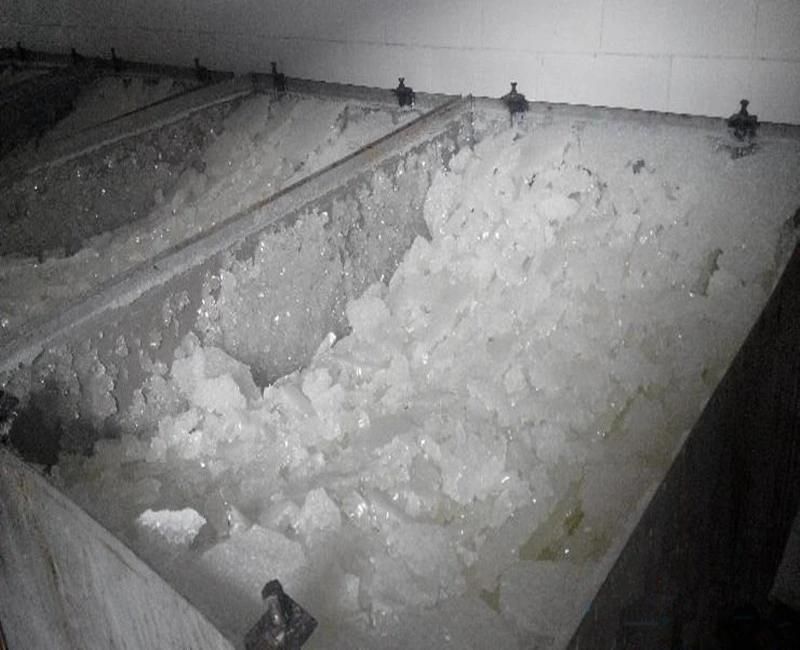

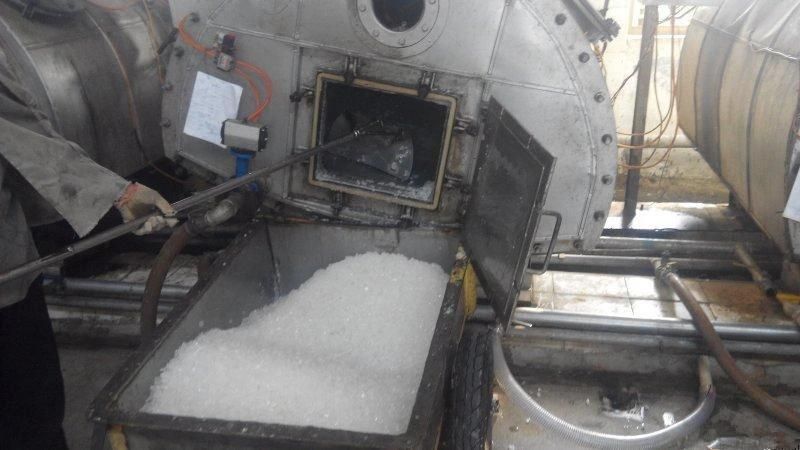

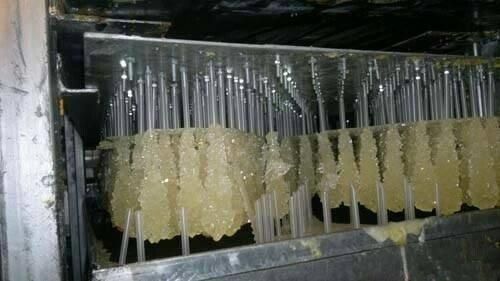

Single crystal rock candy is under the condition of vacuum, temperature and the concentration of the best combination of sugar,
form the best supersaturated state, together with the optimization of seed, put into the tank, sway, crystal production process is:
the sugar dissolve - storage - into the pot - crystallization and the sugar - cooling - dry - packaging - finished products.

Ice sugar production line:

NO.	DEVICE	MODEL	UNIT	QUANTITY	REMARKS
1	Single crystal ice sugar machine	GL1.2	set	100
2	Tug transmission		unit	100
3	Reducer motor		unit	100
4	Crystal seed machine		set	2
5	Sugar melting pot	d1300X1800mm	set	5
6	Big ice sugar boiler	d1300X1700mm	set	2	Shell and tube heat
7	liquid storage pot	d1200X3000mm	set	15	stainless steel
8	Spin drier	d1000	set	2
9	Electronics packing machine	DCL-50	set	2
10	stabilization tank	800X1800	set	1
11	hot water tank	800X1000	set	1	Can make local
12	jet device		set	5	stainless steel
13	Polycrystalline barrels		set	30 thousand
14	Slice sugar pot		set	2	Shell and tube heat


 ICING CYRSTAL SUGAR MAKING MACHINE
CAPACITY 3-200TONS PER 24HOURS
SIZE OF SUGAR CRYSTAL 1.5CM
WHITE OF SUGAR WHITE , PINK, ORANGE
DISSOLVING POTS
BOILING POTS

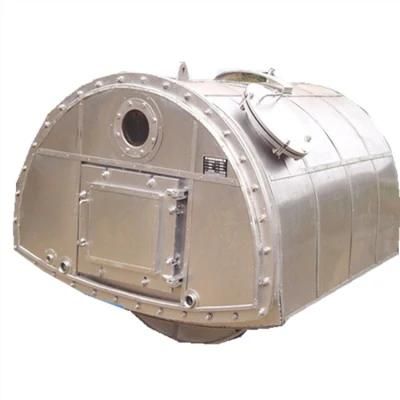

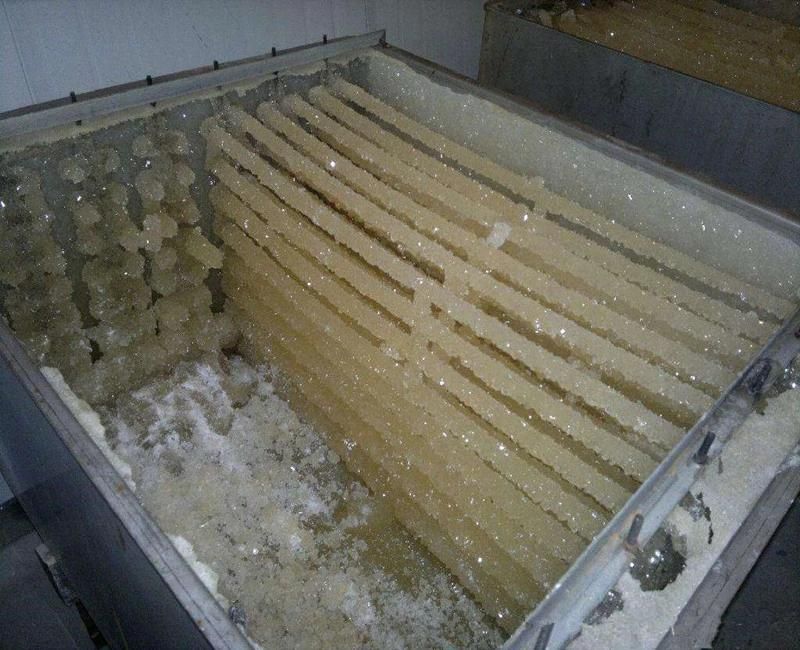

CRYSTALLIZER
SEED MOTHER MACHINE
CENTRIFIGULA
CONDENSOR
REDUCE MOTOR
