Sesame Paste 300L Gas Heating Jacketed Cooking Pot

• Type：Cooking and Mixing
• Voltage：380V
• Power：1.5KW
• Customized：Customized
• Cooking Kettle Capacity：300L
• Cooking Pot Structure：SUS304, Tri-Layer

=== Base Info ===

• Model NO.：RG300
• Agitator：Agitator with Scraper
• Way of Discharge：Drainage From Bottom , Tiltable
• Heating Mode：Gas Heating
• Transport Package：Wooden Case
• Specification：SS304,SS316
• Trademark：Wanyuan
• Origin：Wenzhou China
• HS Code：8479819000
• Production Capacity：5000

=== Description ===

Basic Info.

Model NO. RG300 Agitator Agitator with Scraper Way of Discharge Drainage From Bottom / Tiltable Heating Mode Gas Heating Transport Package Wooden Case Specification SS304/SS316 Trademark Wanyuan Origin Wenzhou China HS Code 8479819000 Production Capacity 5000

Product Description

Sesame paste cooking 300L gas heating jacketed pot
1. Cooking for tomato puree, peanut butter, salad, jam and cheeses etc..
2. Kettle capacity 50L, 100L, 200L even 1500L<customized>
3. Tiltable with mixing scraper or mixing paddle

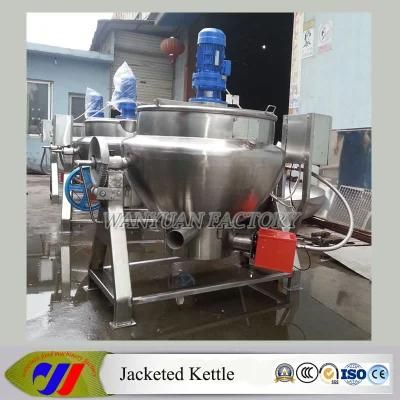

Jacketed kettle or electric jacketed kettle can be designed into different type: Tilting type cooking kettle and vertical type cooking kettle.Tilting jacketed cooking kettle is designed with a tiltable device, you can turn the kettle or pot over for discharge after cooking.Gas Heating tilting jacketed kettle with scraper stirrer


Vertical cooking kettle is designed on 3 legs, there is a discharge pipe at the bottom of the jacketed pot.


Both of tilting cooking kettle and verticle cooking kettle can be designed with mixer or without mixer.

Gas jacket kettle:
Our gas jacket kettle takes heat conducting oil as thermal source. Compare with steam heating, the heating temperature of of the electrical jacket kettle is higher than steam jacket kettle, which can shorten the cooking time. We also call electric heating kettle as oil jacketed kettle or oil jacketed cooking vat.

Our jacket kettle normally used for producing sauces, pasta, vegetables, soups, juice, meat, candy and other food products. It also can be used as simple sterilization boiler.

Wenzhou wanyuan food machinery factory- - Jacketed kettle
Cooking kettle / cooking pan / cooking vat / specification
Here below is the specification of our jacketed kettke:

Specification for gas heating jacketed kettle

Model	Heating Area (m²)	Conduction Oil (kg)	Blending Rate (r/min)	Boiling Time (min)
RG50	0.45	20	35	10~15
RG100	0.58	30	35	10~15
RG150	0.88	45	35	20~30
RG200	1.13	55	35	20~30
RG300	1.43	65	35	20~30
RG400	1.75	75	35	20~30
RG500	2.00	120	35	20~35
RG600	2.30	160	35	20~35
