- Application:Aerospace, Heavy-Duty Machinery, Petroleum Metallurgy, Automotive Industry
- Automatic Grade:Manual
- Style:Portable
- Technical Class:Pulse Laser
- Q-Switch:without Q-Switch
- Laser Classification:Fiber Laser
=== Base Info ===
- Model NO.:ML-LC-W50I
- Type:Laser Cleaning
- Item Name:50W Laser Derusting Machine
- Laser Source:Imported Fiber Laser
- Laser Power:50W
- Laser Wavelength:1064nm
- Focal Depth:2mm
- Applicable Materials:Metal and Non-Metal
- Weight:180kg
- Customized Solution:Available
- Option:Portable, Automation
- Cooling Way:Air
- Transport Package:Plywood
- Specification:600mmX1000mmX1000mm
- Trademark:Herolaser
- Origin:Guangdong China
- HS Code:8456100090
- Production Capacity:20 Sets Per Month
=== Description ===
Basic Info.
Model NO.
ML-LC-W50I
Type
Laser Cleaning
Item Name
50W Laser Derusting Machine
Laser Source
Imported Fiber Laser
Laser Power
50W
Laser Wavelength
1064nm
Focal Depth
2mm
Applicable Materials
Metal and Non-Metal
Weight
180kg
Customized Solution
Available
Option
Portable/ Automation
Cooling Way
Air
Transport Package
Plywood
Specification
600mmX1000mmX1000mm
Trademark
Herolaser
Origin
Guangdong China
HS Code
8456100090
Production Capacity
20 Sets Per Month
Product Description

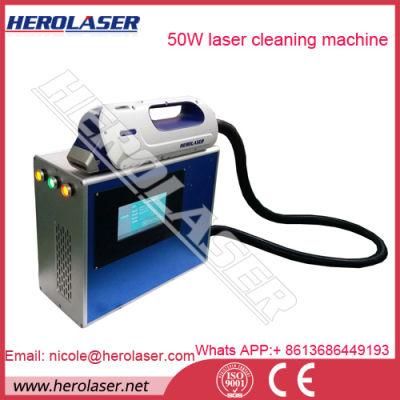

50W Pulsed Laser Cleaning System Laser Derusting Machine
machine videos:
1. https://youtu.be/oN2TAHEBi4Y
2. https://herolaser.en.made-in-china.com
3. https://herolaser.en.made-in-china.com
Video of Herolaser:
https://herolaser.en.made-in-china.com
Product Introduction:
Laser cleaning machine is the latest high-tech product. Easy to install, operate, easy to achieving automation.. Plug in power, turn on and start cleaning - without chemicals, media, dust, water. Cleaning with no detergent, no media, no dust, no water. Auto focus, can clean curved surface, gentle cleaning surface. Cleaning resin, oil stain, rust, coating materials, paints on workpiece surface.
Specifications:
Model | ML-MF-50I-LC |
Laser Power | 50W |
Cooling Way | Air Cooling |
Laser Wavelength | 1064 nm |
Power Supply | AC220V |
Maximum Power | 1000W |
Dimension | L 820* W 400* H 700mm |
Laser' head's dimension | L 430*W 110* H141mm |
Weight | 70 KGs |
Working Temperature | 5-40°C |
Laser source type | Fiber laser source |
Options | Portable |
Features:
1. Professional fiber laser cleaning machine in China;
2. Non-contact cleaning, no damage to workpiece;
3.Precision positioning, selective cleaning, desired cleaning area can be applied to the workpiece.
4. No need chemical detergent, no consumable. Safe & environment-friendly.
5. Easy to operate, either portable or equipped with robot for automatic cleaning.
6. High cleaning efficiency, time-saving.
7. Stable laser cleaning system, free maintenance.
Comparison with traditional clean methods:
Comparision | Laser Cleaning | Chemical Cleaning | Mechanical Grinding | Dry ice cleaning |
Washing Method | non-contact cleaning | contact cleaning | Abrasive contact cleaning | non-contact cleaning |
Harm to base material | None | Yes | Yes | None |
Washing Efficiency | High | Low | Low | Mid. |
Consumable | Power | Chemical Detergent | Abrasive paper, grinder, abrasive stone | Dry Ice |
Washing result | Very good, very clear | Medium, uneven | Medium, uneven | Good, uneven |
Precision Washing | Accuracy controllable. High precision | Uncontrollable, low precision. | Uncontrollable, medium precision. | Uncontrollable, poor precision. |
Safety/Environment | No pollution | Chemical pollution | Dust pollution | No pollution |
Operation | Easy to operate, portable or automation optional. | Complicated process, higher technical requirement of the operator. Pollution prevention measures required. | Need more time & manpower. Pollution prevention measures required. | Easy to operate, portable or automatic. |
Investment | High investment on machine. But no consumable, low maintenance cost | Low investment on machine. But expensive consumables | Medium investment on machine. High man-power cost. | Medium investment on machine. High consumable cost. |
Applications:
1.Metal surface rust removal
2.Paint cleaning
3.Oil stain, contaminant cleaning
4.Coating surface cleaning
5.Welding/Coating surface pre-treatment.
5. Easy to operate, either portable or equipped with robot for automatic cleaning.
6. High cleaning efficiency, time-saving.
7. Stable laser cleaning system, free maintenance.
