HDPE Plastic Bottle Automatic Extrusion Blowing Machine

=== Base Info ===

=== Description ===

Basic Info.

Model NO. SD-55 Power 3 Phase, 380V, 50Hz Max. Container Volume 600ml Maxmium Neck Diameter 38mm Raw Material HDPE Making Method of Parison Extrusion-Blow Molding Automation Automatic Computerized Computerized Certification CE, ISO9001:2008 Transport Package Wooden Case for Blow Moulding Machine Specification ISO9001: 2008 Trademark Shine Dew Origin Guangdong Province, China HS Code 8477309000 Production Capacity 4000-5000bph

Product Description

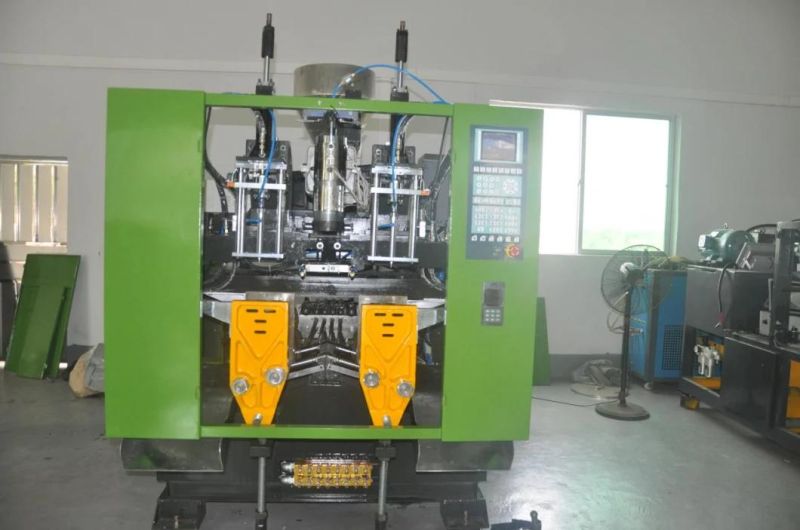

HDPE plastic bottle automatic extrusion blowing machine


Product Description:
1)the operation is flexible and stable
2) the positioning is accurate. The mould clamping method of machine applies hydraulic pressure, instead of pneumatic pressure, it ensures more accuracy.
3) Easy operation and maintenance. We uses integrated circuit in a computer box, if there is any problem, we just need to change the computer box.
4)This machine is suitable to producing bottle ranging from 20 to 2000ML bottle.
5) Acceptable material: PVC, PP, H.D.PE, L.D.PE, E.V.A, PA, PC, PETG and etc.

Technical Parameter

No.	Model	Unit	SD55-DY-P	Remark
1	Screw diameter	mm	55
2	Screw L/D ratio	L/D	25/1
3	screw drive power	kw	11
4	screw heating capacity	kw	5.5
5	Number of heats	/	4
6	Extrusion quantity	kg/H	50
7	Extrusion capacity per hour	/	1
8	mould base quantity	/	2
9	product capacity	ml	2000
10	Platen distence	mm	160~360
11	oil pump drive power	kw	7.5
12	mould clamping method	/	by hydraulic pressure
13	Maximum mould clamping force	Ton	3
14	Temperate parameter	mm	250*300*100
15	Blow pressure	/	0.6
16	Machine net weight	kgs	3.2
17	Machine size	m	2.7*2.16*2.32




FAQ

1. What kind of information should you provide before making proposal?

(1) What's your bottle size?

(2) What's the usage of the bottle? Is it drinking bottle, beverage bottle, cosmetic bottle or any other usage?

(3) What's your bottle material?

(4) What's your required production capacity? How many bottles per hour do you want to produce?

(5) What's your industrial power supply? Is it 3 phase, 380V, 50Hz?

2. What kind of service do you provide:

(1) Installation service

The engineers could install  the machine overseras, and the client should pay for the  realated charges.

When the engineers arrive at the client place, they will give the comprehensive trainning  till the related operater could operate the machie correctly.

(2)After-sale service

Provide the one year warrant for the machines,(not include the damage caused by human factors  and the natural disasters)  lifelong time maintanence.

7*24 hours servide by mail,phone.

Engineers could availiabel oversea service.

(3)Trainning service.

When reached the order, the clietn could organise the operator to the supplier's factory.

We will provide the comprehensive trainning for the machines  at supplier's factory.
