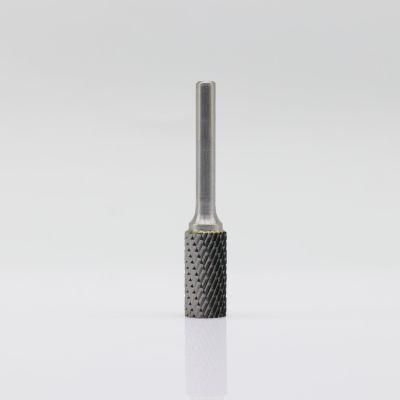

SA Type Carbide Burrs with Excellent Endurance

• Material：Carbide
• Usage：Metal Drilling

=== Base Info ===

• Model NO.：SA
• Shape：Cylindrical
• Processing Methods：Cutting Tooth File
• Tooth Pattern：Bidentate Pattern
• Section Shape：Triangle
• Color：Unicolor
• Customized：Non-Customized
• Condition：New
• Code：SA
• Shank：1,4"
• Cut：Single or Double
• Coating：Available
• Transport Package：Plastic Box
• Specification：ISO STANDARD
• Trademark：AT CARBIDE
• Origin：Chengdu, China
• HS Code：84669300
• Production Capacity：50, 000 PCS,Month
• Package size per unit product：16.00cm * 1.50cm * 0.60cm
• Gross weight per unit product：0.250kg

=== Description ===
No.TypeFeatures1Cylindrical Shape(type SA);1.    Full line for a wide range of applications
2.    Ferrous and nonferrous configurations for excellent finishes and efficient stock shapes.
3.    Thirteen head shapes
4.    A wide range of fluting styles
5.    Extra-long shanks available
6.    Miniature burs
7.    Automated temperature-controlled brazing
8.    Special configurations available to meet specific application requirements
9.    Machine-ground cutting flutes

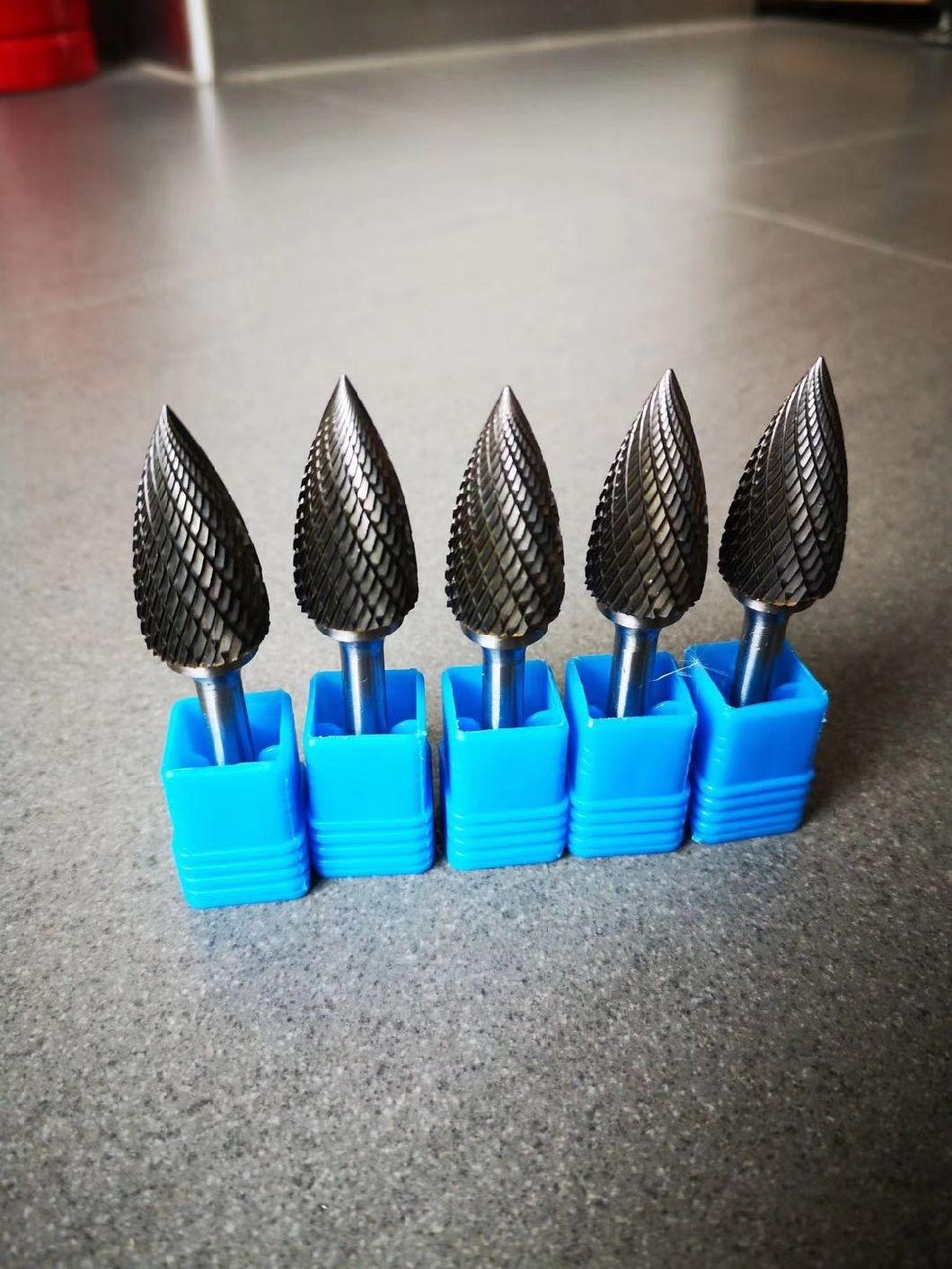

10.  Tool-to Tool consistency2Cylindrical Shape-End Cut(type SB);3Cylindrical Shape-Ball(type SC);4Spherical Shape(type SD);5Oval(Egg) Shape(type E);6Tree Shaps-Radius(typeSF);7Tree Shap-Pointed(type SG);8Flame Shape(type SH);960 degree Cone Shape(type SJ);1090 degree Cone Shape(type SK);11Taper Shape-Radius(type SL);12Pointed Cone Shape(type SM);13Inverted Cone Shape(type SN).
INTRODUCTION OF USING
        The machines which are used for Carbide Rotary Burrs are usually hand-held, powered either by compressed air or electricity. Be careful about mounting and handing the burr correctly.
        Only at high speed, Carbide Rotary Burrs can show their remarable performance.
Recommended spindle speedsDIAMETER OF BURR mmRECOMMENDED SPINDLE SPEEDS  r/min                     3                           65000~75000                     6                           30000~40000                     8                           25000~28000                   10                           20000~23000                   12                           15000~18000                   16                           10000~14000The higher speeds are applied to softer machined materials.
