- Name and Description:Small Milk Processing Line Milk Pasteurizer Milk
- Electric Heating Pasteurizer:Tank 200L, 300L, 400L, 500L4000L
- Tank Type:with Half Lids Cover or Manhole
- Temperature:Able to Control and Adjust From 10c to 110c
- Mixing Speed:36rpm, 48rpm,96rpm, 2900rpm
- Heating Source:Electric Heating Bars Oil,Hot Water in The Jackets
=== Base Info ===
- Model NO.:KQ100-3000L
- Working Life Span:More Than 10years
- Tank Function:Heating, Fermenting, Mixing , Warm Keeping
- Tank Material:SS304,SS316
- Customized Type:Accept
- Transport Package:Standard Export Wooden Box
- Specification:ISO
- Trademark:KQ
- Origin:Shanghai China
- HS Code:8479820090
- Production Capacity:100sets Per Month
=== Description ===
Basic Info.
Model NO.
KQ100-3000L
Working Life Span
More Than 10years
Tank Function
Heating, Fermenting, Mixing , Warm Keeping
Tank Material
SS304/SS316
Customized Type
Accept
Transport Package
Standard Export Wooden Box
Specification
ISO
Trademark
KQ
Origin
Shanghai China
HS Code
8479820090
Production Capacity
100sets Per Month
Product Description
milk processing line
Electric heating pasteurizer for milk , juice,
Small Milk Processing Line Milk Pasteurizer Milk Cooling Tank
Small electric heating tank pasteurizer for dairy, jucie factorys.
Electric heating and mixing tank
Shanghai Kaiquan Machine Valves Co.ltd offers the broadest range of tank heating solutions in the electric heatingindustry. .... jacketed vessel application is the heating of chocolate
ELECTRIC HEATING MILK BATCH PASTEURIZER
200l, 300L, 400L ,500L, 600L JUICE PASTEURIZER, MILK PASTEURIZER.
Newest electric double jacketed heating cable for tank
Heating by Electric(380V, 50Hz)
* Type: With Jacket and insulation
* Internal shell thickness: 3 mm
* Jacket thickness: 3 mm
* Outer shell thickness: 1.5 mm
* Appearance: Ellipsoidal head top and down
* Accessories:
(1)Lid able to open on the top
(2) Charging/discharging hole at the bottom,
(3) Heat transfer oils (water) Inlet/outlet,
(4) Temperature probe,
(5) CIP cleaning ball,
(6) Heating tube, (7) Electric cabinet, (8) Reduction gears, (9) Rack & blender etc. (10)The electric motor(2.2KW, 380V, 50Hz)
TankCapacity(L) | 200, SS304 | 300, SS304 | 500, SS304 | 1000,SS304 |
REV | 36r/min | 36r/min | 36r/min | 36r/min |
Electric motor of the agitator | 0.55KW,380v,50hz | 0.75KW,380v,50hz | 0.75KW,380v,50hz | 1.1KW,380v,50hz |
Electric heating tube power | 15KW,380v,50hz | 18KW,380v,50hz | 24KW,380v,50hz | 45KW,380v,50hz |
Heating Area(M2) | 0.9 | 1.1 | 1.9 | 4.5 |
Material Input/output(DN MM) | 38 | 38 | 38 | 50 |
OUTSIDE DEMENSION(L*W*H)MM | 900*900*1600 | 1000*1000*1500 | 1100*1100*1700 | 1400*1400*1750 |
GROSS WEIGHT(KGS) | 150 | 200 | 300 | 450 |

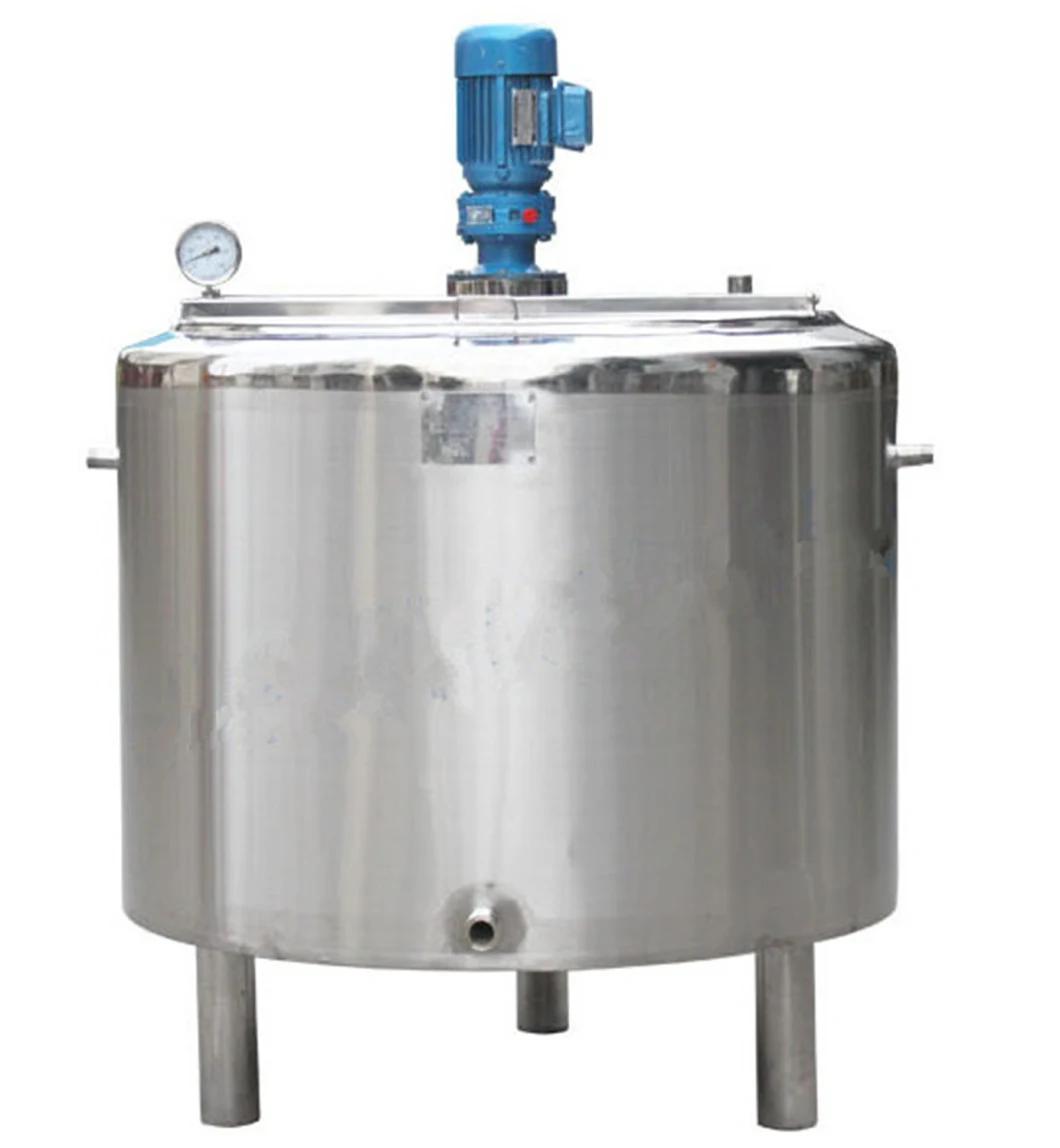

Milk, Juice Electric Heating Jacket Tank Pasteurizer with Mixer
Small Milk Processing Line Milk Pasteurizer Milk Cooling Tank
