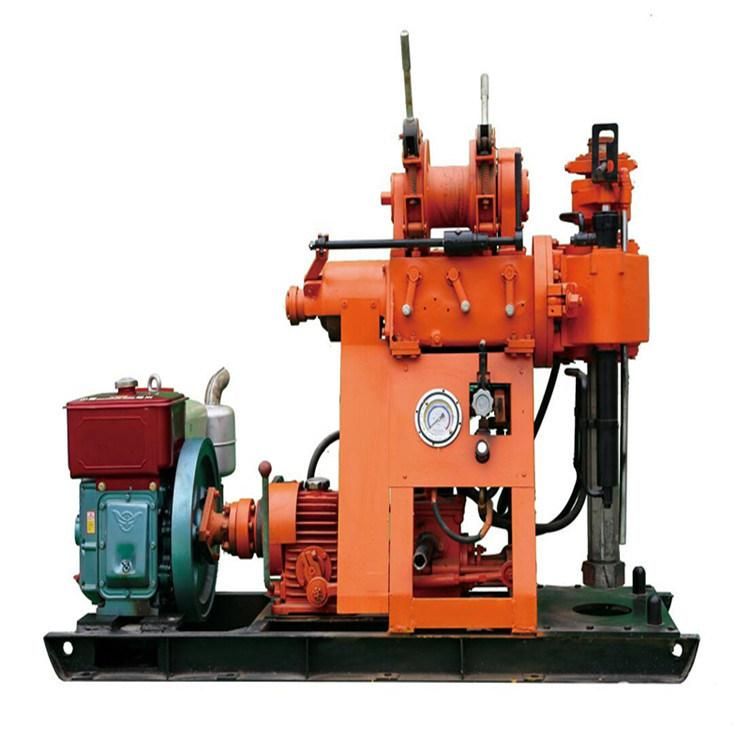

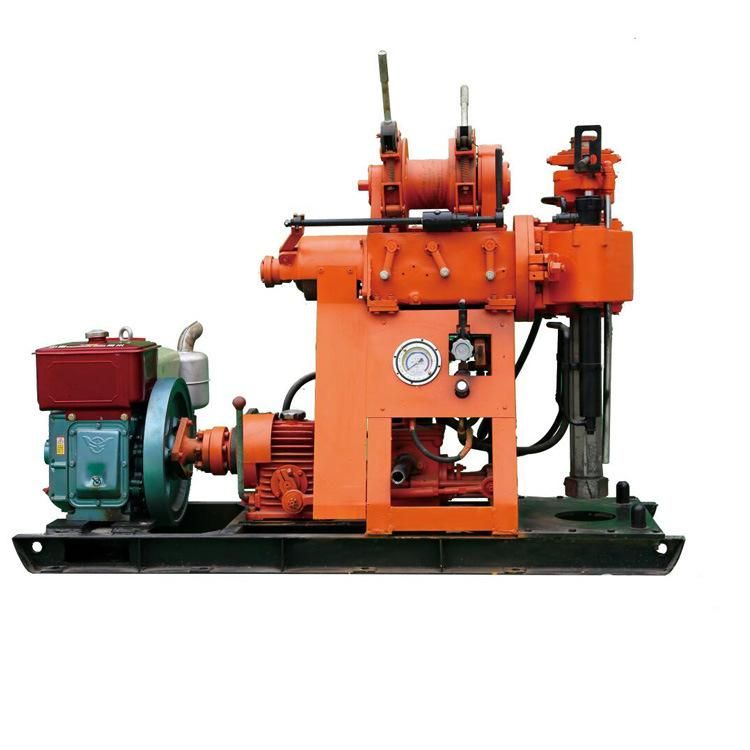

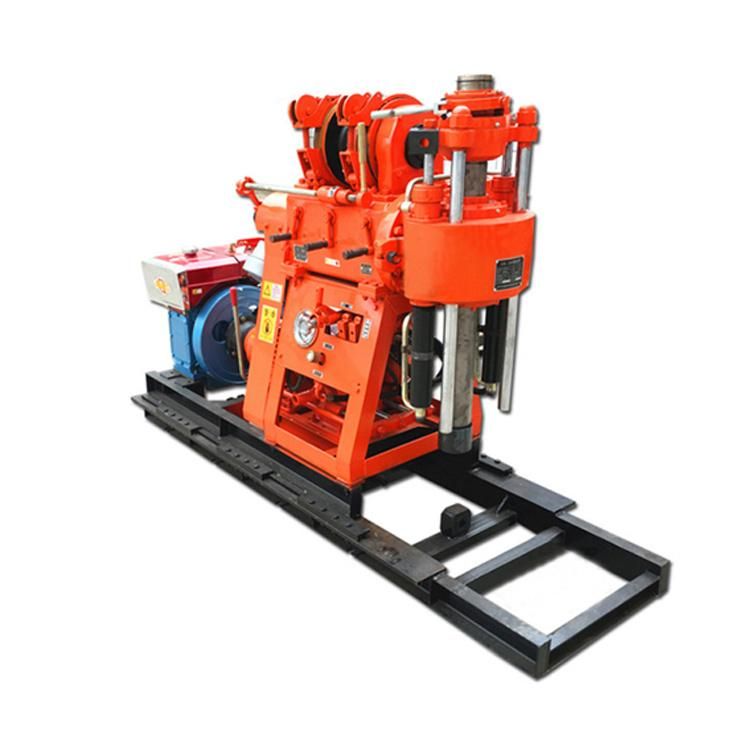

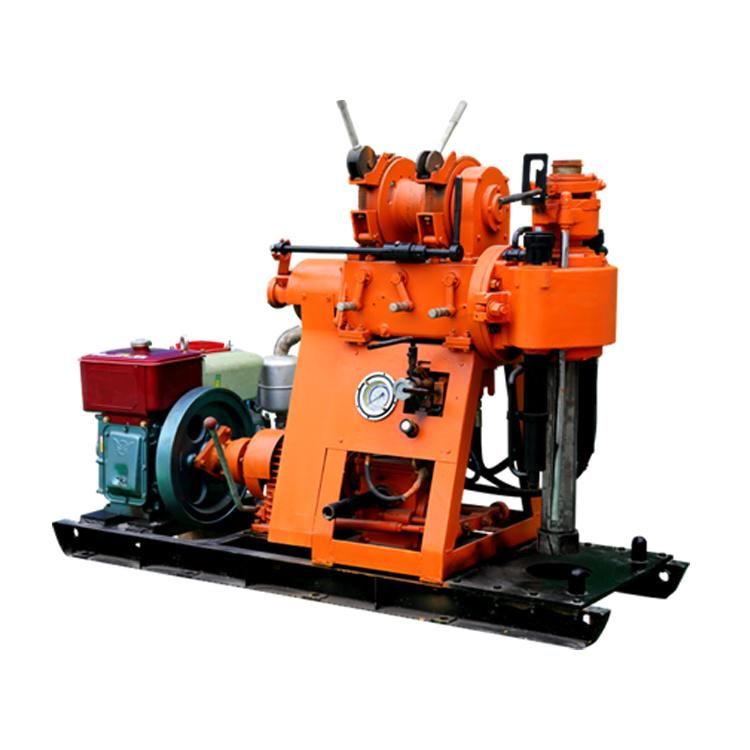

Xy-200 Portable Hydraulic Water Well Drilling Rig

=== Base Info ===

=== Description ===

Drilling depth

30-180m

Drill rod diameter

42mm/ 50mm

End hole diameter

75-46mm

Max. open hole diameter

75-150mm

Drilling angle

90°~75°

Weight

955kg

Unity machine dimensions

2400*950*1400mm

Spindle

spindle speed

130, 300, 480, 730, 830, 1045r/min

Spindle stroke

450mm

Hoist

Max. single line hoisting capacity

2000kg

Effective height

6m

Tower leg diameter

73mm

Mud pump

Model

BW95

Displacement

95L/min

Maximum pressure

1.2Mpa

Suction pipe diameter

51mm*4.5m

High pressure water pipe diameter

32mm*6m

Engine

13.2/2200KW diesel engine
