Hotsale Vertical Steel Roller Maize/Corn Slag Breaker Mntl28A for Maize Processing Machine

Guangdong Decent Industrial Technology Co., Ltd. / 2022-07-05

Hotsale Vertical Steel Roller Maize/Corn Slag Breaker Mntl28A for Maize Processing Machine

  • Type:Maize
  • Application:All
  • Voltage:380V
  • Appearance:Vertical
  • Press Materials:Corn
  • Condition:New

=== Base Info ===

  • Model NO.:MNTL28A
  • Customized:Non-Customized
  • Weight:1850kg
  • Capacity:9-12 T,H
  • Power:55-75 Kw
  • Transport Package:Wooden Case
  • Specification:1560X1470X2250
  • Trademark:CLJ
  • Origin:China
  • HS Code:84378000
  • Production Capacity:9-12 T,H

=== Description ===

Basic Info.

Model NO. MNTL28A Customized Non-Customized Weight 1850kg Capacity 9-12 T/H Power 55-75 Kw Transport Package Wooden Case Specification 1560X1470X2250 Trademark CLJ Origin China HS Code 84378000 Production Capacity 9-12 T/H

Product Description

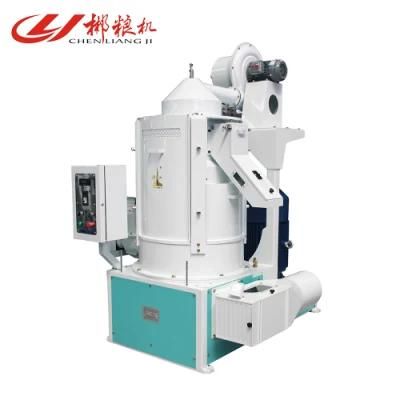

Hotsale Vertical Steel Roller Maize/Corn Slag Breaker Mntl28A for Maize Processing MachineVertical Iron Roller Rice Whitener is consists of husking chamber, feeding units, outlet units, bran suction units, machine frames and transmission parts.
1). Husking chamber Composed of screw, emery rollers, sieve brackets, rice scraper adjustment devices, spring setting rollers, and a pressure valve. The sieve bracket can be divided vertically into upper and bottom halves, easy for cleaning, disassembly and replacement. Pressure valve rams and rice scrapers are adjustable for different pressure requirements in the chamber.
2). Feeding units. Composed of a feeder and screw conveyor parts.
3). Bran Suction Units. Composed of bran suction channels, bran setting rollers, bran sucking devices, air-blowers, aspiration channels, exterior bran suction aspirators and cyclones.
4). Machine Frames and Transmission System. Firm and stable integration of machine and motor supporters. The transmission system consists of motor pulleys, belt pulleys and main bearing blocks.



ModelMNTL21MNTL26BMNTL28AMMNTL30
Production
Capacity
4-6t/h7~10t/h9~12t/h10~14 t/h


Power
Main motor:
37-45Kw
Motor of feeding
screw:1.5Kw
Motor of air
blower:2.2Kw
Main motor:
45-55Kw
Motor of feeding
screw:1.5Kw
Motor of air
Blower: 2.2Kw
Main motor:
55-75Kw
Motor of feeding
screw: 1.5Kw
Motor of air blower:
2.2Kw
Main motor:75-90Kw
Motor of feeding
screw: 3Kw
Motor of air blower:
2.2Kw
Dimension1430x1390x19201560x1470x21501560x1470x22501880x1590x2330

Weight
1310Kg
(45KW)
1770Kg
(55KW)
1850Kg
(75KW)
2280Kg
(75KW)

Rotate Speed
Main shaft: 546r.p.m.
Feeding
screw:610r.p.m
Main shaft:476r.p.m.
Feeding
screw:610r.p.m
Main shaft:476r.p.m.
Feeding screw:610r.p.m
Main Shaft:476r.p.m.
Feeding screw:610r.p.m





Volume of Air Suction
Air Quantity:
40m3/min
Static Pressure:
:100-200mm H2O
Diameter of
aspiration pipe is 203mm(φ8″)
Note: Values measured with no load
Air Quantity:
50m3/min
Static Pressure:
:100-200mmH2O
Diameter of
aspiration pipe is 240mm(φ8″)Note: Values measured with no load
Air Quantity: 60m3/min
Static Pressure:
100-200mmH2O
Diameter of
aspiration pipe is 240mm(φ8″)
Note:Values measured with no load
Air Quantity:
60-70m3/min
Static Pressure:
100-200mmH2O
Diameter of aspiration pipe is 280mm(φ8″)
Note: Values measured with no load
