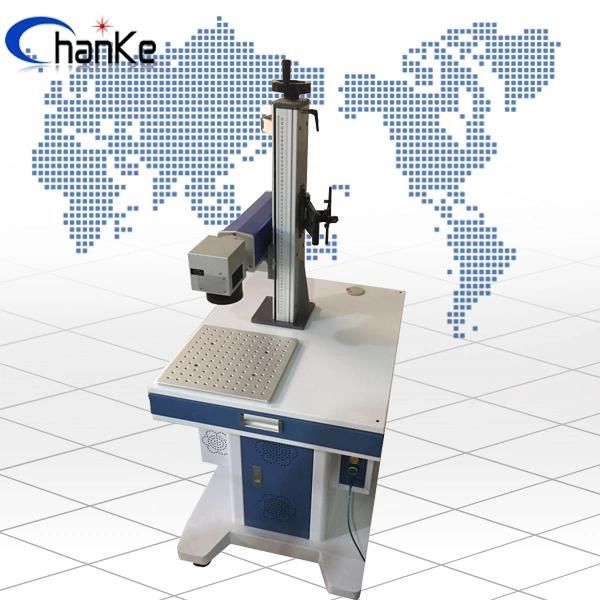

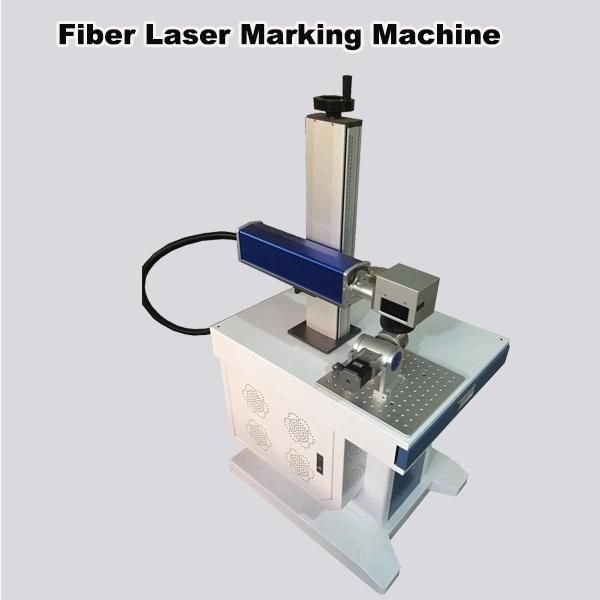

20W Fiber Laser Marking Machine/Fiber Laser Coding/Engraving Machine

• Application：Leather Industry, Domestic, Carpentry, Printing & Packaging, Construction Industry, Molds & Dies, Crafts Industr, Advertising Industry
• Cooling System：Water Cooling
• Technical Class：Continuous Wave Laser
• Automatic Grade：Manual
• Applicable Material：Metal and Nonmetal
• Type：Flat-Plate

=== Base Info ===

• Model NO.：CK200
• Laser Classification：Gaseous Laser
• Engraving Method：Vector Engraving
• Usage：Metal
• Certification：SGS, ISO 9001
• Laser Type：Fiber Laser
• Control：Automatic
• Condition：New
• Engraving Machine Type：Laser
• Power：10W,20W,30W
• Fiber Laser Marking Machine Scan Area：70*70mm,110*110mm,200X200mm
• Fiber Laser Marking Machinemarking Speed：0~7000mm,S
• Working Size：110X110mm or 200X200mm
• Transport Package：Plywood Packing
• Specification：CE, ISO
• Trademark：chanke
• Origin：China
• HS Code：84561009
• Production Capacity：10-50 Sets,Month

=== Description ===

Model
 CK-10W mini fiber laser marking machine
Average laser output power
10W
Laser wavelength
1064nm
Power adjustment range
10-100%
Repetition frequency
20-100KHz
Output beam quality
  <1.5M²
Marking Linear deep
 ≤1.2mmMin.
Highlight spot
0.005mm
Min. character size high
0.15mm
Repetition accuracy
±0.001mm
Max. Linear marking speed
9000mm/s
Marking depth:
0.01mm-0.03mm(according the materials)
Marking format:
Graphics, character, bar code, two-dimensional code
Software
WINXP +ezcad
Standard marking area
 100mm×100mm
Marking area option
50mm×50mm
150mm×150mm  200mm×200mm
Power consumed
≤160W
Electrical demand
220V±10%/50Hz/4A
Cooling Mode
Air-cooled
Control interface
USB
Laser module life
100000 hours
Resonance mirror
high speed
Usage environmentClean
no shaking

Application materials
The fiber laser machine can marking metal(including the rare metals) such as steel, titanium,copperetc,and some of nonmetal such as nylon,light button, ABS, PVC,PES
Application area

The area with the higher requirement foor depth,smoothness and degree of thickness such as clock industry,mould industry,bitmap marking and so on.the other area such as electroni compnent,eletrical prducts.IT industry,auto-partas,metal tools,accurate instruments,present and adornment,medicalInstrument,high or low voltage electric equipment and so on.

 FAQS:

 1. How about the documents after shipment?

After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

2, How long is the delivery time?

For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.

3, Do You Arrange Shipment For The Machines?

Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.

4, How is the packing?

Water-proof plastic film package with foam protection in each cornerSolid Seaworthy Wood Box Package with Steel BeltSave space as much as possible for container loading
Professional Service
From producing in our factory to shipping the goods directly to your port
 or company, we supply all-in-one service for our customers. With the rich
 experience of dealing with shipping issue and custom clearance, we can
make the most economical delivery plan for you and ensure the quick
leading time. No matter your quantity is our MOQ or very big, we take
 each customer as the only one.


We aslo has 20w/30w fiber laser marking machine, power is more bigger the marking thickness and colour more better.

If you want to marking on the ring circle a, then add one rotary is ok.
