Sweeper Spool Valve Orbital Motor OMR/Bmr Series

Changzhou Kaiguan Packaging & Technology Co., Ltd. / 2022-06-27

Sweeper Spool Valve Orbital Motor OMR/Bmr Series

  • Certification:CE
  • Excitation Mode:Compound
  • Power Rating:500W
  • Casing Protection:Closed Type
  • Number of Poles:6
  • Speed:Low Speed

=== Base Info ===

  • Model NO.:BMR
  • Type:Gear Type
  • Transport Package:Carton Packing, and Finally with Pallet or Wooden
  • Specification:BMR-100
  • Trademark:HANJIU
  • Origin:China
  • HS Code:8412291000
  • Production Capacity:500000 Pieces

=== Description ===
1.The output shafts, with teh deep groove ball bearing, can bear certain axial force and radial force.2.With the axial oil distribution structure, it is of smaller size and less weight.3.With two inner check valves, no drain connection.4.With cycoid group with teh roller, it has a small friction and high mechanical effciency.





Main Specification:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
TypeBMR
BMRS
36
BMR
BMRS
50
BMR
BMRS
80
BMR
BMRS
100
BMR
BMRS
125
BMR
BMRS
160
BMR
BMRS
200
BMR
BMRS
250
BMR
BMRS
315
BMR
BMRS
375

Geometric displacement

(cm3 /rev.)

3651.781.5102127.2157.2194.5253.3317.5381.4
Max. speed (rpm)cont.1085960750600475378310240190155
int.12201150940750600475385300240190
Max. torque (N·m)cont.72100195240300360360390390365
int.83126220280340430440490535495
peak105165270320370460560640650680
Max. output (kW)cont.8.59.512.51312.512.510765
int.9.811.2151514.514139.598
Max. pressure drop (MPa)cont.141417.517.517.516.5131197
int.16.517.52020202017.5151310
peak22.522.522.522.522.522.522.52017.515
Max. flow (L/min)cont.40506060606060606060
int.45607575757575757575
Weight (kg)6.56.76.977.37.688.599.5

Technical data for BMR with 31.75 and 32 shaft:

TypeBMR
BMRS
36
BMR
BMRS
50
BMR
BMRS
80
BMR
BMRS
100
BMR
BMRS
125
BMR
BMRS
160
BMR
BMRS
200
BMR
BMRS
250
BMR
BMRS
315
BMR
BMRS
375

Geometric displacement

(cm3 /rev.)

3651.781.5102127.2157.2194.5253.3317.5381.4
Max. speed (rpm)cont.1250960750600475378310240190155
int.15201150940750600475385300240190
Max. torque (N·m)cont.72100195240300380450540550580
int.83126220280340430500610690690
peak105165270320370460560710840830
Max. output (kW)cont.8.59.512.51312.512.5111097.5
int.9.811.2151514.5141312109
Max. pressure drop (MPa)cont.141417.517.517.517.517.517.513.511.5
int.16.517.520202020202017.515
peak22.522.522.522.522.522.522.522.52117.5
Max. flow (L/min)cont.45506060606060606060
int.55607575757575757575
Weight (kg) 6.56.76.977.37.688.599.5
* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

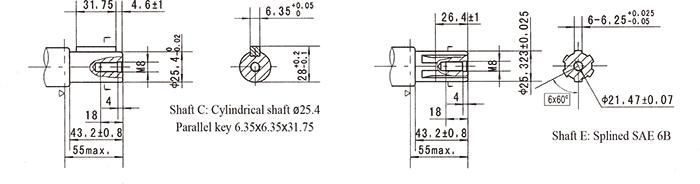

BMR Dimension and Mounting Data





Sweeper Spool Valve Orbital Motor OMR/Bmr Series


Sweeper Spool Valve Orbital Motor OMR/Bmr Series

Sweeper Spool Valve Orbital Motor OMR/Bmr Series


Sweeper Spool Valve Orbital Motor OMR/Bmr Series


Sweeper Spool Valve Orbital Motor OMR/Bmr Series


Sweeper Spool Valve Orbital Motor OMR/Bmr Series


APPLICATION:

Shijiazhuang HanJiu technology co., LTD., is specialized in the production of BM series cycloid hydraulic motor, the BZZ redirector enterprise, my factory has dozens of high-quality, professional engineering and technical personnel, and more than in 2010, has introduced the most advanced production equipment, is in northern China's largest factories, production of more than 300000 units a year.
My factory specializes in designing and producing the motors and steering gear of any type, from large to small, from low to high, and so on. And can replace danfoss, Eaton, M+S series models. Products are widely used in engineering machinery, mining machinery, metallurgical machinery, petroleum machinery, agricultural machinery, injection molding machinery, fishery machinery and other fields.
My factory take the good faith first, quality first for the purpose, from the employee on-boarding, raw materials into the factory, from parts processing, assembly proposal until products, has a relatively perfect system of product quality. And through CE certification. Our factory is dedicated to the establishment of an internationally renowned brand, looking forward to the long-term cooperation with more demand of hydraulic products.




Hanjiu: Hydraulic gear pump for any hydraulic system, our company uses high-end machine tools, excellence, the most humane service, manufacture and service the world, with good products and services to serve the world, welcome advice.
