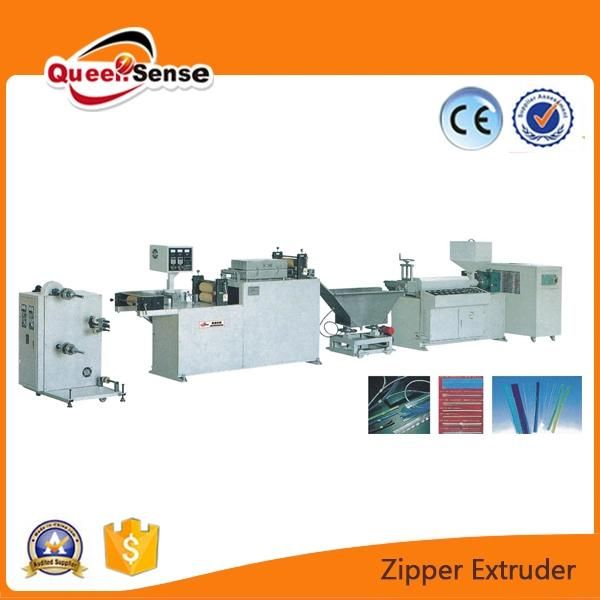

Plastic Zipper Extruder Machine

=== Base Info ===

=== Description ===

Basic Info.

Model NO. ZIP-45 Engagement System Full Intermeshing Screw Channel Structure Non Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Working Horizontal Zipper One Color Optional Max.Extrusion Output 30-50 Transport Package Seaworthy Specification CE Trademark QUEENSENSE Origin China HS Code 84773000 Production Capacity 15kg/H

Product Description

This machine is suitable for LDPE and PP, the zipper strip widely used for packing bag sealing and jointing of food, clothes and textile industrial products.

Performance and Characteristics:

1. Cylinder screws of extruding machine are all treated and processed with optimization with the best hardness and corrosion resistance. 2. Double rolling as rolling equipment adopts torque motor to keep suitable tension. 3. Neat rolling and convenient roll changing.

Main Technical Variables:

Model	ZIP-45
Draw ration of screw	28:1
Tran sducer motor	5.5kw
Power of assistant machine	0.75kw
Heater	10kw
Cooling	5HP
Power	15kw
Overall dimension(l x w x h)	6800 x 1200 x 1800mm
Voltage	50HZ-60HZ 380v
Resin applicable	LDPE-PP
Capacity	10-50(Cycle/min)
Extrusion widht	3-50mm
Thickness of film	0.1-0.3mm
Film annulus diameter	φ500mm
Diameter Of screw	φ45m
