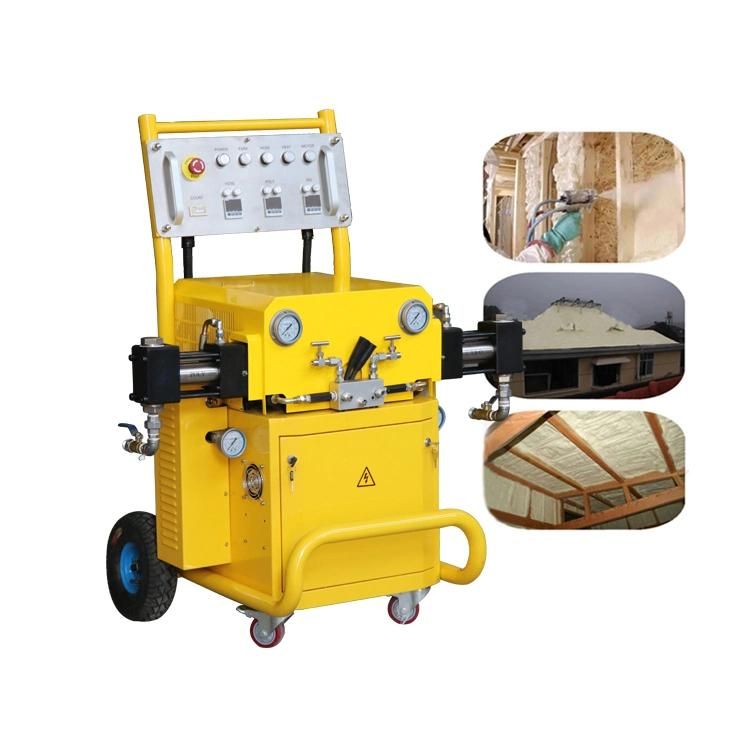

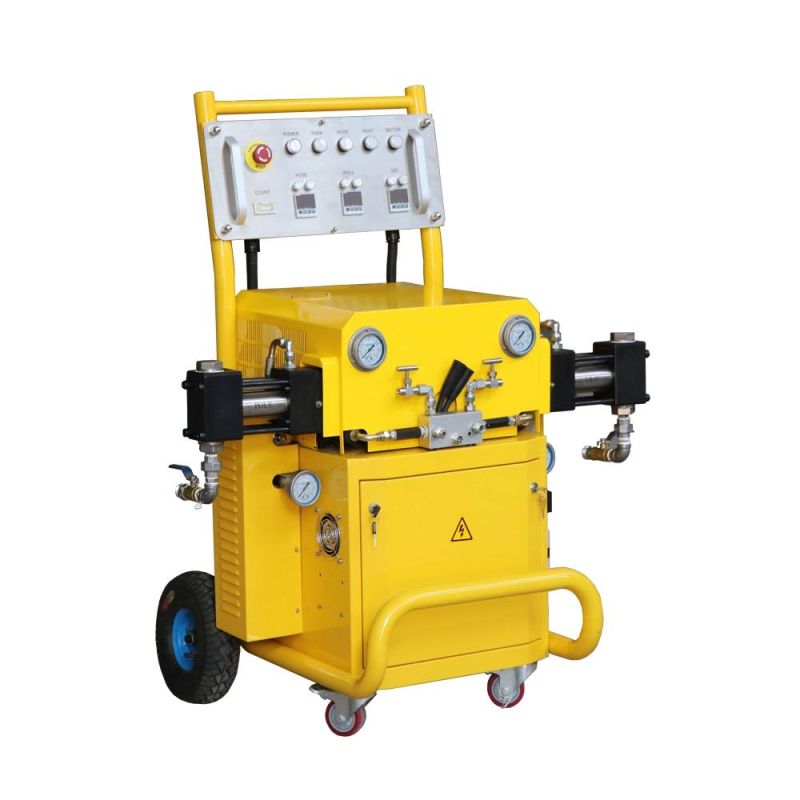

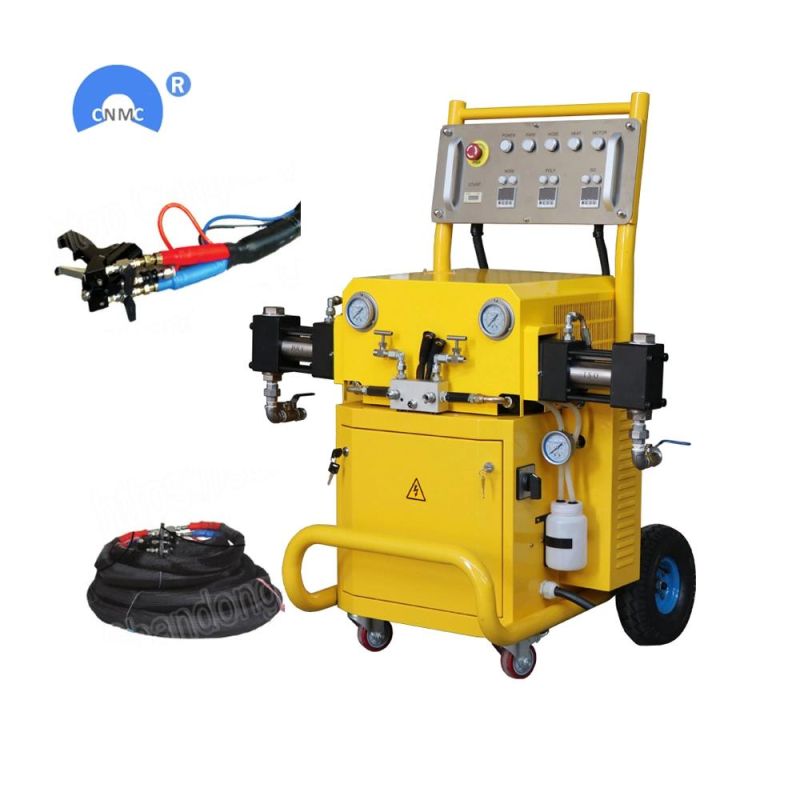

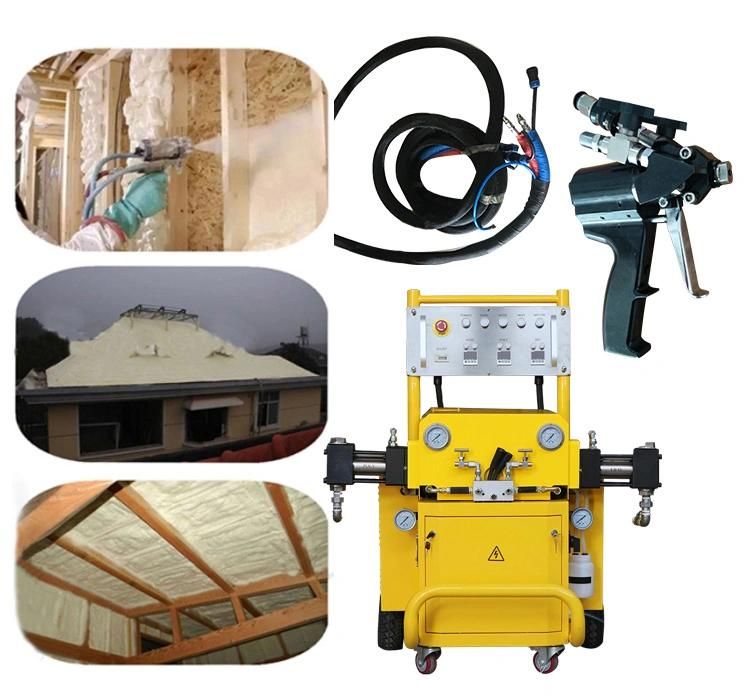

Hydraulic Driven Foam Equipment Waterproofing Polyurethane Foam Spray Foam Machine

=== Base Info ===

=== Description ===

Basic Info.

Model NO. CNMC-300 Computerized Computerized Certification CE, ISO9001:2008 Total Power 15000W Heater Power 6000W*2 Maximum Output 14 Kg / Min (22 Lb / Min) Working Pressure 20 MPa (200 Bar) Heated Hose 49.2 FT (15 M) Voltage 230V 1-pH / 400V 3-pH Driven Mode Hydraulic Heating Hose Power 1000 W/15 Meters Max. Hose Support 90 Meter Data Ratio of Raw Materials 1: 1 (Fixed) Transport Package Wooden Case Specification 7.5 kw, 17 Mpa Trademark CNMC Origin Shandong, China HS Code 8477800000 Production Capacity 300 Set/Month

Product Description

Pneumatic polyurethane foam spray machine/pu foam spray machine/polyurethane foam machine

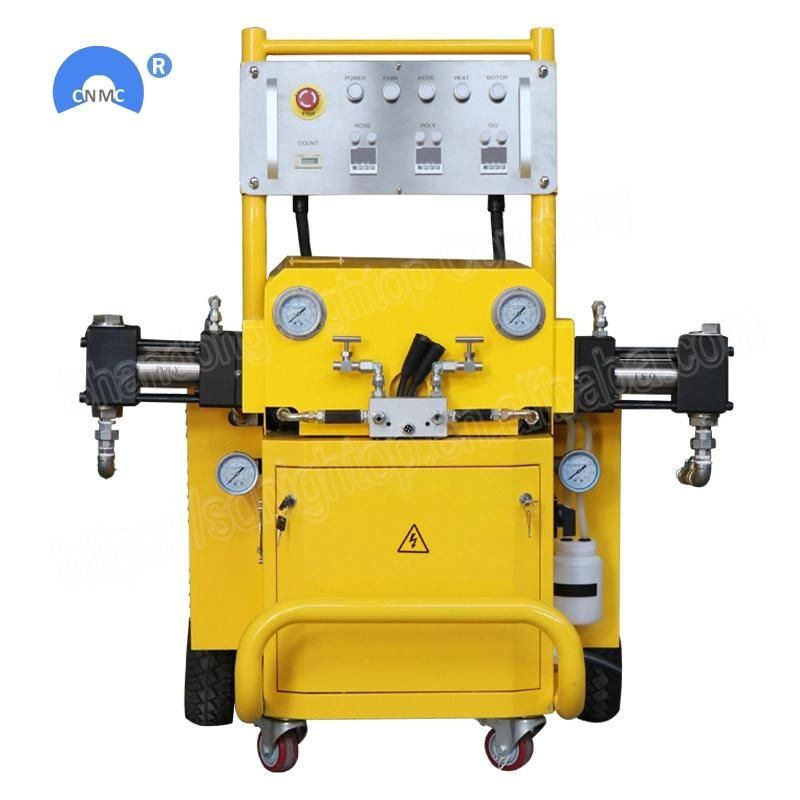

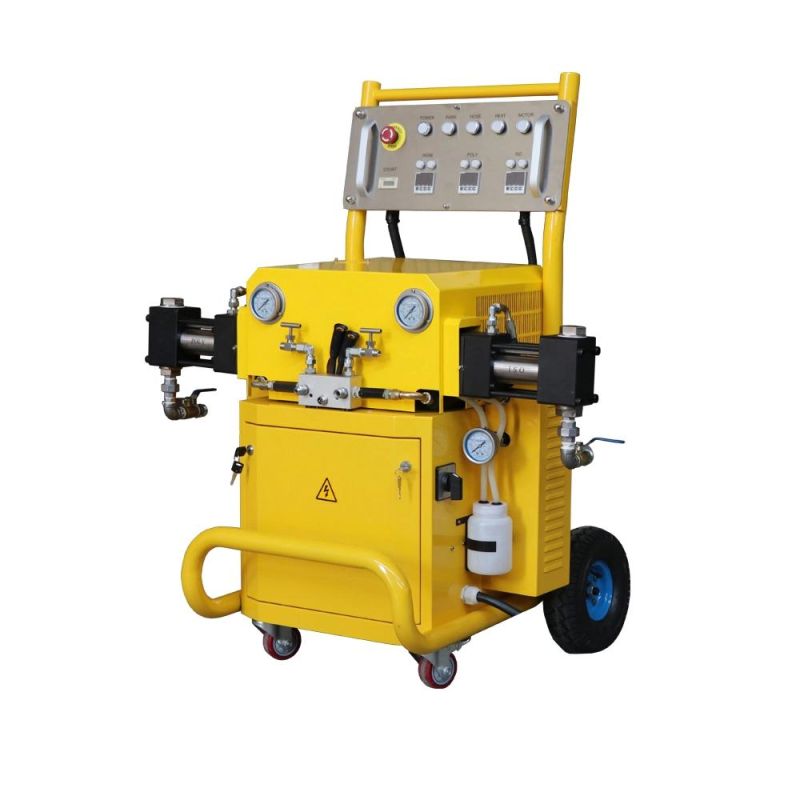

The new CNMC-300 air driven proportioning unit is of an advanced and compact design.It is specially amed at the applications of polyurethane foamin place.Its particular configuration facilities easy access to all its components,simiplifies the control functions ad signficantly reduces the maintenance work.

• Hydraulic driven mode
• 20Mpa working pressure CNMC-300 Polyurethane spray foam machine make the polyurethane fogging well,more shapely.
• Easy to move



Project	CNMC-300 project polyurethane spraying machine	CNMC-E2
Voltage	230V 1-ph / 400V 3-ph/230V 3-ph	230V 1-ph / 400V 3-ph/230V 3-ph
Driven mode	Hydraulic	Pneumatic
Maximum output	24 kg / min	12kg/min
Working pressure	20 MPa (200 bar)	17Mpa
Heater power	6kw each side	3kw each side
Heated hose	49.2 ft (15 m)	49.2 ft (15 m)
Data ratio of raw materials	1: 1 (fixed)	1: 1 (fixed)
Raw material viscosity range	200-1000CPS (at working temperature)	200-1000CPS (at working temperature)
Maximum Fluid Temperature	88 ° C (190 ° F)	88 ° C (190 ° F)
Heating hose power	1000W / 15m	1000W / 15m
Total power	15KW	7.5kw
Max. Hose support	120 meters	90 meter
Machine size	870mm * 700mm * 1150mm	800mm*700mm*1150mm
Proportion Fixed Mainframe	1 set	1 set
Self-cleaning spray gun	1 set	1set
Gross weight	100KG	150 kg
Feed pump	2 sets	2 sets

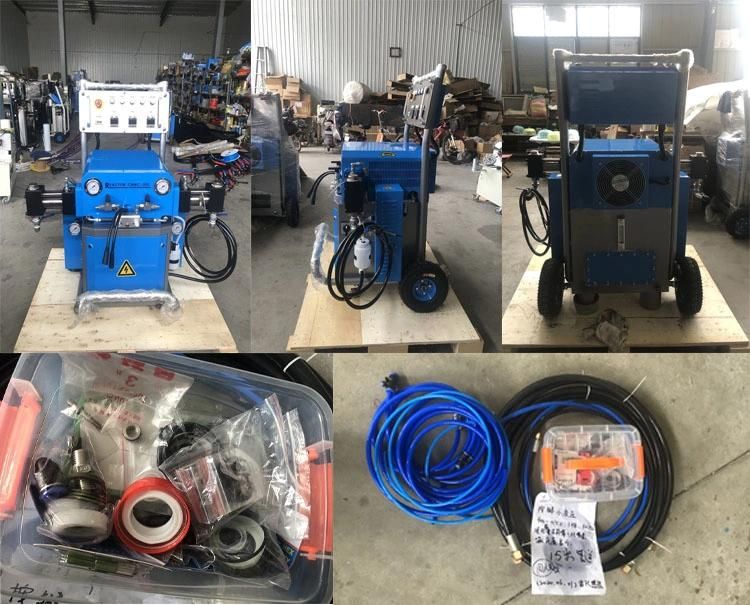

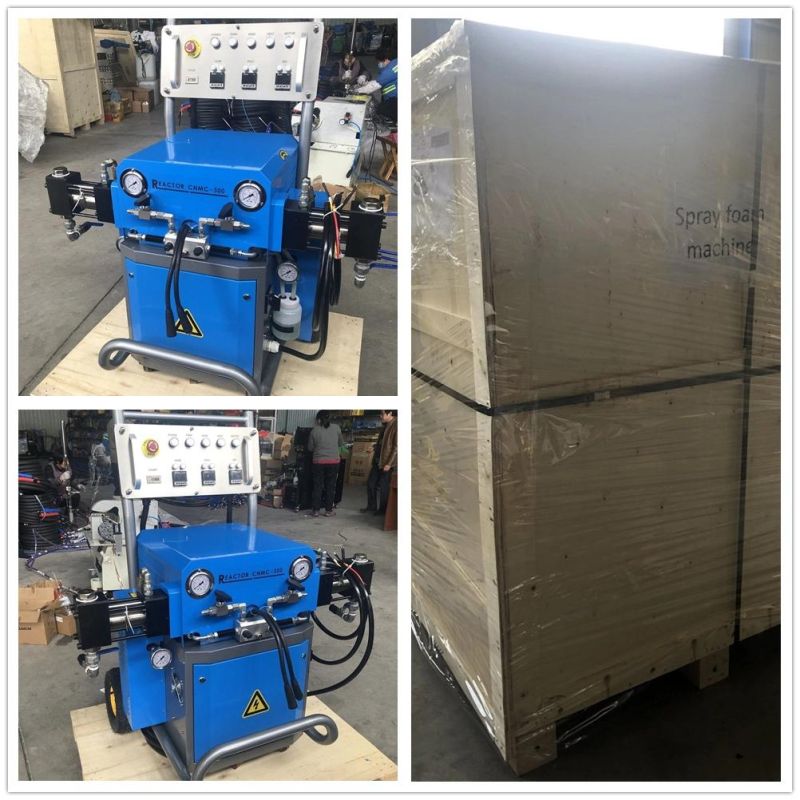

Wooden case
Packing size :1070*860*1640mm
