Honey Moisture Removing Machine Good Quality Honey Extractor Processing Equipment

• Condition：New
• Customized：Customized
• Voltage：380V
• Composition：Filtration and Concentration Machine
• Processing Material：Honey
• Process：Concentrate

=== Base Info ===

• Model NO.：FM-600
• Transport Package：Standard Export Wooden Box Packaging
• Trademark：1880mm*780mm*1720mm
• Origin：Henan, China
• Production Capacity：100-200kg,H

=== Description ===

Basic Info.

Model NO. FM-600 Transport Package Standard Export Wooden Box Packaging Trademark 1880mm*780mm*1720mm Origin Henan, China Production Capacity 100-200kg/H

Product Description

Honey Moisture Removing Machine Good Quality Honey Extractor Processing Equipment
Introduction of honey processing machine:

Currently, honey processing main used mechanical filters and low-temperature vacuum concentrated to remove impurities and excess water, Get a higher degree of vacuum systems and the reasonable structure of the low temperature evaporation device is the key to the processing technology of bee products. This equipment has fully realized honey enrichment process special requirements, and to meet the aspirations of bee products processing enterprises.

Process of honey processing machine:

The original honey  → Coarse filtration → Agitation, preheating → Fine filtration → Low temperature, concentrated → Filling

Principle of honey processing machine:

By the theory that under high Vacuum condition,boiling point of water will become low and then water in honey can evaporate rapidly and the to get high concentration honey,this set can melt honey crystals, remove dust inside, sterilization, and ext to guarantee quality of honey.





 Features of honey processing machine:

1.This set of Equipment are made of 304 stainless steel, easy to operate, reliable, efficient, vacuum suction honey.
2.They can achieve high vacuum and low concentration temperature is ideal for honey processing equipment.
3.Apparatus comprising: a preheating tank, filter, concentrate tank, a condenser, a vacuum pump.
4.The honey thickener machine can reach high vacuity and lower thickening temperature.
After concentrating the materials will not change color, not change flavor, the quality of materials after concentrating will be very good.
5.Good designed of the structure make the machine small, low noise, easy to operate.

Parameters of honey processing machine:


Model	FM-600	FM-400
Production capacity	1.2-1.5t/8h	0.4-0.5t/8h
Machine dimension	1750*600*1660mm	1600*500*1555mm
Tank diameter	600mm	400mm
Tank height	600mm	600mm
The overall volume	140L	70L
Effective volume	120L	60L
Power	16KW	14KW

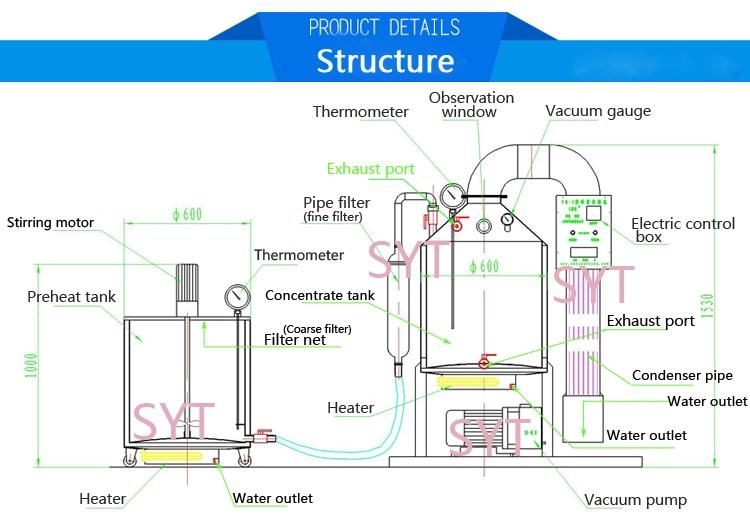

Structural drawing of honey processing machine:



If you want to know more about honey processing machine, please contact me.

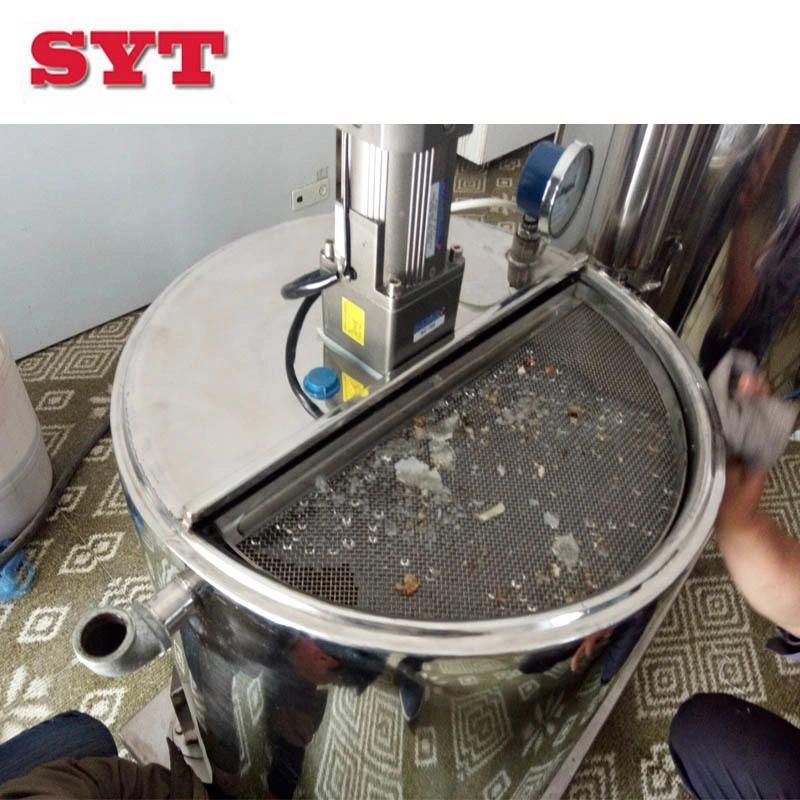

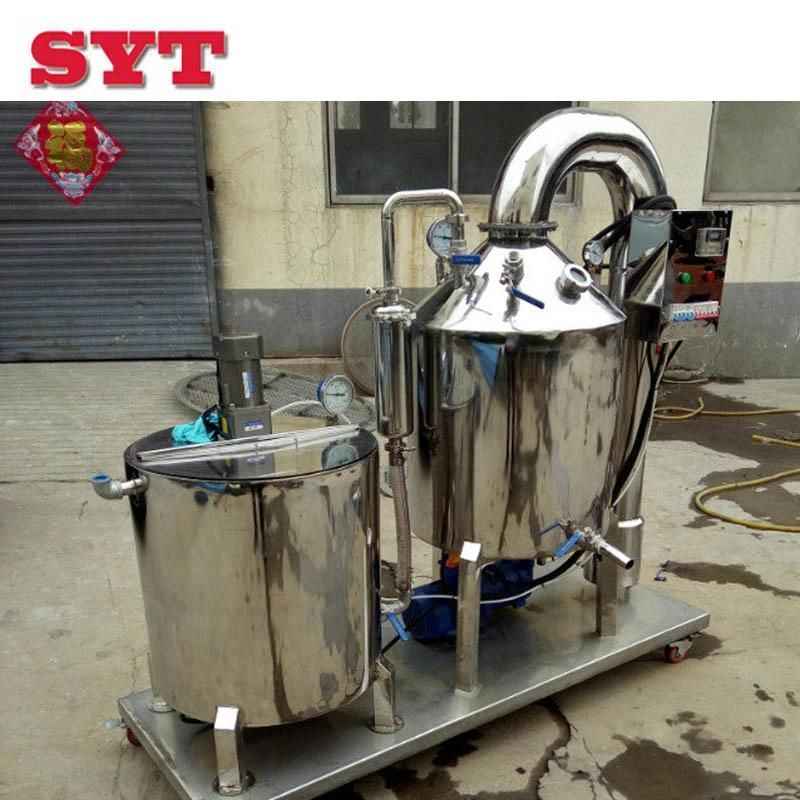

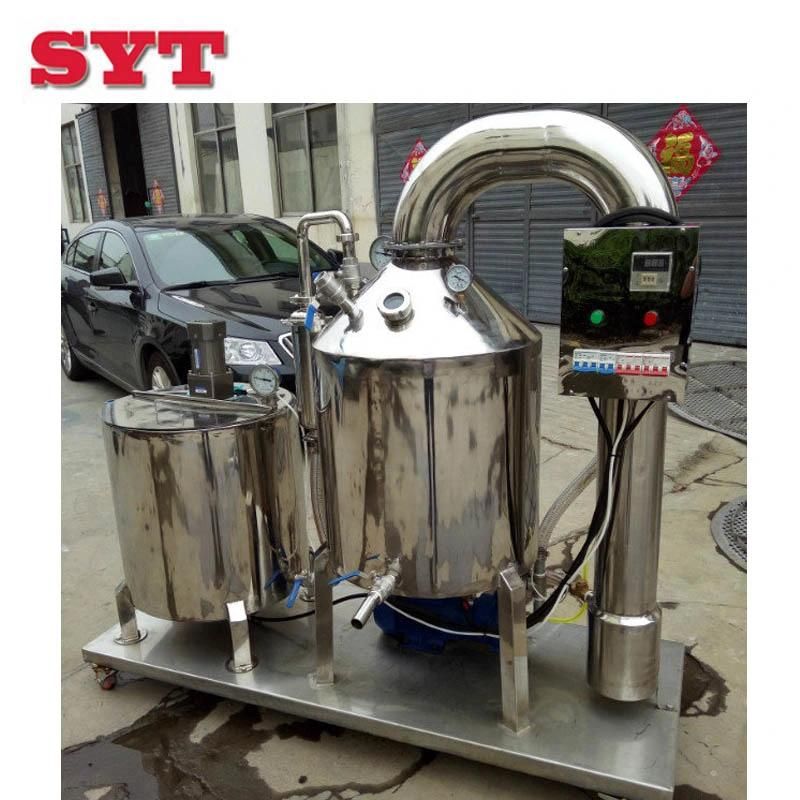

Actual pictures of honey processing machine:
