Wanlong Diamond Cutting Segments for Granite/Marble/Stone

• Type：Natural Diamond
• Surface Finishing：Ti-coated
• Blade Material：Diamond
• Application：Granite, Basalt, Sandstone, Marble Ect.
• Use：Saw Blade, Grinding Wheel, Drill Bit Ect.
• Segment Bond：Soft, Medium, Hard

=== Base Info ===

• Model NO.：stone segment
• Advantage：High Performance
• Sharp：T, R, Fan, Short, Sandwich
• Manufacturing Process：Sintered
• Daimoand Type：Artificial Polvcrystalline Diamond
• Surface Finish：Blasting
• Material：Metal Powder,Metal Powder
• Segment Height：13,15,20,25,30mm
• Transport Package：Cartons, Woodcase and Others
• Specification：250-3500mm
• Trademark：WL
• Origin：Quanzhou
• Production Capacity：300000PCS,Day

=== Description ===

Basic Info.

Model NO. stone segment Advantage High Performance Sharp T, R, Fan, Short, Sandwich Manufacturing Process Sintered Daimoand Type Artificial Polvcrystalline Diamond Surface Finish Blasting Material Metal Powder,Metal Powder Segment Height 13/15/20/25/30mm Transport Package Cartons, Woodcase and Others Specification 250-3500mm Trademark WL Origin Quanzhou Production Capacity 300000PCS/Day

Product Description

Block Cutting Segment And Blade For Granite

PRODUCT FEATURES:

1 The blade has good sharpness and high efficiency at the process of cutting,meanwhile,it has a long lifespan
2 Good cutting result:smooth cutting,flat surface and even size

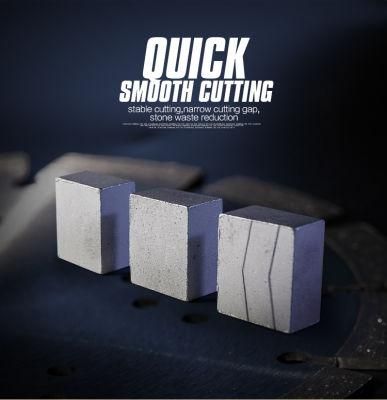

3 Stable cutting,narrow cutting gap,stone waste reduction 4 M-Shape segment is easy for diamond opening

WANLONG Diamond Tools Co., Ltd looks forward to establishing a mutually beneficial relationship with all of you.

Diameter (mm)	Width (mm)	Height (mm)	Length (mm)	Number of segment (pcs)	Inner hole of core (mm)	Thickness of   core (mm)
200	3.2	10,12,15	40	14	50,60	1.8
250	3.2	10,12,15	40	17	50,60	2.2
300	3.2	10,12,15	40	21	50,60	2.2
350	3.2	10,12,15,20	40	24	50,60	2.2
400	3.6	10,12,15,20	40	28	50,60	2.6
450	4	10,12,15,20	40	32	50,60	3
500	4	10,12,15,20	40	36	50,60	3
550	4.6	10,12,15,20	40	40	50,60	3.6
600	4.6	10,12,15,20	40	42	50,60	3.6
700	5	10,12,15,20	40	52	50,60	4
750	5.5	10,12,15,20	40	56	50,60	4.5
800	5.5	10,12,15,20	40	46	50,60	4.5
850	5.5	10,12,15,20	40	50	50,60	4.5



Diameter(mm)	Steel core(mm)	Head size(mm)	No.	Shape	Application
900	5.0	24×7.0/6.2×13(15,20)	64	Z3T/Z3T-M (conical)	Granite
1000	5.0	24×7.0/6.2×13(15,20)	70	Z3T/Z3T-M (conical)	Granite
1200	5.5	24×7.4/6.6×13(15,20)	80	Z3TZ3T-M (conical)	Granite
1400	6.0	24×8.0/7.2×13(15,20)	92	Z3T/Z3T-M (conical)	Granite
1400	6.5	24×8.4/7.6×13(15,20)	92	Z3T/Z3T-M (conical)	Granite
1600	7.2	24×9.2/8.4×13(15,20)	108	Z3T/Z3T-M (conical)	Granite
1800	7.5	24×10/9.2×13(15,20)	120	Z3T/Z3T-M (conical)	Granite
2000	8.0	24×11/10×15(20)	128	Z3T/Z3T-M (conical)	Granite
2200	9.0	24×11/10×15(20)	132	Z3T/Z3T-M (conical)	Granite
2500	9.0	24×12/11×20(30)	140	Z3T/Z3T-M (conical)	Granite
2700	9.0	24×12/11×20(30)	140	Z3T/Z3T-M (conical)	Granite
3000	9.3	24×13/12×20(30)	160	Z3T/Z3T-M (conical)	Granite
3500	9.5	24×13.5/12.5×20(30)	180	Z3T/Z3T-M (conical)	Granite

Other specifications are available upon request.

For different blade and stones, customized segment size and numbers will be suggested and Wanlong can supply different specifications and diameters as per customer's requirement.
