Soft Serve Ice Cream and Frozen Yogurt Machine (6240A)

• Certification：CE, UL, ISO9001
• Power Source：Electric
• Process：Frozen and Chilled
• Automatic Grade：Automatic
• Application：Ice Cream, Frozen Yogurt
• Customized：Non-Customized

=== Base Info ===

• Model NO.：6240A(table)
• Voltage：210-230V,50Hz
• Power：2.6kw
• Capacity：40L,Hour
• Material：Stainless Steel
• Transport Package：Carton with Pallet
• Specification：CE; ISO9001: 2000
• Trademark：SPACE
• Origin：Zhejiang, China (Mainland)
• HS Code：8418699020
• Production Capacity：10000 Sets,Month

=== Description ===
MODELPOWERVOLTAGEN.G.(KG)W.G.(KG)DIMENSION
(NET)DIMENSION
(PACKING)6240A(table)2.6 KW210-230V/50HZ170 190654mmx554x1065mm800mmx645mmx1250mm




Offer
Offer all popular soft serve variations from low or non-fat ice cream to custards, yogurt and sorbet.



Feature:
1. Table model
2. Air cooling
3. Twin flavour+one mix
4. Air pump freezer---Gear pumps ensure a high overrun ice cream
5. Stainless Steel Panels
6. LED disaply
7. Automatic control





Freezing cylinder
Two, 1.8 Liter


Mix hopper
Two, 12.5 Liter
Separate hopper refrigeration(Pre-cooling)maintains mix below 4.4 ºC.


Microprocessor controls
Microprocessor regulates refrigeration by measuring product viscosity to maintain consistent quality.


Mix low light
The mix low light turns"on" to alert operator to add mix, preventing cylinder over freezing.


Standby
Maintains product temperature in the mix hoppers and freezing cylinders below 4.4 ºC during long no-use periods.


Counter
Records number of dispenses per day and total number of dispenses.


Agitator in the hopper
Mixture has better liquidity, the temperature of the Mix to be more uniform.


Output
40 Liter/Hour(At 4 ºC liquid &24 ºC Ambient)


Electrical requirements
One dedicated electrical connection is required.
Make voltage steady when machine is ON.


Main motor
One, 1.5HP


Refrigeration system
One compressors: 5039 BTU/hr. R404A
Separate hopper refrigeration(pre-cooling): One compressor: 400BTU/hr. R134A
(BTU may vary depending on compressor used. )


Air cooled
Minimum clearance of 152 mm on both sides is to achieve optimum performance.
Refer to the local situation to regulate the parameters, on basic of the data label. Specificaitons of the improvements are subjuct to change without notice.


Options
Local specific plugs of power supply wire
Cup cone dispenser
Power supply:208-230V/60HZ

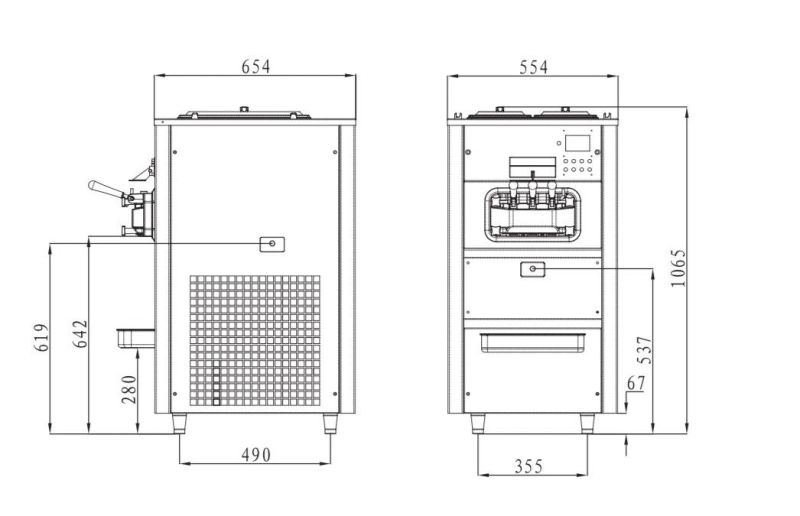

The contour dimensional drawing
